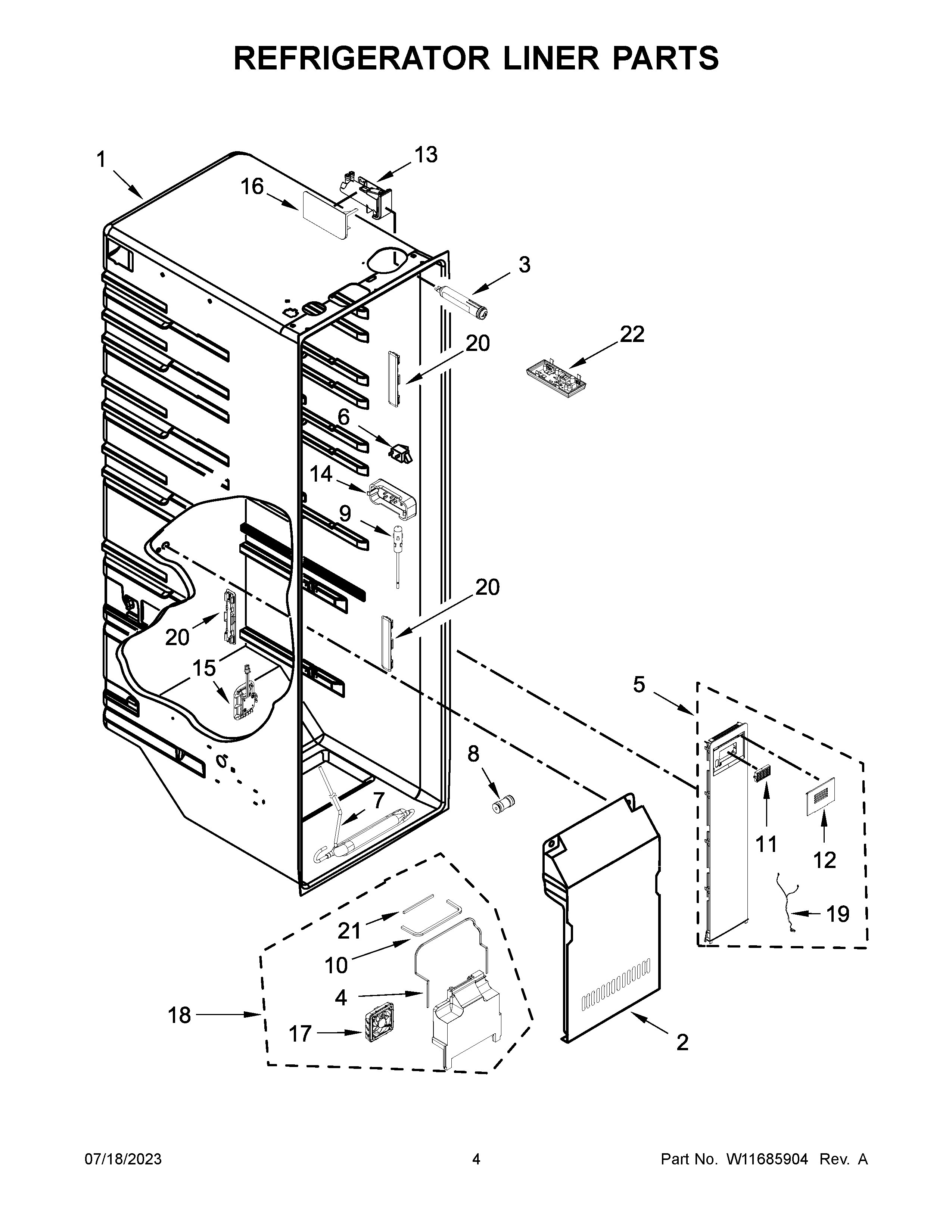

KRSC700HPS06 03 – REFRIGERATOR LINER PARTS

KRSC700HPS06 03 – REFRIGERATOR LINER PARTS

Written by

in

KRSC700HPS06 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10387382 Whirlpool Refrigerator Evaporator Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W11702233 Whirlpool Gasket
5TOWER, AIR
6W11123941 Whirlpool Refrigerator Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9THERMISTOR
10W11676537 Whirlpool Gasket
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12W10341548 Whirlpool Refrigerator Support
13WPW10394053 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15ASSEMBLY, LED LIGHT MODULE
16W11501035 Whirlpool Refrigerator Filter Cover
17FAN-SCROLL
18W11608966 Whirlpool Fan Scroll
19W10777986 Whirlpool Wire Jumper
20W10876365 Whirlpool Refrigerator Light
21W11676538 Whirlpool Gasket
22W11226500 Whirlpool LED Light
