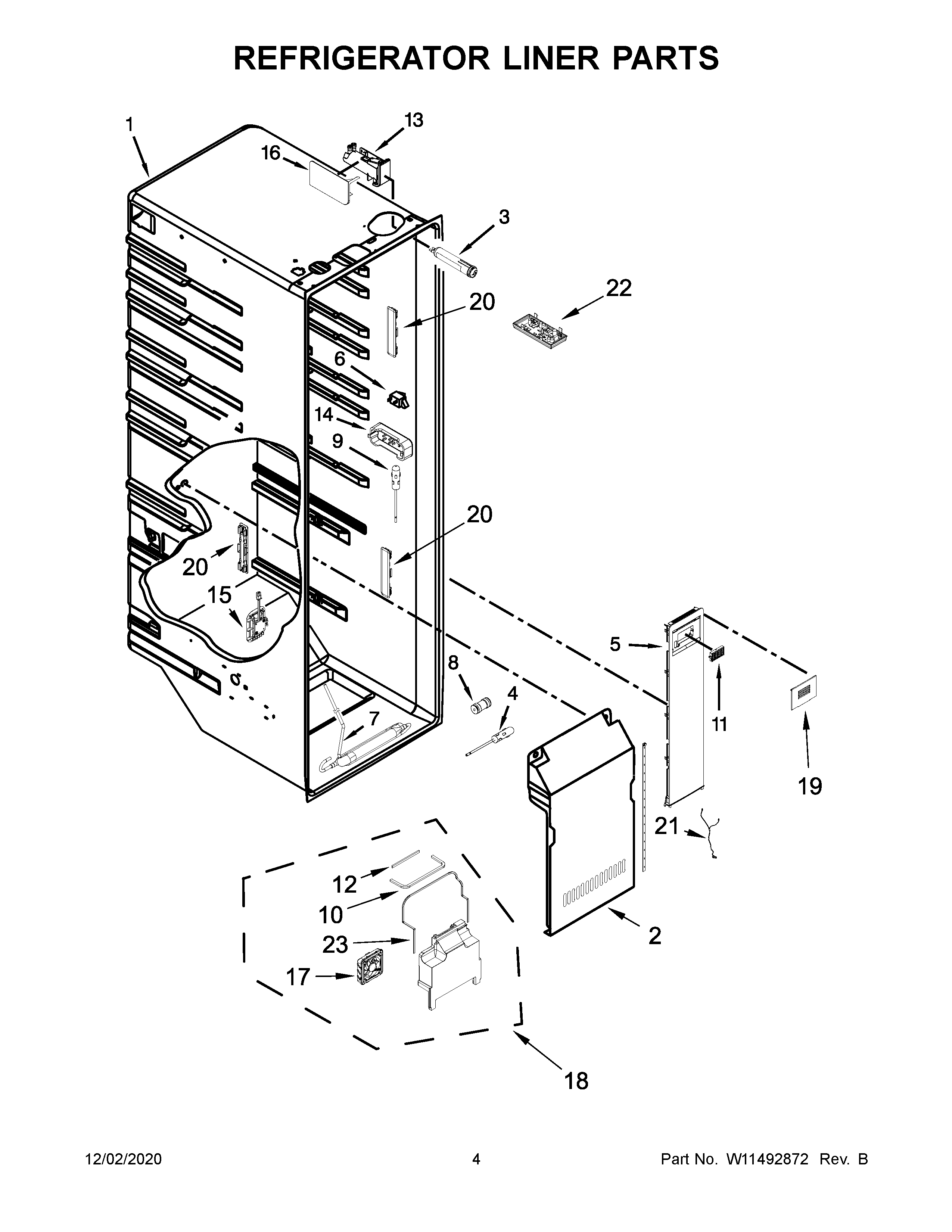

KRSC703HPS01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11504912 Whirlpool Refrigerator Evaporator Cover
3	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4	W10316760 Whirlpool Thermistor Kit
5	W11565237 Whirlpool Air Tower
6	W11384469 Whirlpool Door Switch
7	W11204869 Whirlpool Refrigerator Reservoir
8	WP2300868 Whirlpool Refrigerator Fitting
9	WPW10384183 Whirlpool Thermistor
10	W11676537 Whirlpool Gasket
11	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12	W11573592 Whirlpool Refrigerator Gasket
13	WPW10394053 Whirlpool Refrigerator Housing
14	WPW10425252 Whirlpool Refrigerator Cover
15	MODULE
16	W11501035 Whirlpool Refrigerator Filter Cover
17	FAN-SCROLL
18	W11504913 Whirlpool Refrigerator Scroll Fan
19	W10341548 Whirlpool Refrigerator Support
20	W10876365 Whirlpool Refrigerator Light
21	W10777986 Whirlpool Wire Jumper
22	W11226500 Whirlpool LED Light
23	W11702233 Whirlpool Gasket
