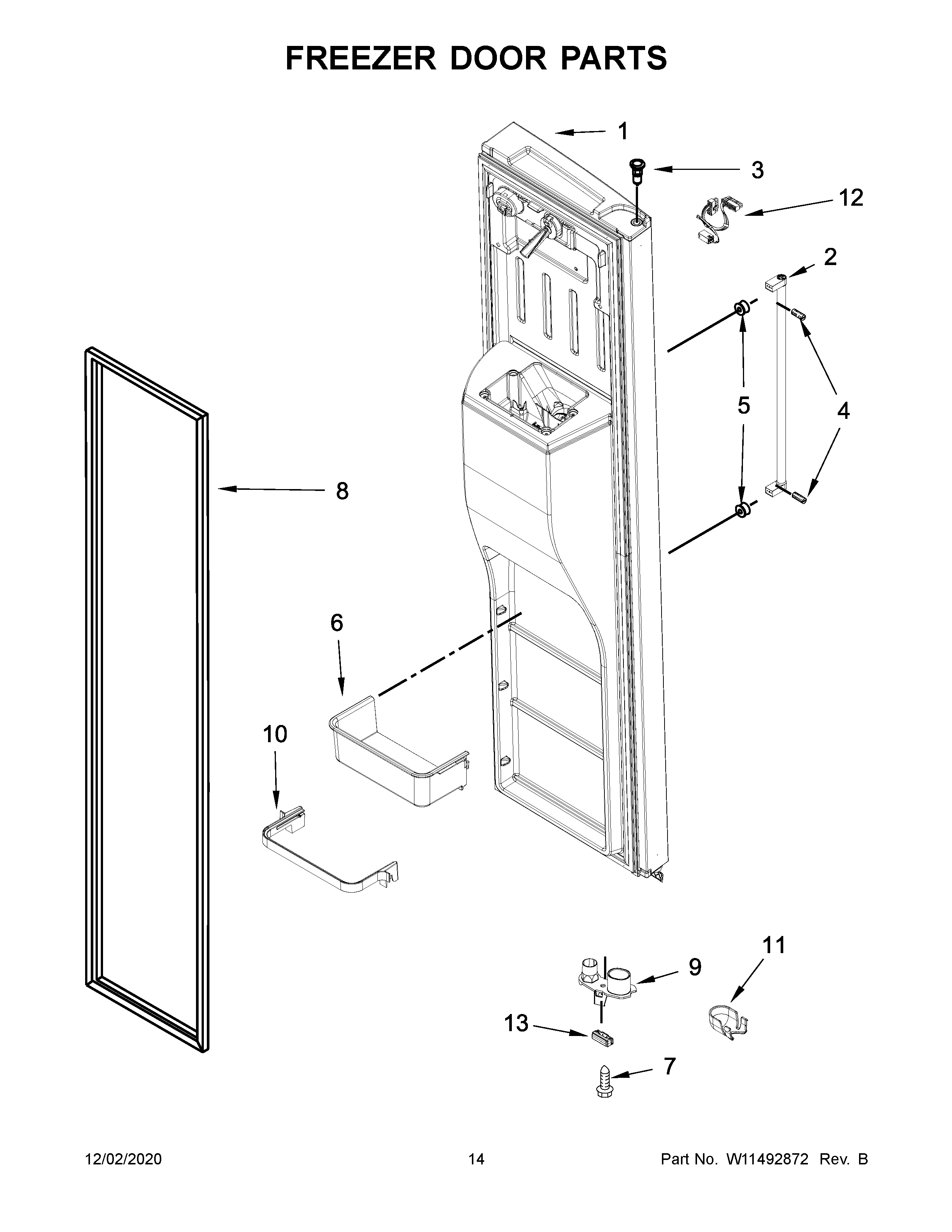

KRSC703HPS01 08 – FREEZER DOOR PARTS

KRSC703HPS01 08 – FREEZER DOOR PARTS

Written by

in

KRSC703HPS01 08 – FREEZER DOOR PARTS

Products

PositionProduct
1AW11465903 Whirlpool Refrigerator Door Assembly
1W11465905 Whirlpool Refrigerator Door FIP
2W11340150 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W10917698 Whirlpool Dishwasher Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10434529 Whirlpool Refrigerator Bin
7SCREW
8GASKET, DOOR (BLACK)
8AGASKET-FIP (AH)
9W11607100 Whirlpool Refrigerator Thimble Cam
9AWPW10257206 Whirlpool Refrigerator Door Cam
10WPW10494336 Whirlpool Refrigerator Bin Frame
11W10323148 Whirlpool Refrigerator Wire Cover
12W11293361 Whirlpool Refrigerator Wire Jumper
13W10407187 Whirlpool Refrigerator Door Bumper
13AW11573367 Whirlpool Refrigerator Door Bumper
