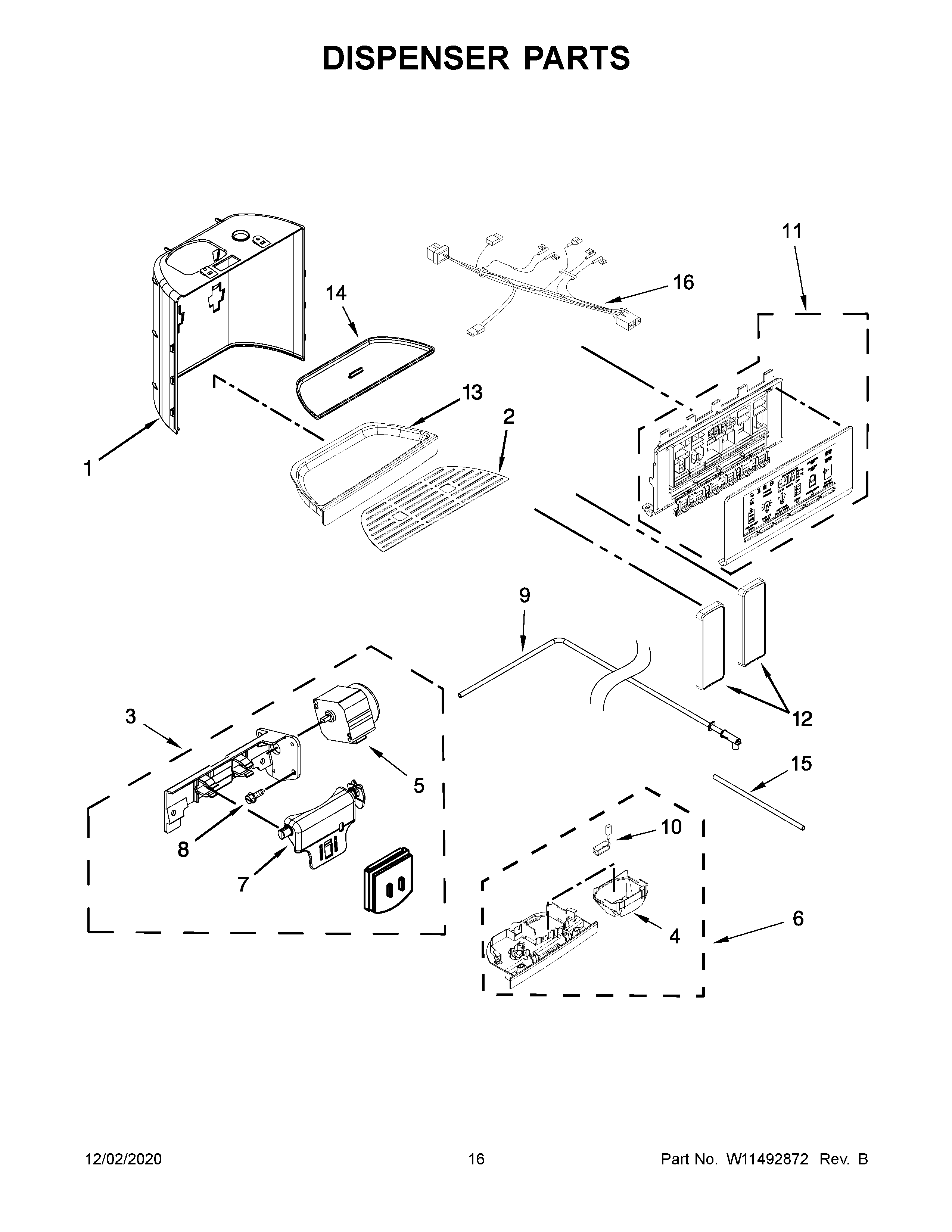

KRSC703HPS01 09 – DISPENSER PARTS

Products

Position	Product
1	W10317259 Whirlpool Refrigerator Separator
2	WPW10317270 Whirlpool Refrigerator Grille
3	DOOR-ICE
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W10353593 Whirlpool Refrigerator Separator
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	W11669938 Whirlpool Water Tube
10	W11290115 Whirlpool Refrigerator Light
11	W11504919-includeCORE Whirlpool W11504919 Refrigerator Electronic Control Board + Core
12A	WPW10346924 Whirlpool Refrigerator Pad
12	W11561037 Whirlpool Refrigerator Pad
13	W10317265 Whirlpool Refrigerator Drip Tray
14	W10317275 Whirlpool Refrigerator Drip Tray
15	W11620106 Whirlpool Water Tube
16	W11296837 Whirlpool Refrigerator Wire Harness
