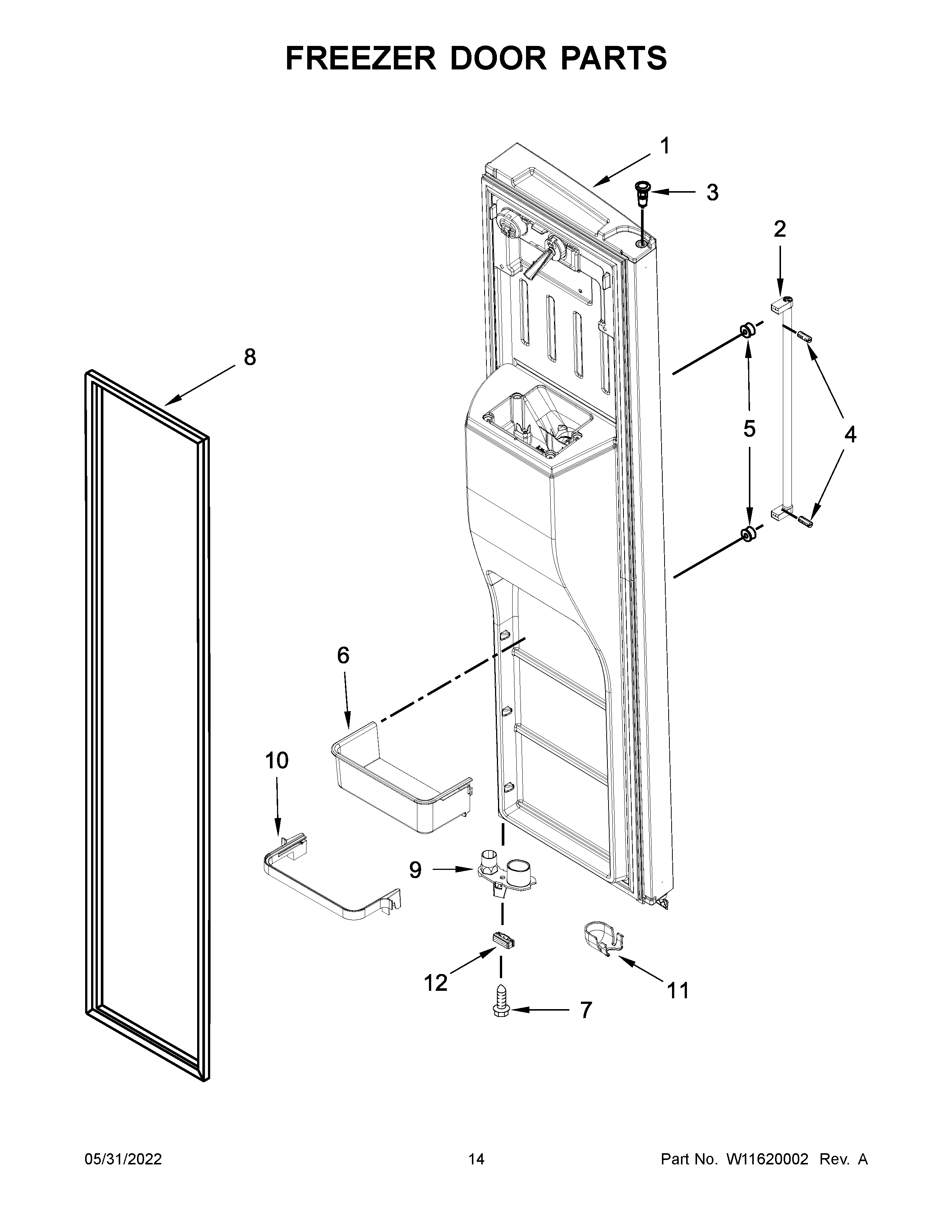

KRSC703HPS04 08 – FREEZER DOOR PARTS

KRSC703HPS04 08 – FREEZER DOOR PARTS

Written by

in

KRSC703HPS04 08 – FREEZER DOOR PARTS

Products

PositionProduct
1AW11593330 Whirlpool Door Flip
1W11621811 Whirlpool Door Seal
2W11340150 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4SCREW
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10434529 Whirlpool Refrigerator Bin
7SCREW
8AGASKET-FIP (AH)
8GASKET, DOOR (BLACK)
9AWPW10257206 Whirlpool Refrigerator Door Cam
9W11607100 Whirlpool Refrigerator Thimble Cam
10WPW10494336 Whirlpool Refrigerator Bin Frame
11W10323148 Whirlpool Refrigerator Wire Cover
12AW11573367 Whirlpool Refrigerator Door Bumper
12W10407187 Whirlpool Refrigerator Door Bumper
