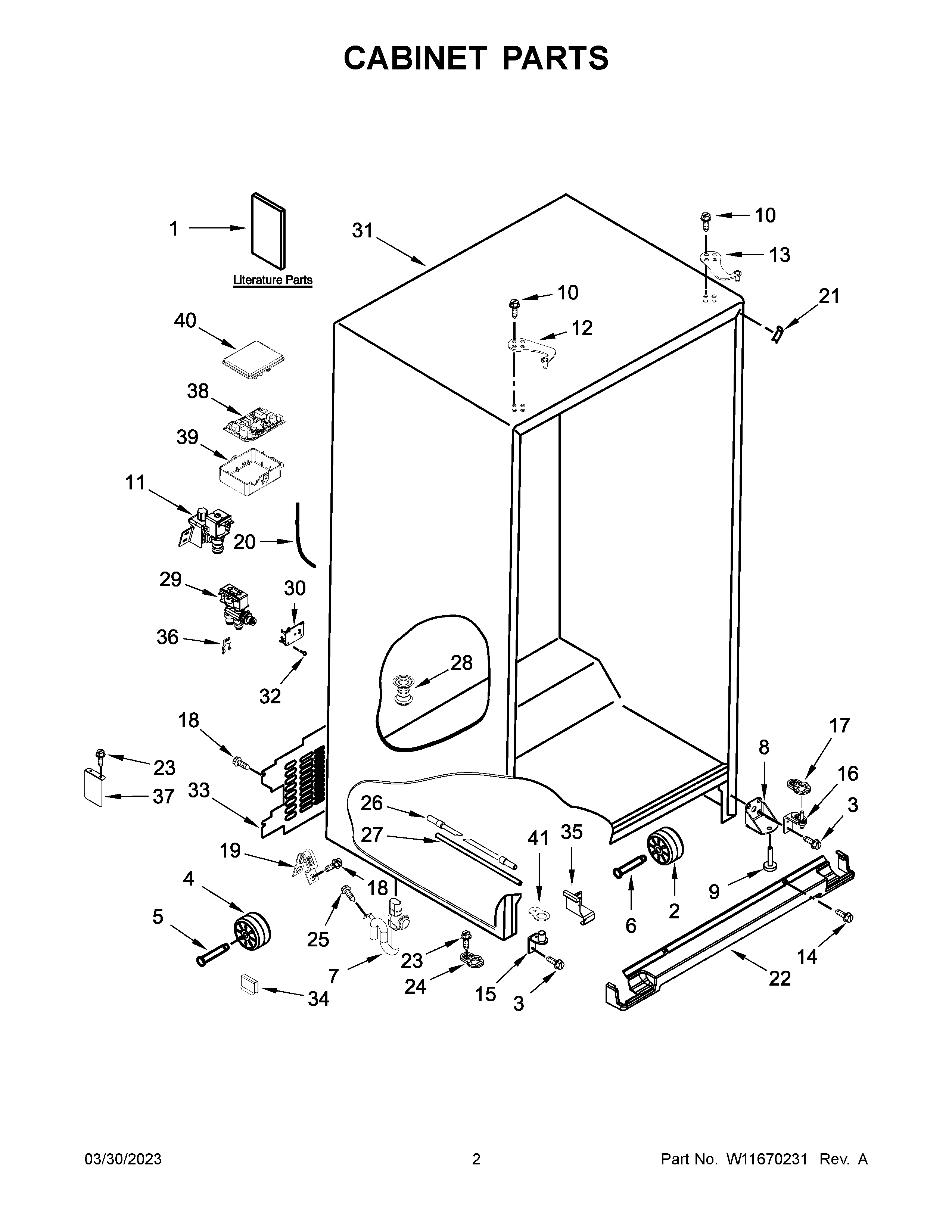

KRSC703HPS05 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	TECH SHEET
1	USE & CARE GUIDE
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	W11208384 Whirlpool Refrigerator Rivet
7	W11519143 Whirlpool Refrigerator Extension
8	W11266052 Whirlpool Refrigerator Bracket
9	WPW10141622 Whirlpool Leveler
10	SCREW, HINGE (WHITE)
11	W11512399 Whirlpool Refrigerator Inlet Valve
12A	W11590581 Whirlpool Refrigerator Door Hinge
12	W10901052 Whirlpool Refrigerator Door Hinge
13	W11568758 Whirlpool Top Hinge
13A	HINGE-DOOR
14A	WPW10308489 Whirlpool Refrigerator Screw
14	WP98008545 Whirlpool Screw
15	W11269265 Whirlpool Refrigerator Door Hinge
15A	W11293374 Whirlpool Refrigerator Door Hinge
16A	W11292872 Whirlpool Refrigerator Door Hinge
16	W11311416 Whirlpool Refrigerator Door Hinge
17A	W11311687 Whirlpool Closing Cam
17	W11311686 Whirlpool Closing Cam
18	SCREW
19	W11234470 Whirlpool Refrigerator Clamp
20	WPW10238092 Whirlpool Refrigerator Water Tube
21	67003485 Whirlpool Refrigerator Corner Cover (Black)
21A	WP12587703AP Whirlpool Refrigerator Filler
22	WPW10713158 Whirlpool Refrigerator Grille
22A	WPW10713153 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10770895 Whirlpool Refrigerator Door Cam
24A	W10876191 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279885 Whirlpool Refrigerator Water Tube
28	W10247979 Whirlpool Refrigerator Fitting
29	VALVE-INLT REFR
30	W10847867 Whirlpool Refrigerator Bracket
31	CABINET (NOT A SERVICEABLE PART)
32	WPW10141625 Whirlpool Refrigerator Screw Assembly
33	W11453073 Whirlpool Unit Cover
34	W11545866 Whirlpool Refrigerator Clip
35	W10499011 Whirlpool Refrigerator Bracket
36	W11678575 Whirlpool Ring
36A	W11676611 Whirlpool Ring
37	W10336736 Whirlpool Refrigerator Cover
38	W11620204-includeCORE Whirlpool W11620204 Refrigerator Electronic Control Board + Core
39	WPW10247993 Whirlpool Refrigerator Control Box
40	LID, HV BOX
41	SHIM, CAM CLOSER
