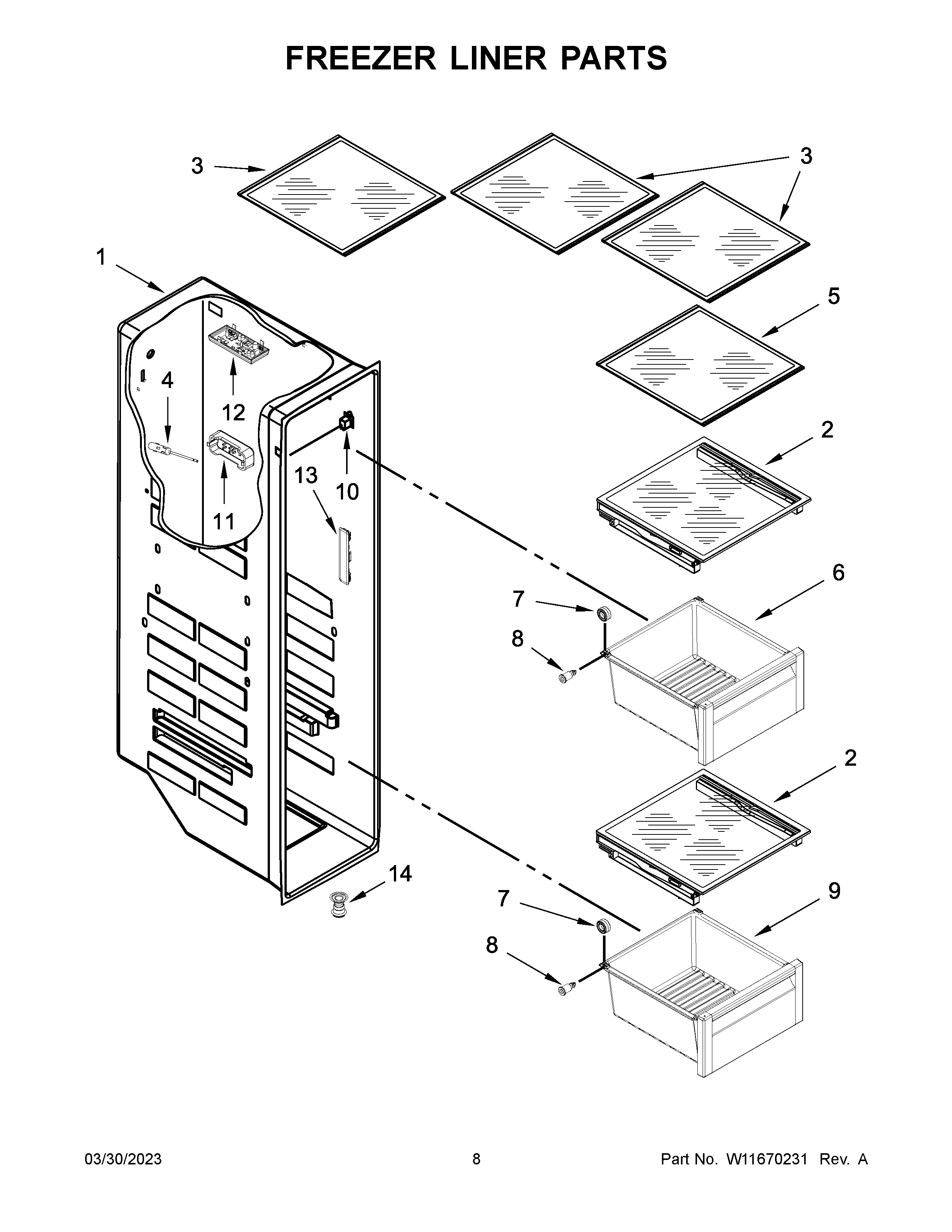

KRSC703HPS05 05 – FREEZER LINER PARTS

KRSC703HPS05 05 – FREEZER LINER PARTS

Written by

in

KRSC703HPS05 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10362174 Whirlpool Refrigerator Cover
3W11340148 Whirlpool Refrigerator Glass Shelf
4THERMISTOR
5W11340146 Whirlpool Glass Shelf
6W10861754 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8W11175807 Whirlpool Axle Assembly
9W11607156 Whirlpool Refrigerator Freezer Bin
10W11396033 Whirlpool Refrigerator Rocker Switch
11WPW10425252 Whirlpool Refrigerator Cover
12W11226500 Whirlpool LED Light
13W10876365 Whirlpool Refrigerator Light
14W10370680 Whirlpool Refrigerator Fitting
