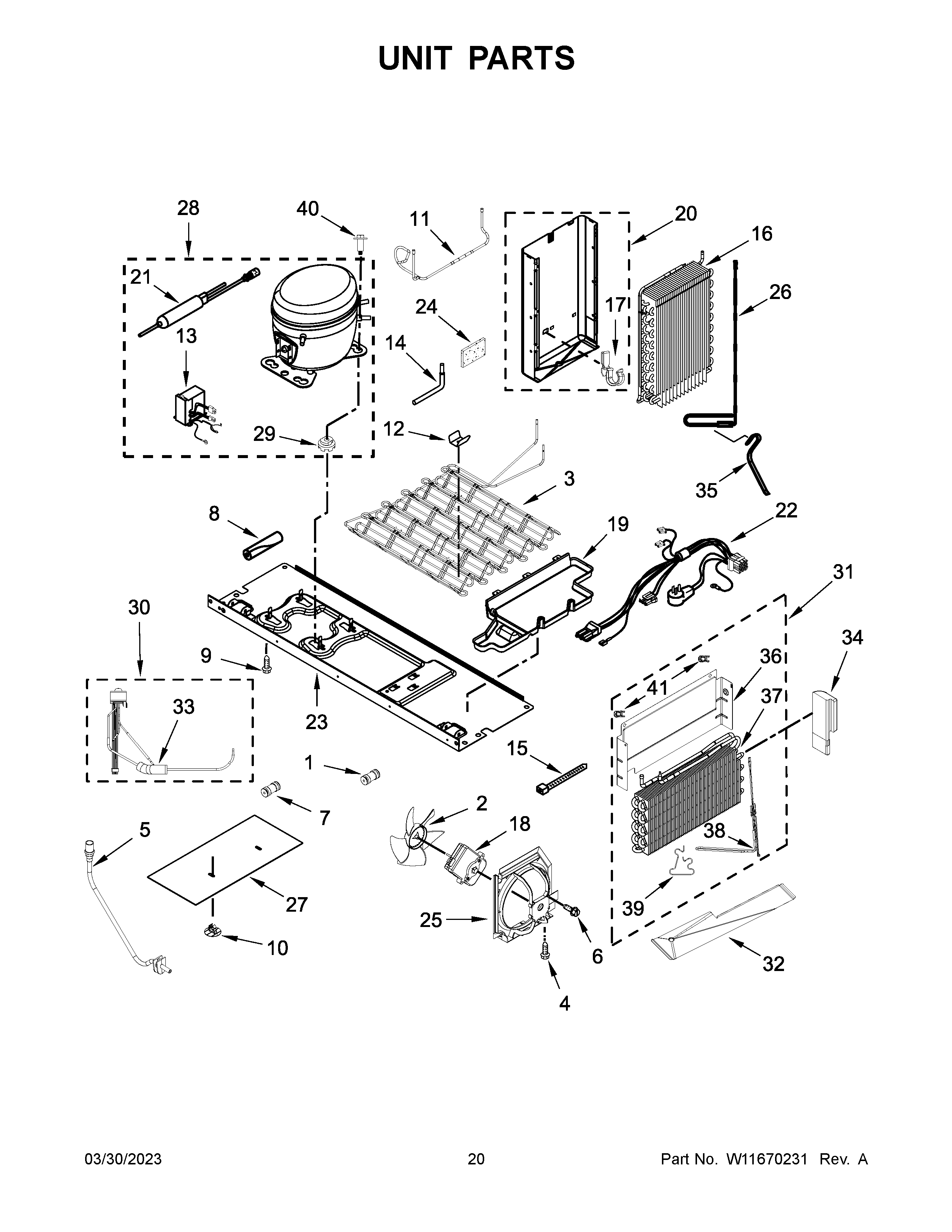

KRSC703HPS05 11 – UNIT PARTSadmin2025-04-26T12:29:17+00:00KRSC703HPS05 11 – UNIT PARTS ProductsPositionProductNICABINET (NOT A SERVICEABLE PART)1WPW10271543 Whirlpool Refrigerator Connector2W11458267 Whirlpool Refrigerator Fan Blade3W11708426 Whirlpool Condenser Assembly4W10142255 Whirlpool Screw5W11409190 Whirlpool Refrigerator Drain Tube6WPW10171469 Whirlpool Refrigerator Screw7WPW10277958 Whirlpool Refrigerator Fitting8SLEEVE9BOLT10W10815861 Whirlpool Refrigerator Clip11W11608695 Whirlpool Tube12W10683556 Whirlpool Refrigerator Clip13W11567494 Whirlpool Refrigerator Inverter Box14W11558176 Whirlpool Tube15WPW10339879 Whirlpool Wire Tie16W11566897 Whirlpool Evaporator16BW11504450 Whirlpool Refrigerator Coupler17W11623163 Whirlpool Refrigerator Clip18W11127829 Whirlpool Refrigerator Condenser Motor19W10714793 Whirlpool Refrigerator Evaporator Tray20W11517387 Whirlpool Shield21AW11504445 Whirlpool Refrigerator Coupler21W11109499 Whirlpool Refrigerator Tube22W11661927 Whirlpool Harness Wire23W10680691 Whirlpool Refrigerator Support Assembly25WPW10251467 Whirlpool Refrigerator Air Baffle26W11567493 Whirlpool Refrigerator Heater27UNIT COVER, BOTTOM28AW11504431 Whirlpool Microwave Coupler28DW11506635 Whirlpool Refrigerator Valve Coupler28CW11504416 Whirlpool Refrigerator Coupler28W11557671 Whirlpool Refrigerator Compressor28BW11504415 Whirlpool Refrigerator Coupler29WPW10169124 Whirlpool Refrigerator Grommet30AW11506623 Whirlpool Refrigerator Coupler30W11590197 Whirlpool Refrigerator Valve30CW11506625 Whirlpool Refrigerator Coupler31BW11506620 Whirlpool Refrigerator Coupler31ACOUPLER32W11720794 Whirlpool Drain Pan33W11553819 Whirlpool Refrigerator Insulation34W11621724 Whirlpool Insulation34AWPL W1140529135HEAT-PROBE36ASSEMBLY, RC HEAT SHIELD37W11595221 Whirlpool Evaporator38W11621725 Whirlpool Heater Assembly39W11621727 Whirlpool Clip40W11417341 Whirlpool Refrigerator Screw41CLIP, EVAP (2)
