KRSF505EBL00 09 – DISPENSER PARTS

KRSF505EBL00 09 – DISPENSER PARTS

Written by

in

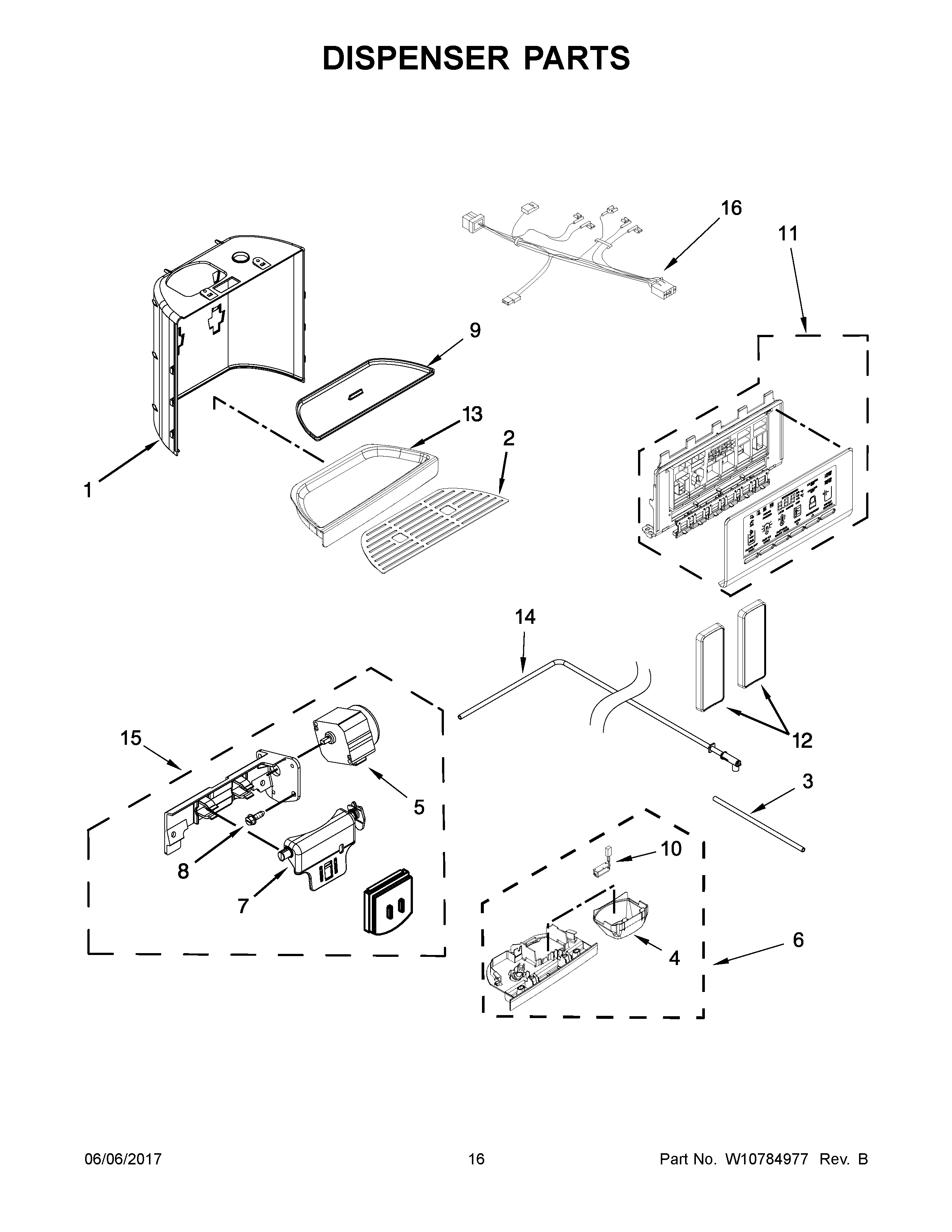

KRSF505EBL00 09 – DISPENSER PARTS

Products

PositionProduct
1W10317258 Whirlpool Refrigerator Separator
1BW10317255 Whirlpool Refrigerator Separator
1AW10317259 Whirlpool Refrigerator Separator
2WPW10317270 Whirlpool Refrigerator Grille
3W11619800 Whirlpool Refrigerator Water Tube
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10353593 Whirlpool Refrigerator Separator
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10317274 Whirlpool Drip Tray
9AW10317275 Whirlpool Refrigerator Drip Tray
9BW10859920 Whirlpool Refrigerator Drip Tray
10W11290115 Whirlpool Refrigerator Light
11W10822640-includeCORE Whirlpool W10822640 Refrigerator Electronic Control Board + Core
12AW11561037 Whirlpool Refrigerator Pad
12W10317250 Whirlpool Refrigerator Pad
12BWPW10346924 Whirlpool Refrigerator Pad
13BWPW10317261 Whirlpool Refrigerator Drip Tray
13AW10317265 Whirlpool Refrigerator Drip Tray
13W10317264 Whirlpool Refrigerator Drip Tray
14WPW10386778 Whirlpool Refrigerator Water Tube
15DOOR-ICE
16W10605336 Whirlpool Refrigerator Wire Harness
