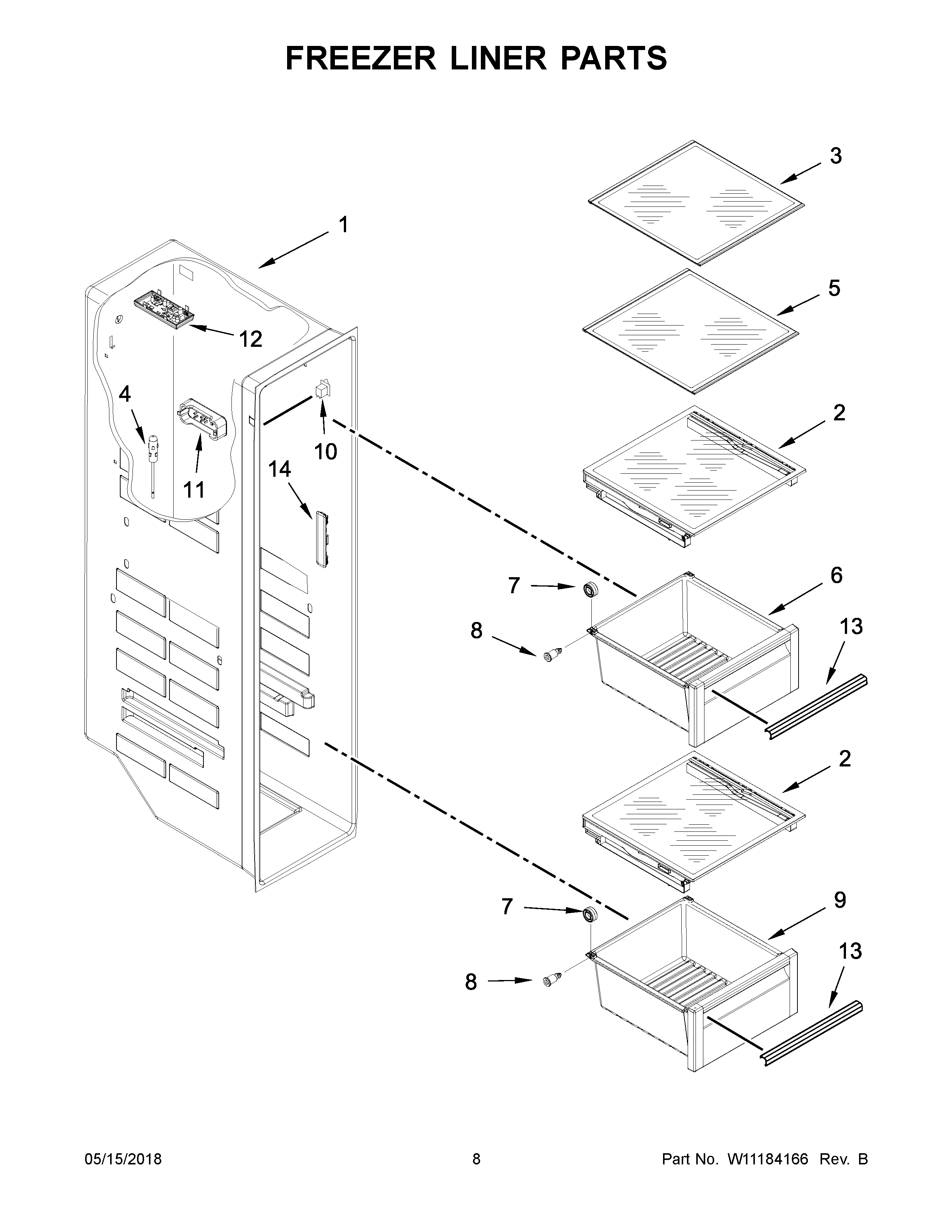

KRSF505EBL01 05 – FREEZER LINER PARTS

KRSF505EBL01 05 – FREEZER LINER PARTS

Written by

in

KRSF505EBL01 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10362175 Whirlpool Refrigerator Cover
3W10321181 Whirlpool Refrigerator Cover
4THERMISTOR
5WPW10321182 Whirlpool Refrigerator Glass Shelf
6W10846447 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8W11175807 Whirlpool Axle Assembly
9W10542032 Whirlpool Refrigerator Freezer Bin
10W11396033 Whirlpool Refrigerator Rocker Switch
11WPW10425252 Whirlpool Refrigerator Cover
12W11226500 Whirlpool LED Light
13W10542017 Whirlpool Refrigerator Trim Pan
14W10876365 Whirlpool Refrigerator Light
