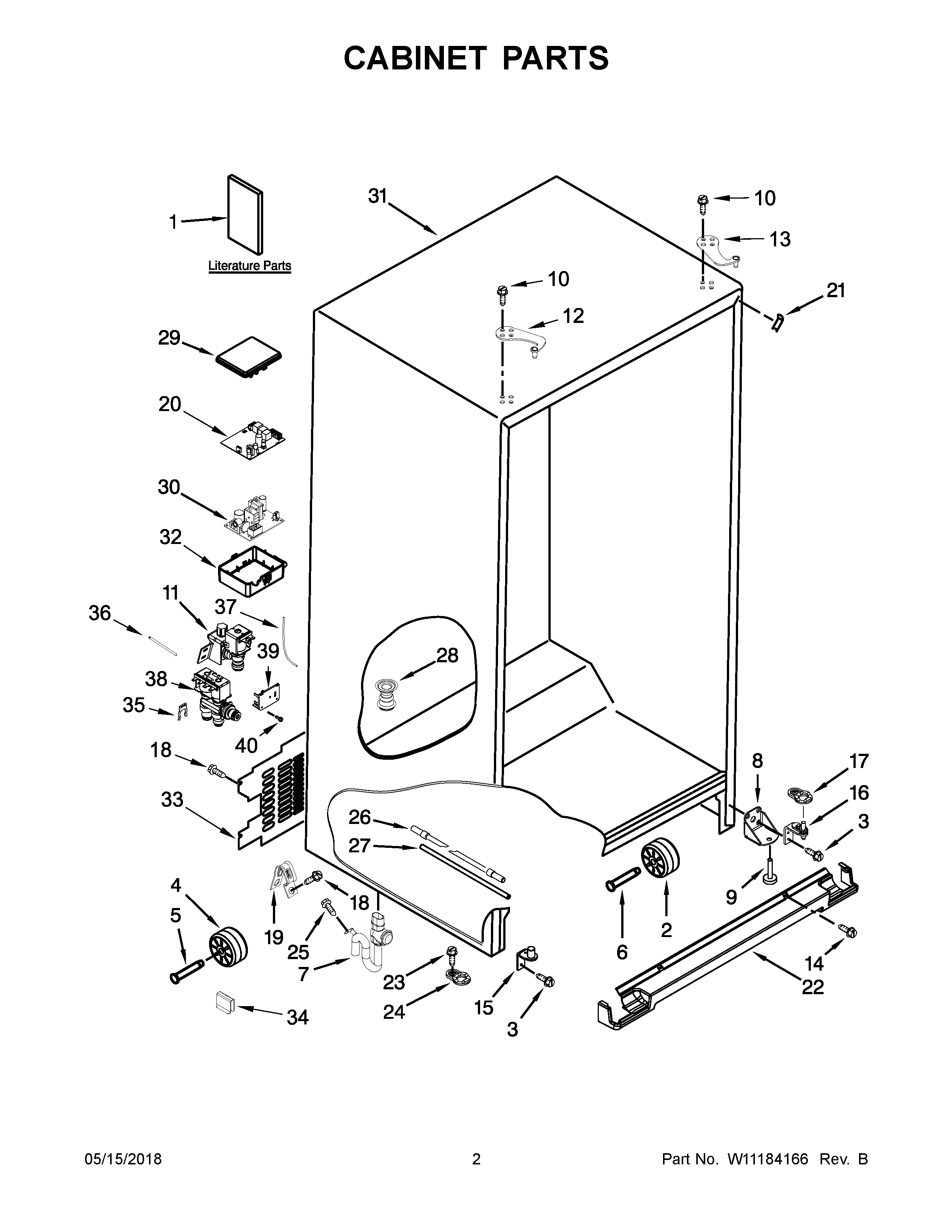

KRSF505EWH01 02 – CABINET PARTS

Products

Position	Product
1A	W11669856 Whirlpool Grommet
1	W10240370 Whirlpool Refrigerator Gasket
1B	W11232019 Whirlpool Refrigerator Clip
2	WIRE ASSY-EVAP FAN
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	W11208384 Whirlpool Refrigerator Rivet
7	W11519143 Whirlpool Refrigerator Extension
8	W11266052 Whirlpool Refrigerator Bracket
9	WPW10141622 Whirlpool Leveler
10	WPW10308751 Whirlpool Screw
11	VALVE-INLT REFR
12A	W10901052 Whirlpool Refrigerator Door Hinge
12	W10901051 Whirlpool Refrigerator Door Hinge
12B	W11590581 Whirlpool Refrigerator Door Hinge
13	W11573587 Whirlpool Refrigerator Door Hinge
13A	W11568758 Whirlpool Top Hinge
13B	HINGE-DOOR
14	WPW10142283 Whirlpool Refrigerator Screw
14A	WP98008545 Whirlpool Screw
14B	WPW10308489 Whirlpool Refrigerator Screw
15A	HINGE, BOTTOM (FREEZER) (BLACK)
15	HINGE, BOTTOM (FREEZER) (WHITE)
15B	W10249952 Whirlpool Refrigerator Door Hinge
16	W11320488 Whirlpool Refrigerator Door Hinge
16B	W11292872 Whirlpool Refrigerator Door Hinge
16A	W11311416 Whirlpool Refrigerator Door Hinge
17B	W11311687 Whirlpool Closing Cam
17A	W11311686 Whirlpool Closing Cam
17	W11311685 Whirlpool Refrigerator Door Cam
18	SCREW
19	549193 Whirlpool Refrigerator Power Clamp
20	WPW10226427 Whirlpool Refrigerator Electronic Control Board
21A	67003485 Whirlpool Refrigerator Corner Cover (Black)
21	12587703W Whirlpool Refrigerator Cover
21B	WP12587703AP Whirlpool Refrigerator Filler
22A	WPW10713158 Whirlpool Refrigerator Grille
22B	WPW10713153 Whirlpool Refrigerator Grille
22	WPW10713160 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24B	W10876191 Whirlpool Refrigerator Door Cam
24	W10876198 Whirlpool Refrigerator Door Cam
24A	W10770895 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279885 Whirlpool Refrigerator Water Tube
28	W10370680 Whirlpool Refrigerator Fitting
29	LID, HV BOX
30	W11172798 Whirlpool Refrigerator Electronic Control Board + Core
31	CABINET (NOT A SERVICEABLE PART)
32	WPW10247993 Whirlpool Refrigerator Control Box
33	W10257238 Whirlpool Refrigerator Cover Unit
34	W11545866 Whirlpool Refrigerator Clip
35	W11676611 Whirlpool Ring
35A	W11678575 Whirlpool Ring
36	INSULATING TUBE
37	W11619800 Whirlpool Refrigerator Water Tube
38	VALVE-INLT REFR
39	W10847867 Whirlpool Refrigerator Bracket
40	WPW10141625 Whirlpool Refrigerator Screw Assembly
