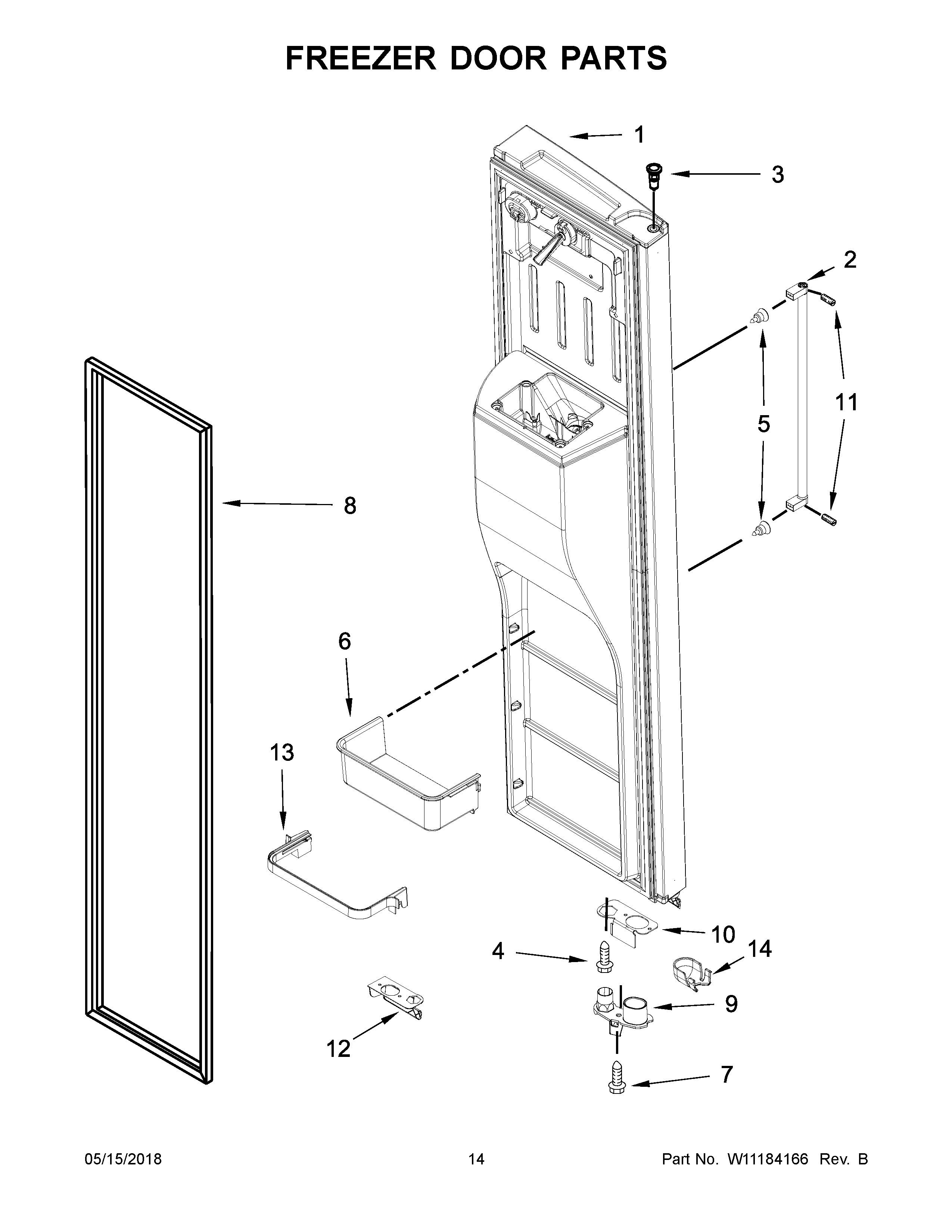

KRSF505EWH01 08 – FREEZER DOOR PARTS

KRSF505EWH01 08 – FREEZER DOOR PARTS

Written by

in

KRSF505EWH01 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BLW10755680 Whirlpool Refrigerator DOR FIP
1ADOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1LW10755650 Whirlpool Refrigerator Door
2W11340150 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10434529 Whirlpool Refrigerator Bin
7SCREW
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
8WPW10247885 Whirlpool Door Gasket
9BWPW10257206 Whirlpool Refrigerator Door Cam
9AW11607100 Whirlpool Refrigerator Thimble Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11W10917698 Whirlpool Dishwasher Screw
12BWPW10632062 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
13WPW10494336 Whirlpool Refrigerator Bin Frame
14W10323148 Whirlpool Refrigerator Wire Cover
