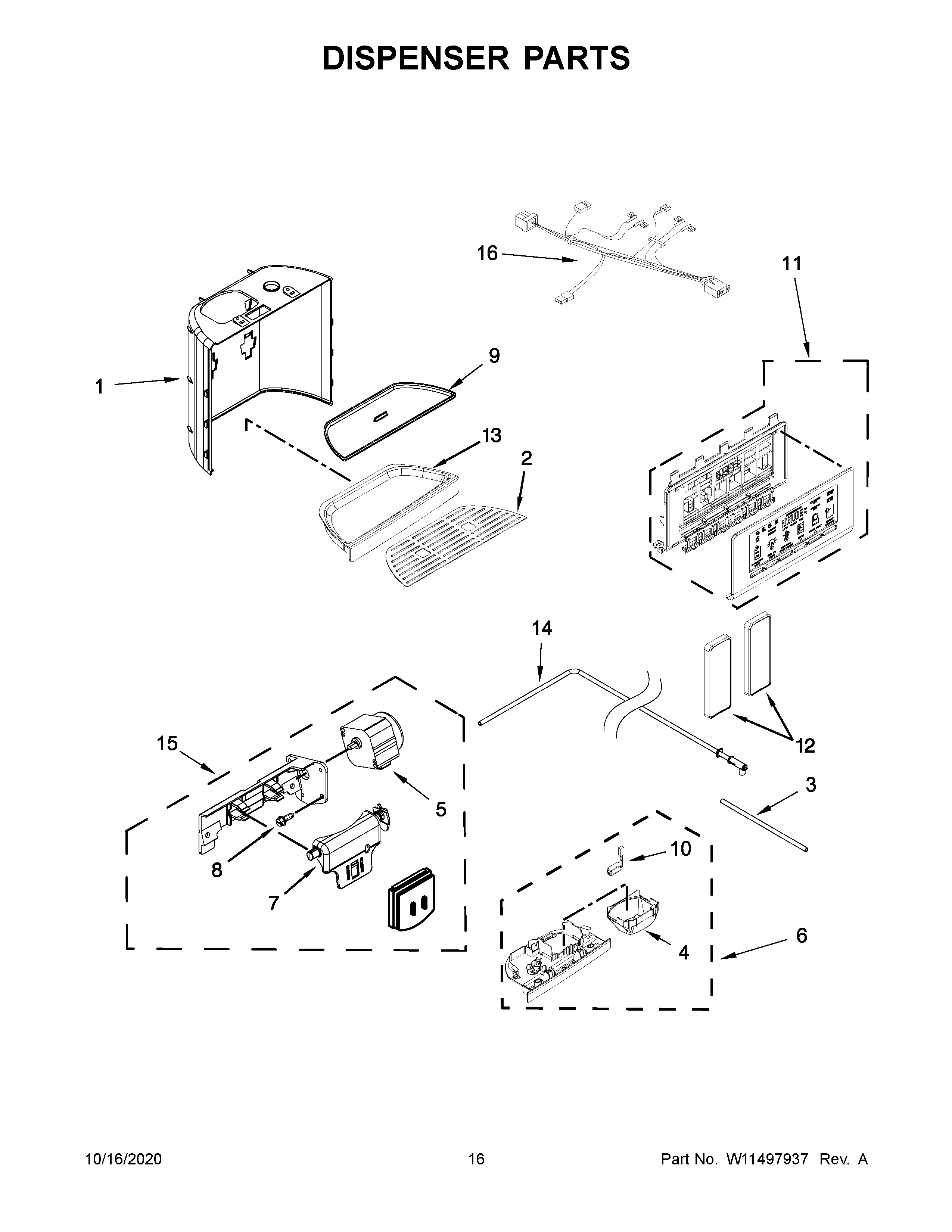

KRSF705HBS01 09 – DISPENSER PARTS

KRSF705HBS01 09 – DISPENSER PARTS

Written by

in

KRSF705HBS01 09 – DISPENSER PARTS

Products

PositionProduct
1W10317259 Whirlpool Refrigerator Separator
2WPW10317270 Whirlpool Refrigerator Grille
3W11619800 Whirlpool Refrigerator Water Tube
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10353593 Whirlpool Refrigerator Separator
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10317275 Whirlpool Refrigerator Drip Tray
10W11290115 Whirlpool Refrigerator Light
11W11512401 Whirlpool Refrigerator Electronic Control Board + Core
12W11561037 Whirlpool Refrigerator Pad
12AWPW10346924 Whirlpool Refrigerator Pad
13W10317265 Whirlpool Refrigerator Drip Tray
14WPW10386778 Whirlpool Refrigerator Water Tube
15DOOR-ICE
16W11296837 Whirlpool Refrigerator Wire Harness
