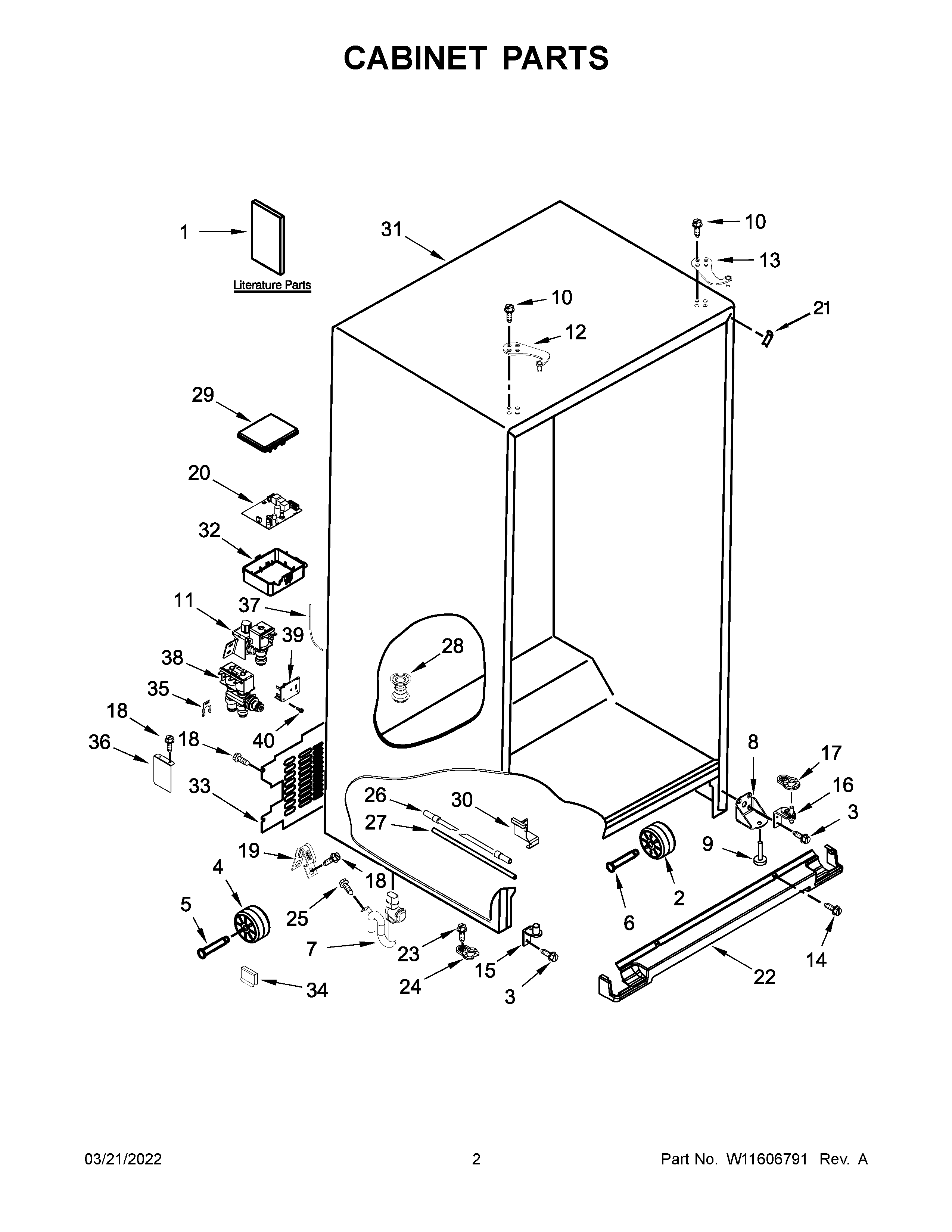

KRSF705HBS04 02 – CABINET PARTS

Products

Position	Product
1A	TECH SHEET
1B	ENERGY GUIDE
1	USE & CARE GUIDE
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	W11208384 Whirlpool Refrigerator Rivet
7	W11519143 Whirlpool Refrigerator Extension
8	W11266052 Whirlpool Refrigerator Bracket
9	WPW10141622 Whirlpool Leveler
10	SCREW, HINGE (WHITE)
11	W11512399 Whirlpool Refrigerator Inlet Valve
12	W11590581 Whirlpool Refrigerator Door Hinge
12A	W10901052 Whirlpool Refrigerator Door Hinge
13A	W11568758 Whirlpool Top Hinge
13	HINGE-DOOR
14A	WP98008545 Whirlpool Screw
14	WPW10308489 Whirlpool Refrigerator Screw
15	W10249952 Whirlpool Refrigerator Door Hinge
15A	HINGE, BOTTOM (FREEZER) (BLACK)
16A	W11311416 Whirlpool Refrigerator Door Hinge
16	W11292872 Whirlpool Refrigerator Door Hinge
17A	W11311686 Whirlpool Closing Cam
17	W11311687 Whirlpool Closing Cam
18	SCREW
19	W11234470 Whirlpool Refrigerator Clamp
20	W11620204-includeCORE Whirlpool W11620204 Refrigerator Electronic Control Board + Core
21	WP12587703AP Whirlpool Refrigerator Filler
21A	67003485 Whirlpool Refrigerator Corner Cover (Black)
22A	WPW10713158 Whirlpool Refrigerator Grille
22	WPW10713153 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876191 Whirlpool Refrigerator Door Cam
24A	W10770895 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279885 Whirlpool Refrigerator Water Tube
28	W10247979 Whirlpool Refrigerator Fitting
29	LID, HV BOX
30	W10499011 Whirlpool Refrigerator Bracket
31	CABINET (NOT A SERVICEABLE PART)
32	WPW10247993 Whirlpool Refrigerator Control Box
33	W11453073 Whirlpool Unit Cover
34	W11545866 Whirlpool Refrigerator Clip
35	W11676611 Whirlpool Ring
35A	W11678575 Whirlpool Ring
36	W10336736 Whirlpool Refrigerator Cover
37	WPW10238092 Whirlpool Refrigerator Water Tube
38	VALVE-INLT REFR
39	W10847867 Whirlpool Refrigerator Bracket
40	WPW10141625 Whirlpool Refrigerator Screw Assembly
