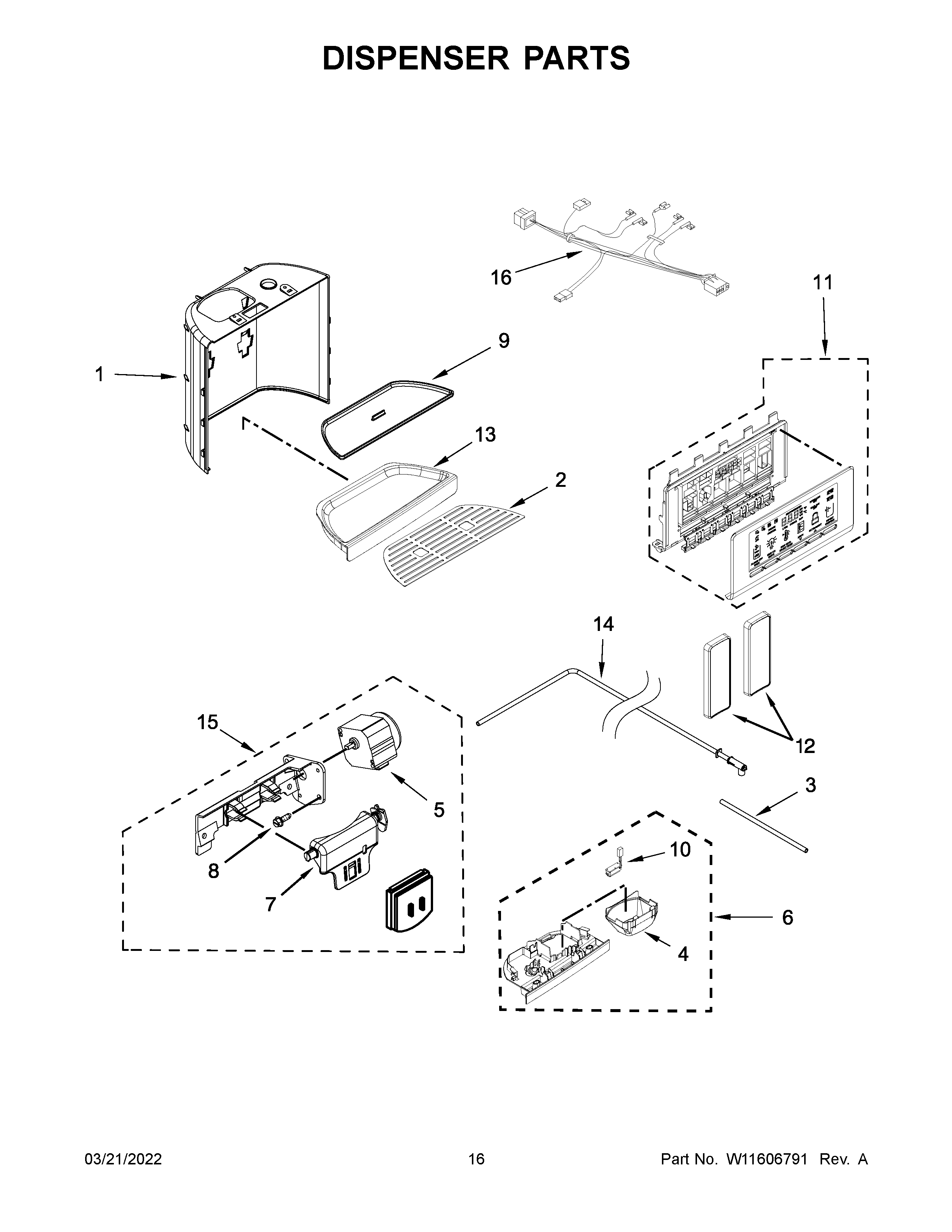

KRSF705HBS04 09 – DISPENSER PARTS

Products

Position	Product
1	W10317259 Whirlpool Refrigerator Separator
2	WPW10317270 Whirlpool Refrigerator Grille
3	WPW10279831 Whirlpool Refrigerator Water Tube
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W10353593 Whirlpool Refrigerator Separator
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	DRIP TRAY, INSERT (BLACK)
10	W11290115 Whirlpool Refrigerator Light
11	W11608967-includeCORE Whirlpool W11608967 Refrigerator Electronic Control Board + Core
12A	W11561037 Whirlpool Refrigerator Pad
12	WPW10346924 Whirlpool Refrigerator Pad
13	W10317265 Whirlpool Refrigerator Drip Tray
14	W11567542 Whirlpool Refrigerator Water Tube
15	DOOR-ICE
16	W11025771 Whirlpool Wire Harness
