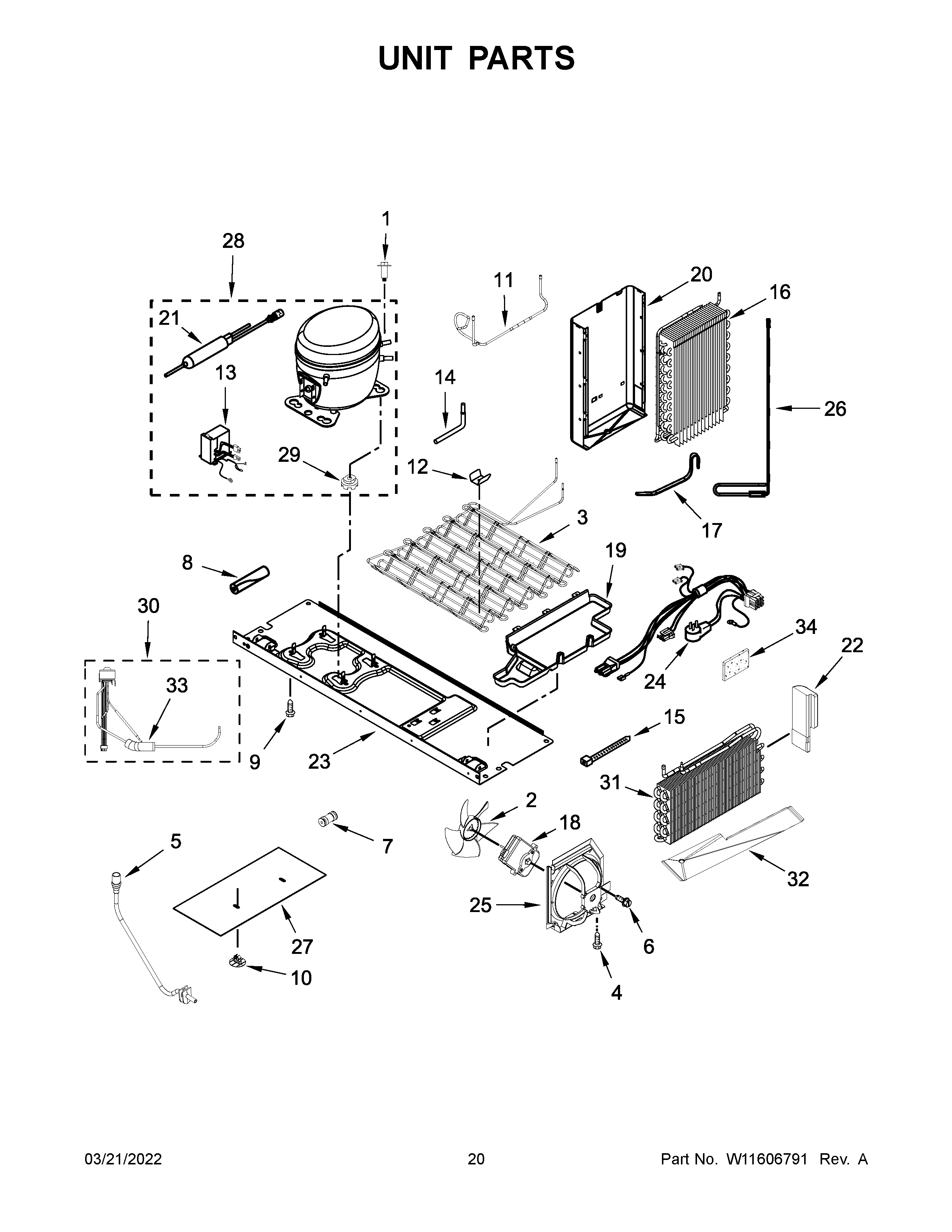

KRSF705HBS04 11 – UNIT PARTS

KRSF705HBS04 11 – UNIT PARTS

Written by

in

KRSF705HBS04 11 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11417341 Whirlpool Refrigerator Screw
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11673437 Whirlpool Condenser Assembly
4	W10142255 Whirlpool Screw
5	W11409190 Whirlpool Refrigerator Drain Tube
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	BOLT
10	W10815861 Whirlpool Refrigerator Clip
11	W11608695 Whirlpool Tube
12	W10683556 Whirlpool Refrigerator Clip
13	W11567494 Whirlpool Refrigerator Inverter Box
14	W11558176 Whirlpool Tube
15	WPW10339879 Whirlpool Wire Tie
16B	W11504450 Whirlpool Refrigerator Coupler
16	W11546605 Whirlpool Refrigerator Evaporator
17	W11566486 Whirlpool Heat Probe
18	W11127829 Whirlpool Refrigerator Condenser Motor
19	W11298166 Whirlpool Refrigerator Evaporator Tray
20	ASSEMBLY, HEAT SHIELD/DRAIN PAN
21A	W11504445 Whirlpool Refrigerator Coupler
21	W11109499 Whirlpool Refrigerator Tube
22	WPL W11405291
22A	EPS BACK (LEFT HAND)
23	W10680691 Whirlpool Refrigerator Support Assembly
24	W11661927 Whirlpool Harness Wire
25	WPW10251467 Whirlpool Refrigerator Air Baffle
26	W11546981 Whirlpool Refrigerator Heater
27	W10278140 Whirlpool Refrigerator Unit Cover
28D	W11506635 Whirlpool Refrigerator Valve Coupler
28A	W11504431 Whirlpool Microwave Coupler
28	W11557671 Whirlpool Refrigerator Compressor
28B	W11504415 Whirlpool Refrigerator Coupler
28C	W11504416 Whirlpool Refrigerator Coupler
29	WPW10169124 Whirlpool Refrigerator Grommet
30	W11590197 Whirlpool Refrigerator Valve
30A	W11506623 Whirlpool Refrigerator Coupler
30C	W11506625 Whirlpool Refrigerator Coupler
31B	W11506620 Whirlpool Refrigerator Coupler
31A	COUPLER
31	W11595221 Whirlpool Evaporator
32	W11720794 Whirlpool Drain Pan
33	W11553819 Whirlpool Refrigerator Insulation
