KRSF705HBS05 09 – DISPENSER PARTS

KRSF705HBS05 09 – DISPENSER PARTS

Written by

in

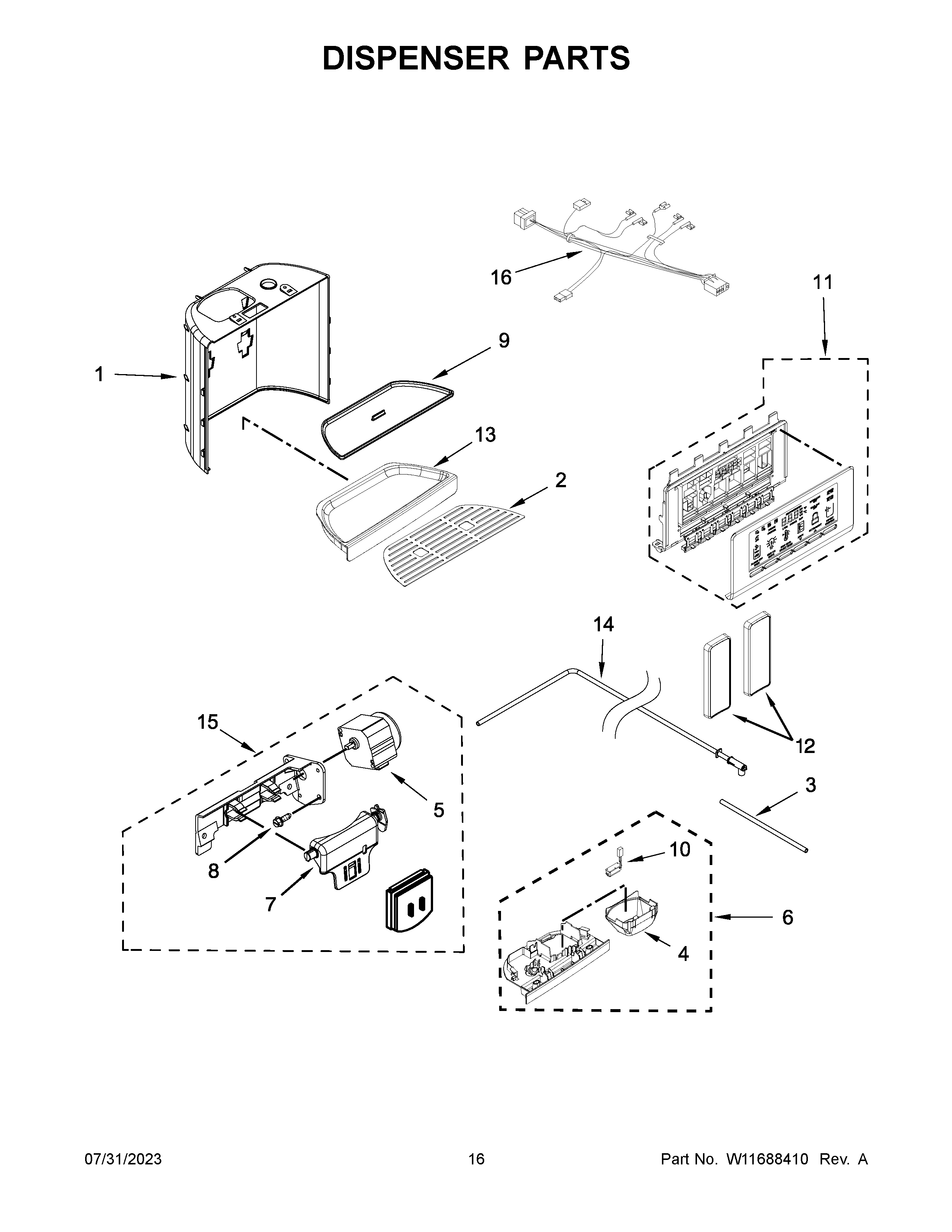

KRSF705HBS05 09 – DISPENSER PARTS

Products

PositionProduct
1W10317259 Whirlpool Refrigerator Separator
2WPW10317270 Whirlpool Refrigerator Grille
3WPW10279831 Whirlpool Refrigerator Water Tube
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10353593 Whirlpool Refrigerator Separator
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9DRIP TRAY, INSERT (BLACK)
10W11290115 Whirlpool Refrigerator Light
11W11608967-includeCORE Whirlpool W11608967 Refrigerator Electronic Control Board + Core
12AW11561037 Whirlpool Refrigerator Pad
12WPW10346924 Whirlpool Refrigerator Pad
13W10317265 Whirlpool Refrigerator Drip Tray
14W11567542 Whirlpool Refrigerator Water Tube
15DOOR-ICE
16W11025771 Whirlpool Wire Harness
