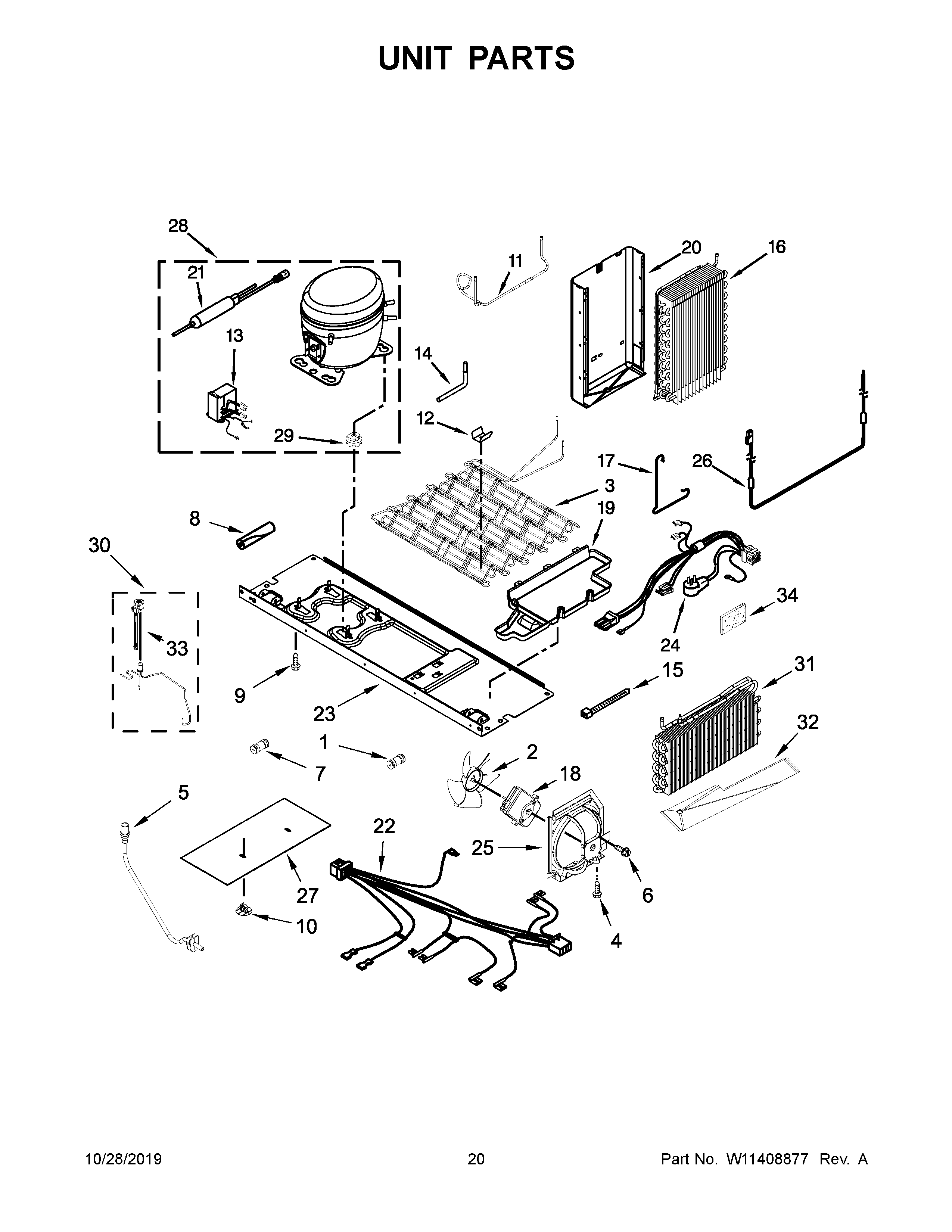

KRSF705HPS00 11 – UNIT PARTSadmin2025-04-26T12:29:09+00:00KRSF705HPS00 11 – UNIT PARTS ProductsPositionProductNICABINET (NOT A SERVICEABLE PART)1WPW10271543 Whirlpool Refrigerator Connector2W11458267 Whirlpool Refrigerator Fan Blade3W11673437 Whirlpool Condenser Assembly4W10142255 Whirlpool Screw5W11409190 Whirlpool Refrigerator Drain Tube6WPW10171469 Whirlpool Refrigerator Screw7WPW10277958 Whirlpool Refrigerator Fitting8SLEEVE9BOLT10W10815861 Whirlpool Refrigerator Clip11WPW10223328 Whirlpool Refrigerator Tube12W10683556 Whirlpool Refrigerator Clip13W11087200 Whirlpool Refrigerator Inverter Box14W10858105 Whirlpool Refrigerator Tube15WPW10339879 Whirlpool Wire Tie16W11546605 Whirlpool Refrigerator Evaporator17Clamp18W11127829 Whirlpool Refrigerator Condenser Motor19W11298166 Whirlpool Refrigerator Evaporator Tray20HEAT SHIELD21WPW10143759 Whirlpool Dryer Filter22W11700341 Whirlpool Wire Harness23W10680691 Whirlpool Refrigerator Support Assembly24WPW10242407 Whirlpool Refrigerator Power Cord25WPW10251467 Whirlpool Refrigerator Air Baffle26WPW10495967 Whirlpool Refrigerator Heater27W10278140 Whirlpool Refrigerator Unit Cover28W10779331 Whirlpool Refrigerator Compressor29W11661108 Whirlpool Grommet31WPW10643261 Whirlpool Refrigerator Evaporator32W11720794 Whirlpool Drain Pan33W11590197 Whirlpool Refrigerator Valve34W11553819 Whirlpool Refrigerator Insulation
