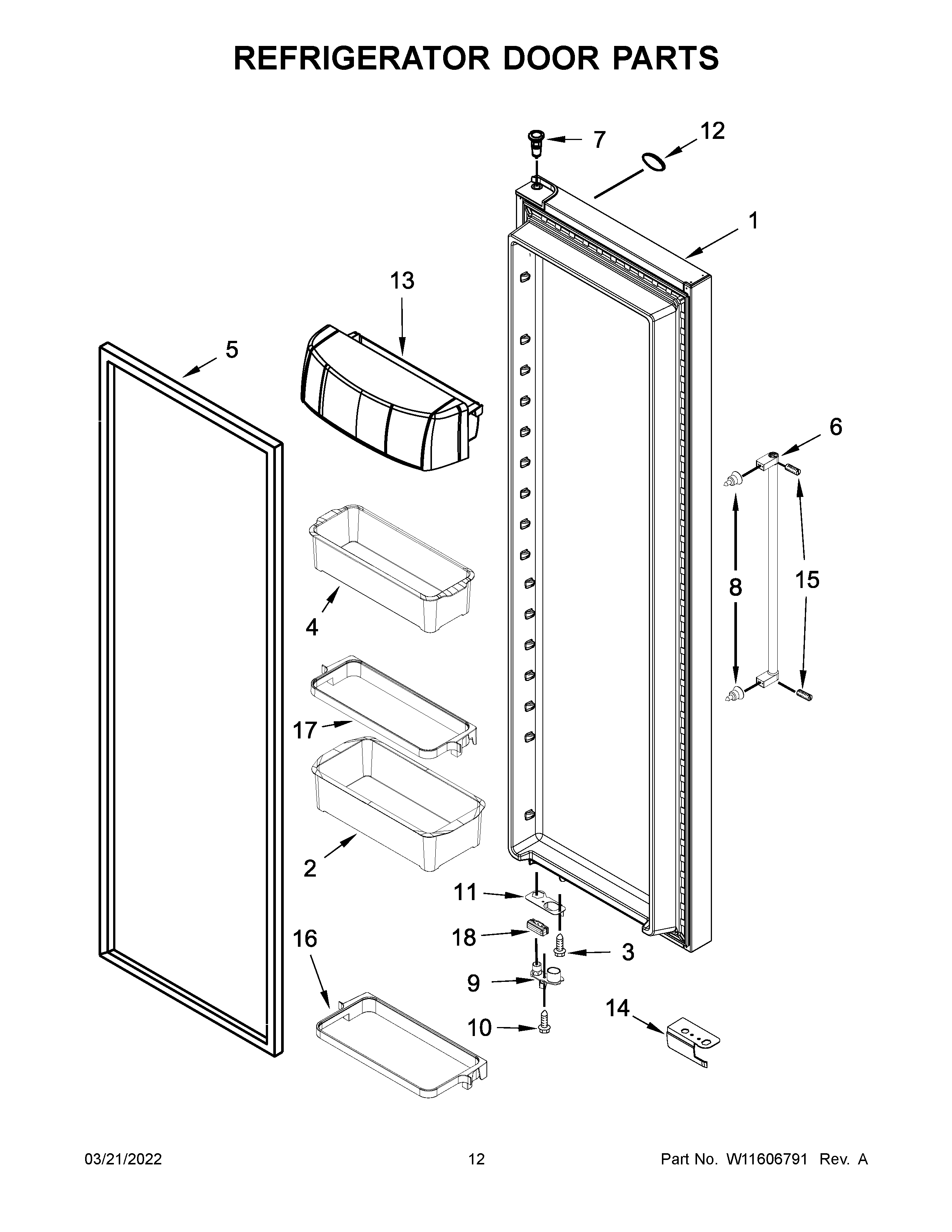

KRSF705HPS04 07 – REFRIGERATOR DOOR PARTS

KRSF705HPS04 07 – REFRIGERATOR DOOR PARTS

Written by

in

KRSF705HPS04 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11395841 Whirlpool Refrigerator Door Assembly
1AW11395840 Whirlpool Refrigerator Door Assembly
2WPW10316457 Whirlpool Refrigerator Gallon Door Bin
3SCREW
4WPW10316461 Whirlpool Refrigerator Door Shelf Bin Clear
5AWPW10249912 Whirlpool Refrigerator FIP Gasket
5W10355582 Whirlpool Refrigerator Door Gasket
6W11340150 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9AWPW10257201 Whirlpool Door Closing Cam
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10SCREW
11W11037957 Whirlpool Refrigerator Bracket
12W10839793 Whirlpool Refrigerator Nameplate
13WPW10324760 Whirlpool Refrigerator Door Shelf Bin
14AW10789145 Whirlpool Refrigerator Wire Cover
14W11661847 Whirlpool Wire Cover
15SCREW
16WPW10494334 Whirlpool Bin Frame
17WPW10494333 Whirlpool Refrigerator Silver Door Bin Frame
18W11573367 Whirlpool Refrigerator Door Bumper
18AW10407187 Whirlpool Refrigerator Door Bumper
