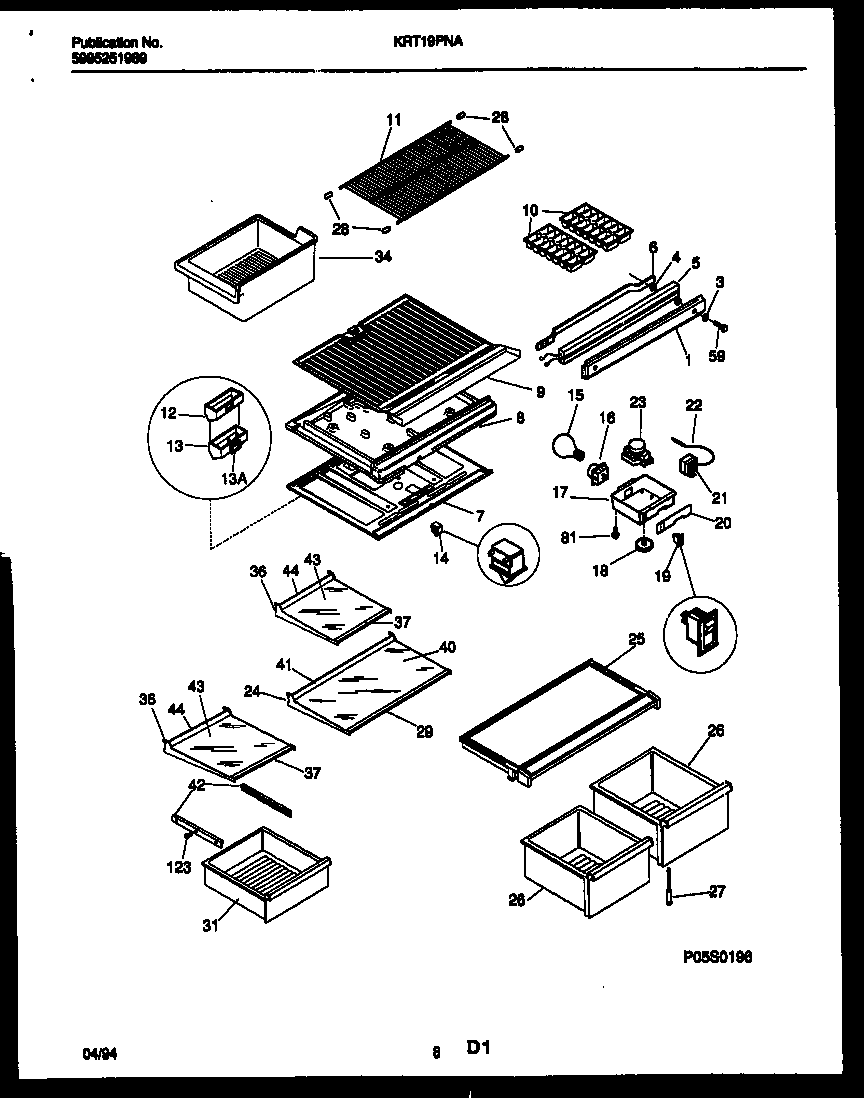

KRT19PNAD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*44787LOCK-SHELF TRIM, REAR
*44787WCI 215339900
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7BWCI 5303001380
7TOP PANEL-REFR, W/SNAP BUSHING
7ABUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8DIVIDER, STYROFOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
17ANUT, ANCHOR (NI)
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21WCI 5303200810
21AWCI 5303001260
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 215069002
25WCI 5308010006
26WCI 215791914
26WCI 5303300252
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 5303295982
29AWCI 5303209274
31WCI 5303300253
345303212918 Frigidaire Refrigerator Cont
36FRAME-HALF SHELF
37WCI 5303295981
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
40WCI 215723517
41TRIM-SHELF, 26.12“, REAR
42HANGER-PAN/BASKET, RH
42HANGER-PAN/BASKET, LH
43WCI 215723514
44TRIM-SHELF, 12.59“, REAR
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
