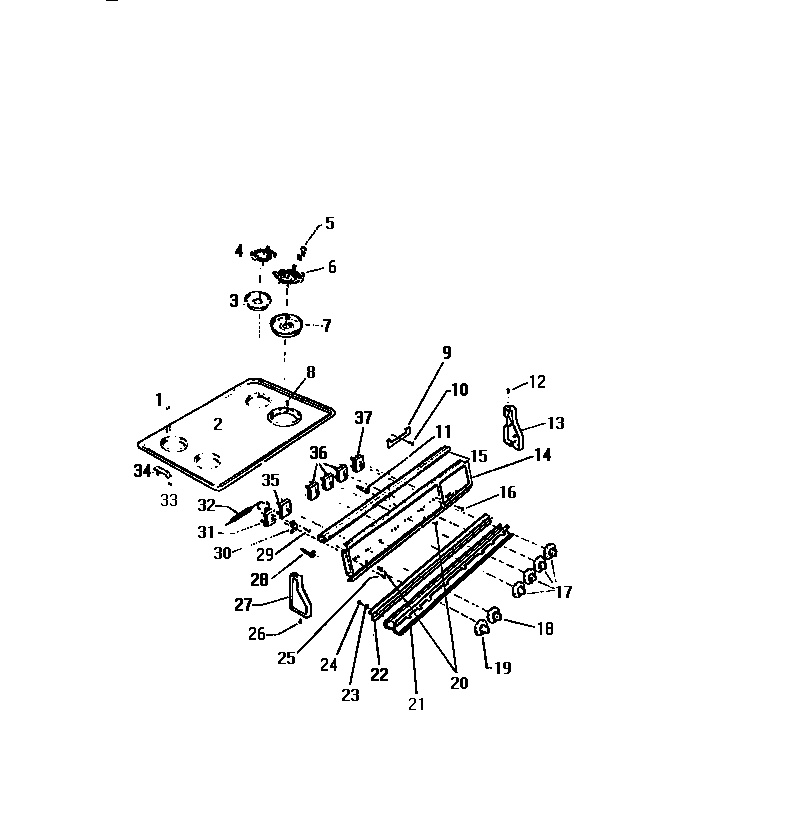

KS220GDD1 02 – BACKGUARD

Products

Position	Product
2	WCI K1317553
3	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4	318372210 Frigidaire Oven Range 6" 1250W Surface Element
5	5303935058 Frigidaire Oven Burner Receptacle Kit
6	316442300 Frigidaire Oven 2100W Coil Element 8
7	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
8	5308014215 Frigidaire Oven Screw
9	WCI K1317218
9A	WCI K1316744
10	131243700 Frigidaire Screw
13	WCI K1316502
14	WCI K5089501
15	WCI K1316506
16	SCREW
17	WCI K5088101
18	WCI K5088107
19	WCI K5088104
20	LENS
21	WCI K1319752
22	WCI K1324928
23	WCI KGM9423534
25	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
26	WCI K1164566
27	WCI K1316503
28	PILOT LIGHT, OVEN, 250 V
29	SCREW
30	BRACKET
31	THERMOSTAT
32	WCI K1305350
33	WCI K1164550
34	WCI K1317482
35	SWITCH SELEC.
36	5303935086 Frigidaire Oven Top Burner Switch Kit
