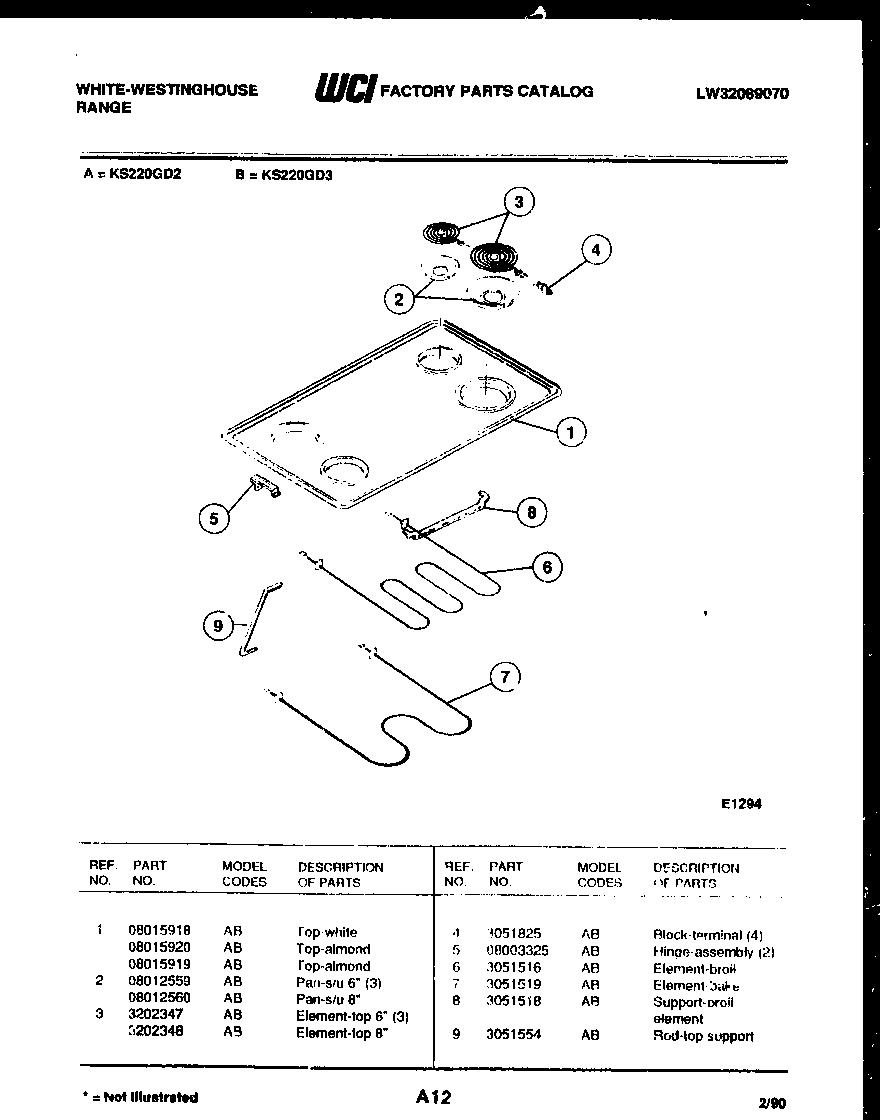

KS220GDD2 04 – COOKTOP AND BROILER PARTS

KS220GDD2 04 – COOKTOP AND BROILER PARTS

Written by

in

KS220GDD2 04 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 08015920
1WCI 08015919
2A316048413 Frigidaire Oven Range Chrome 8" Drip Bow
2316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
3A316442300 Frigidaire Oven 2100W Coil Element 8
3318372210 Frigidaire Oven Range 6" 1250W Surface Element
45303935058 Frigidaire Oven Burner Receptacle Kit
5HINGE ARM (2)
65303051516 Frigidaire Broil Element
75303051519 Frigidaire Oven 2600W Bake Element
8HANGER – BROIL UNIT
9ROD-TOP SUPPORT
