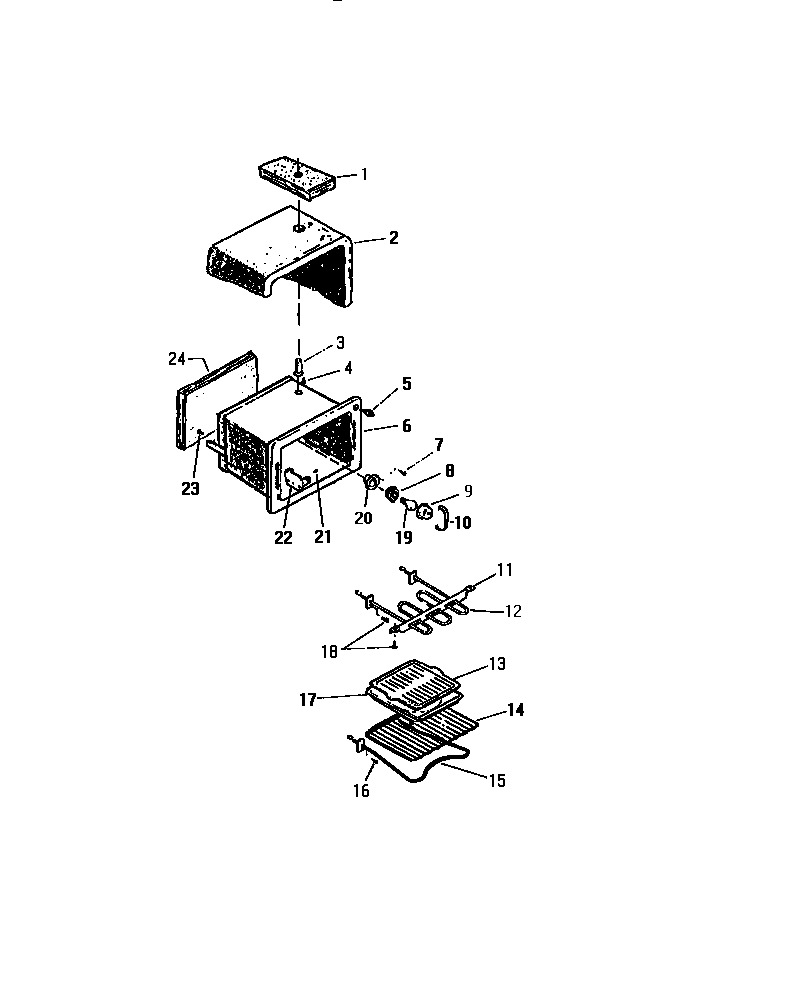

KS220GDH1 04 – CAVITY & SIDE

KS220GDH1 04 – CAVITY & SIDE

Written by

in

KS220GDH1 04 – CAVITY & SIDE

Products

PositionProduct
1WCI K1314863
2INSULATION, WRAP
3WCI K1316556
4SCREW
5WCI K5294301
6WCI K1325537
8316116400 Frigidaire Oven Light Socket
95304524341 Frigidaire Lens
10RETAINING WIRE
11HANGER
125303051516 Frigidaire Broil Element
13WCI K1317972
14RACK (2)
155303051519 Frigidaire Oven 2600W Bake Element
17WCI K1317973
19WCI Q63749
20CUP, OVEN LT
2108002868 Frigidaire 0 Screw Assembly
22BRACKET THERM. BULB
24INSULATION, BACK
