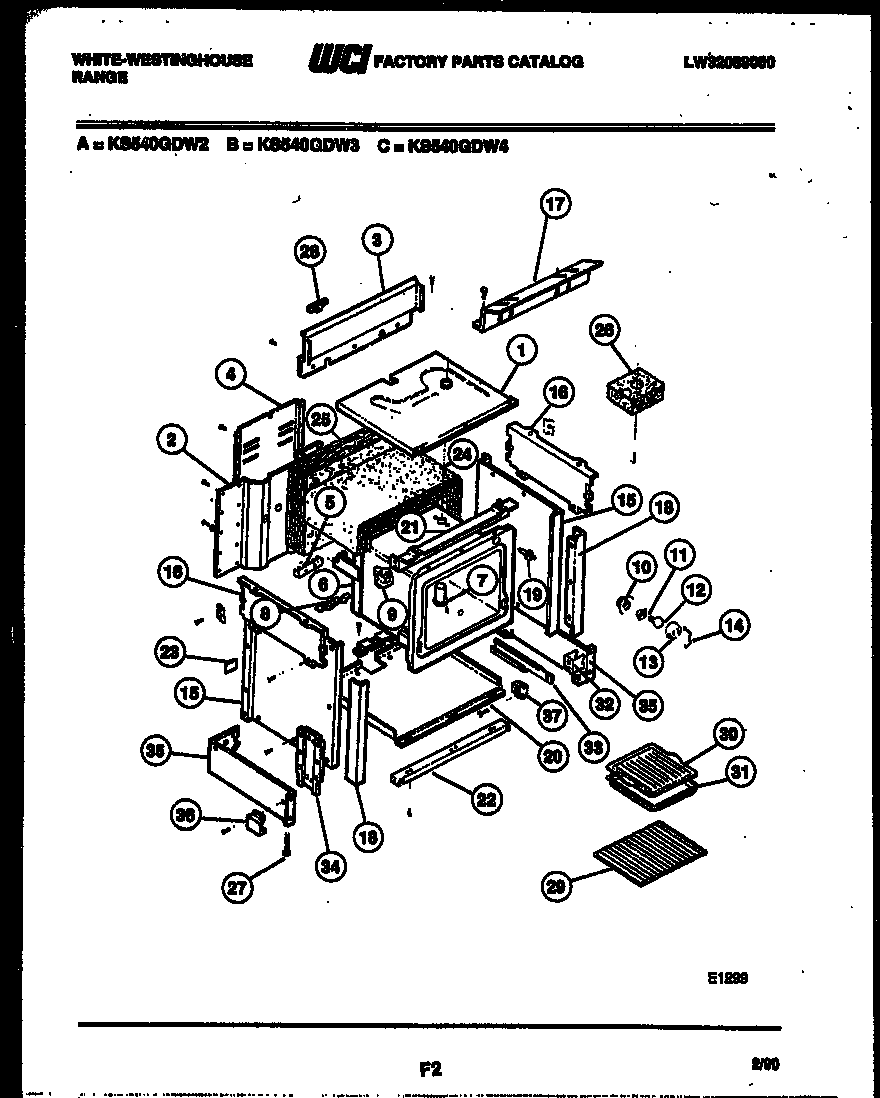

KS540GDW3 06 – BODY PARTS

Products

Position	Product
*26252	ANTI-TIP KIT
1	WCI 3051553
2	BACK
3	WCI 08008689
4	PANEL – WIRE COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
6	WCI 3206193
7	WCI 08003333
8	WCI 3203574
9	BRACKET-THERMO BULB (2)
10	HOUSING – LIGHT
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	WCI 08011087
15	SHIELD-INSULATION (2)
16	PANEL-UPPER SIDE (2)
17	WCI K5113502
18	WCI 3051777
19	SWITCH-DOOR
20	SHIELD-BOTTOM
21	WCI 08008693
22	WCI 08012722
23	PLATE-FILLER
24	INSULATION – OVEN WRAP
25	INSULATION-OVEN BACK
26	INSUL.-VENT TUBE
27	SCREW-LEVELING (4)
28	BRACKT-HNG SUPT
29	316067902 Frigidaire Oven Rack
30	WCI 3131356
31	WCI 3013568
32	SPACER, DRAWER RAIL (2)
33	GLIDE – DWR RH
33	GLIDE – DWR LH
34	SUPPORT-FRONT (2)
35	WCI 3051781
35A	WCI 3051780
36	SHIELD-TOE (2)
37	GUIDE-DRAWER FRNT (2)
