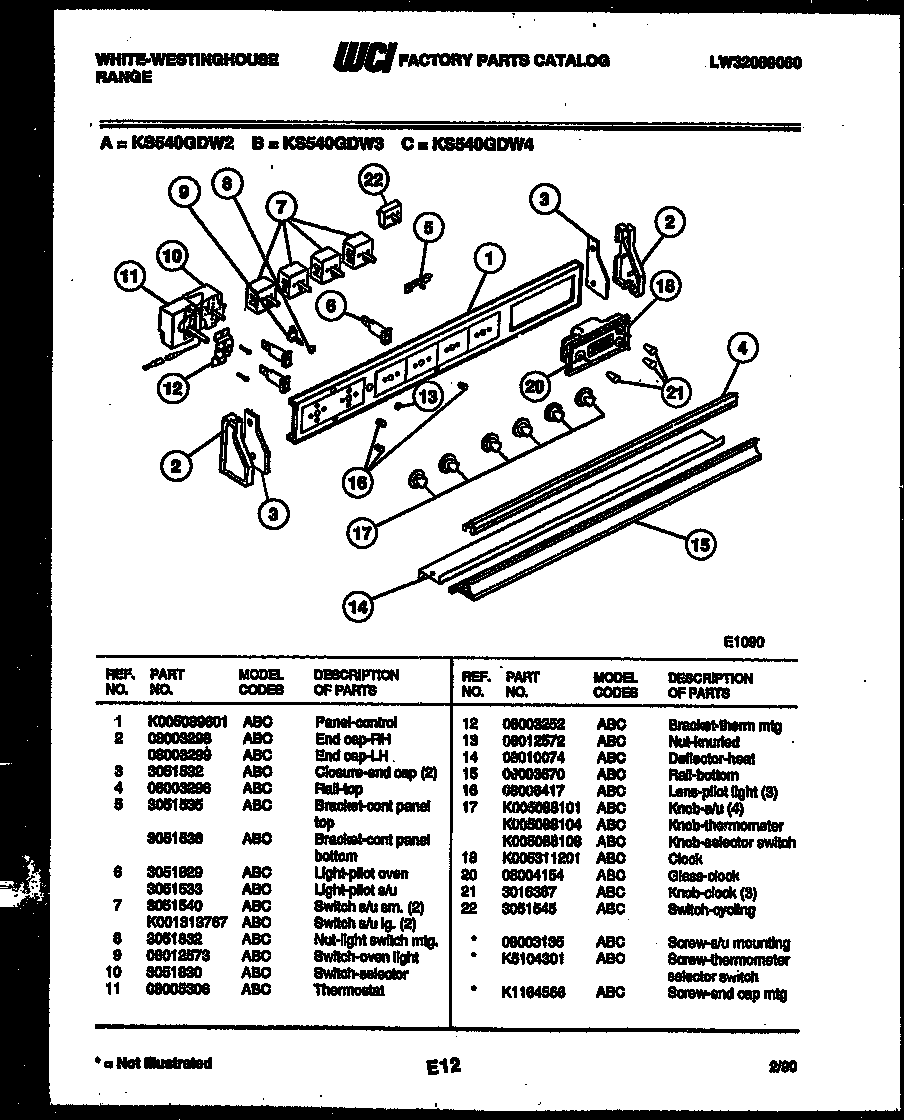

KS540GDW4 02 – CONTROL PANEL

Products

Position	Product
*26239	WCI 08003135
*26239	WCI K1164566
*26239	SCREW - THERMO BRACKET 6-32 X 3/16 (2)
1	WCI K005089601
2A	WCI 08003299
2	END CAP RH
3	WCI 3051532
4	WCI 08003296
5A	BRKT-LWR CNTL PNL
5	BRKT-UPPER CONTL PNL
6A	LIGHT-PILOT SURFACE UNIT
6	WCI 3051829
7	5303935086 Frigidaire Oven Top Burner Switch Kit
8	NUT - HEX FLAT
9	WCI 08012573
10	WCI 3051830
11	WCI 08005306
12	WCI 08003252
13	NUT-KNURLED
14	WCI 08010074
15	WCI 08003670
16	WCI 08006417
17B	WCI K005088108
17A	WCI K005088104
17	WCI K005088101
18	WCI K005311201
20	WCI 08004154
21	WCI 3016387
22	CYCLING SW
