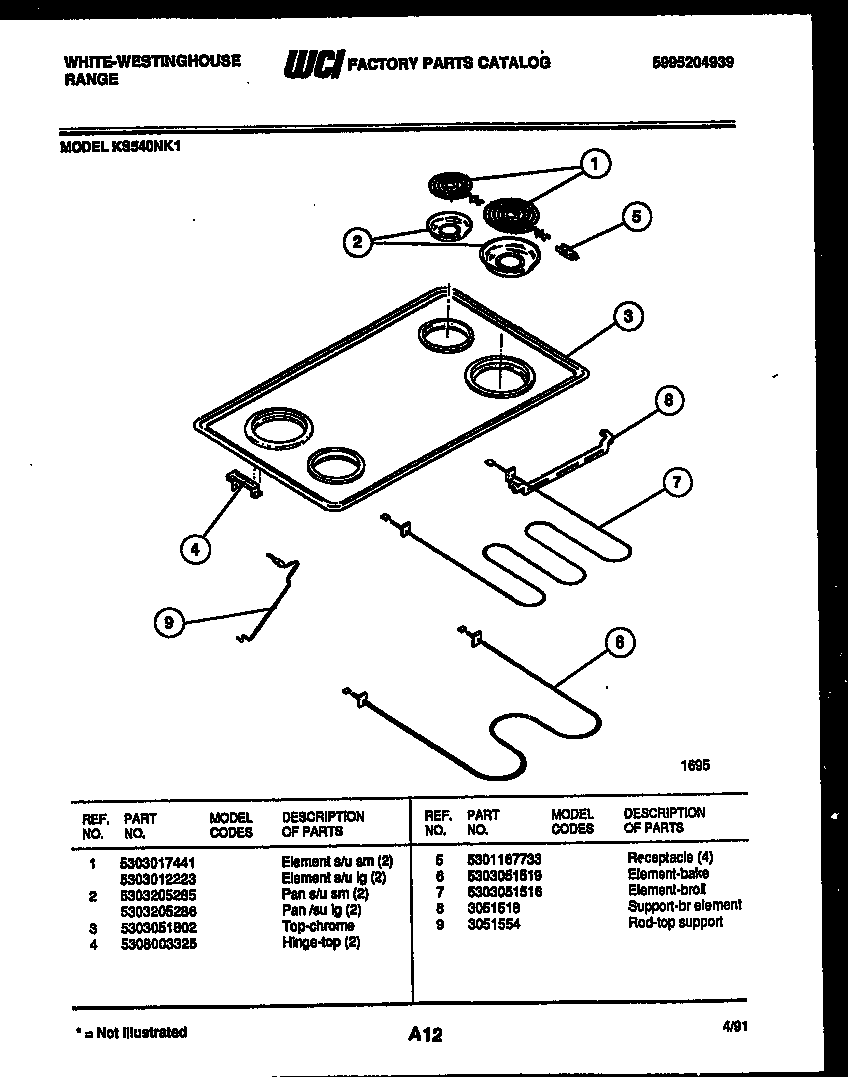

KS540NKW1 03 – COOKTOP AND BROILER PARTS

KS540NKW1 03 – COOKTOP AND BROILER PARTS

Written by

in

KS540NKW1 03 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1318372211 Frigidaire Oven 6" Electric Range Burner Kit
1A316442301 Frigidaire Oven 8 Coil Element 2600W
2A316048413 Frigidaire Oven Range Chrome 8" Drip Bow
2316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
3TOP-CHROME
4HINGE ASSEMBLY (2)
55303935058 Frigidaire Oven Burner Receptacle Kit
65303051519 Frigidaire Oven 2600W Bake Element
75303051516 Frigidaire Broil Element
8HANGER – BROIL UNIT
9ROD-TOP SUPPORT
