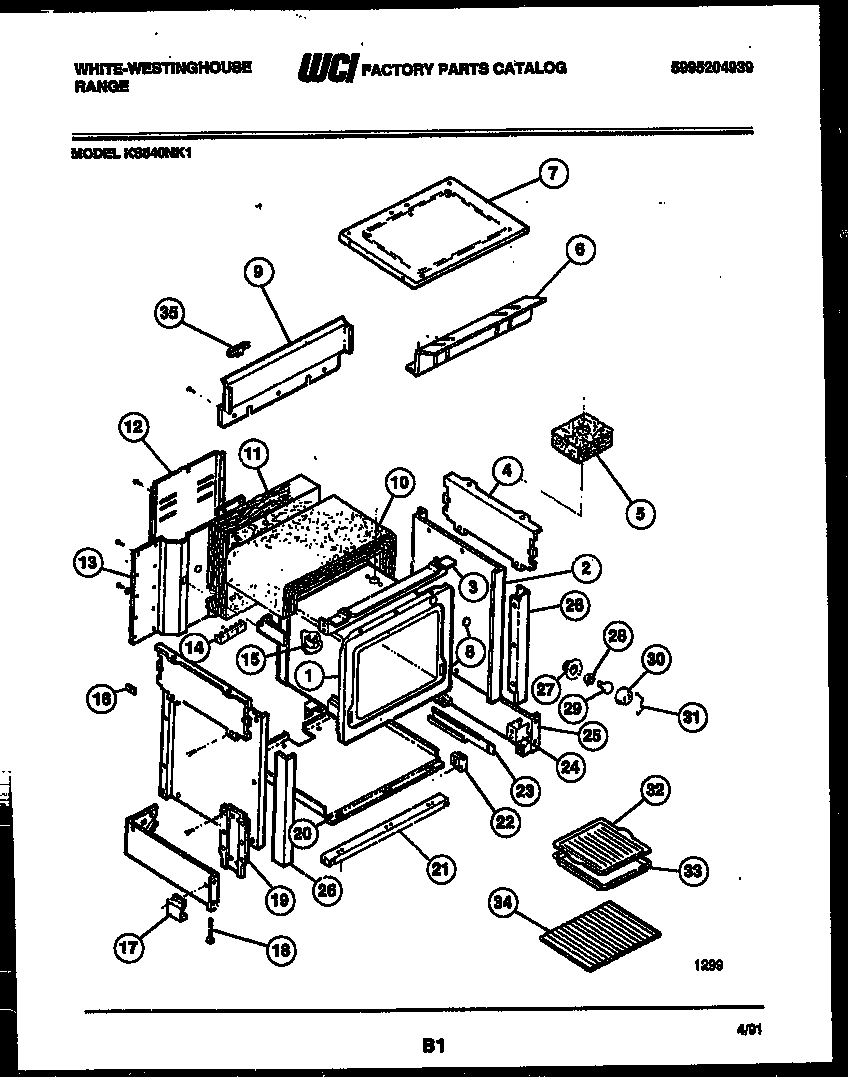

KS540NKW1 05 – BODY PARTS

Products

Position	Product
*44174	WCI 3934058
1	WCI 5303206193
2	SHIELD-INSULATION (2)
3	WCI 5308008693
4	WCI 5308015935
5	INSUL.-VENT TUBE
6	WCI 5303271384
7	WCI 5303051553
8	WCI 5301314211
9	BACK-UPPER
10	INSULATION – OVEN WRAP
11	INSULATION
12	PANEL – WIRE COVER
13	BACK
14	5304409888 Frigidaire Oven Terminal Block with Hardware
15	BRACKET-THERMO BULB (2)
16	PLATE-FILLER
17	SHIELD-TOE (2)
18	SCREW-LEVELING (4)
19	WCI 5305080001
20	SHIELD-BOTTOM
21	WCI 08012722
22	GUIDE-DRAWER FRNT (2)
23A	GLIDE – DWR LH
23	GLIDE – DWR RH
24	SPACER, DRAWER RAIL (2)
25A	WCI 5301324083
25	WCI 5301324082
26	WCI 3051777
27	WCI 5303271606
28	316116400 Frigidaire Oven Light Socket
29	316538904 Frigidaire Oven Lamp Light
30	5304524341 Frigidaire Lens
31	RETAINER-LENS
32	WCI 5303131356
33	PAN-BROILER
34	316067902 Frigidaire Oven Rack
35	BRACKT-HNG SUPT
