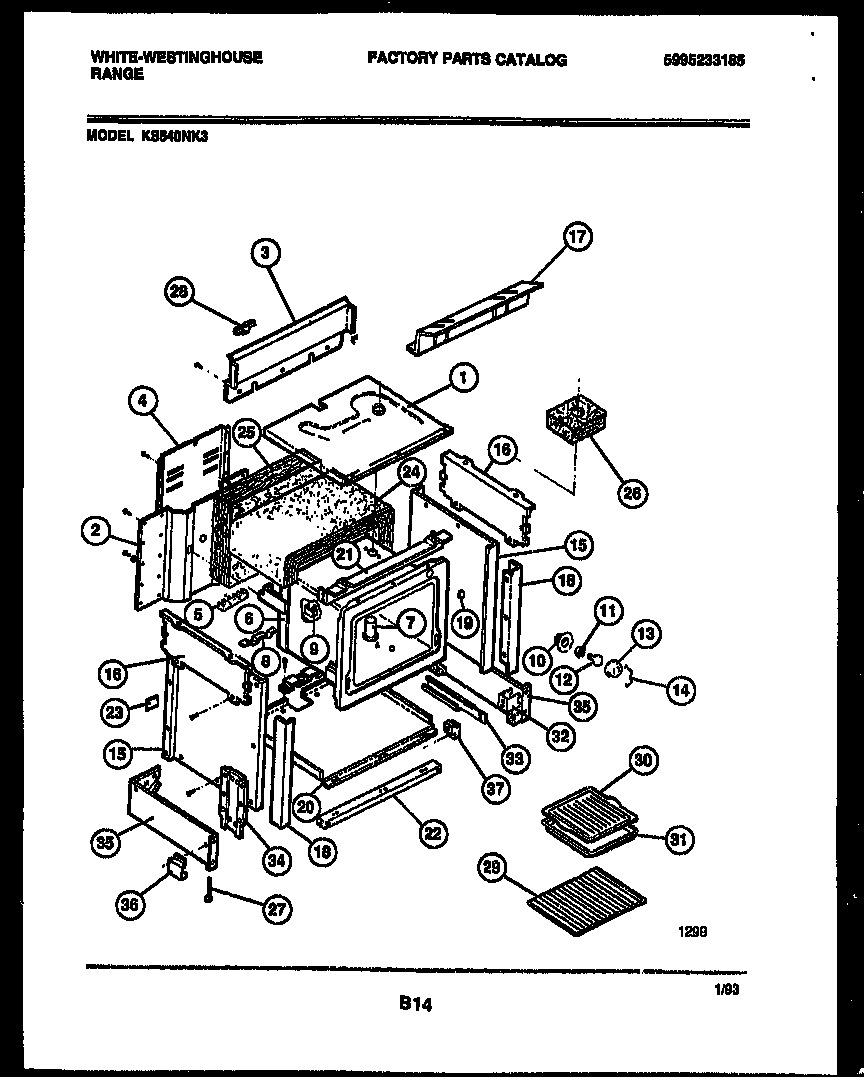

KS540NKW3 05 – BODY PARTS

KS540NKW3 05 – BODY PARTS

Written by

in

KS540NKW3 05 – BODY PARTS

Products

PositionProduct
*72475WCI 5303280340
*72474WCI 3934058
*72475WIRING DIAGRAM (NOT FOR PURCHASE.)
*72475WCI 5303280341
1WCI 5303293414
2WCI 5303280344
3WCI 5303286183
4WIRE, COVER
55304409888 Frigidaire Oven Terminal Block with Hardware
6WCI 5303295579
7WCI 08012254
8PLATE=GROUND STRAP
9BRACKET-THERMO BULB (2)
10WCI 3051511
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
135304524341 Frigidaire Lens
14RETAINER-LENS
15SHIELD-INSULATION (2)
16WCI 5308015935
17WCI 316039801
18WCI 3051777
19WCI 5301314211
20SHIELD-BOTTOM
21WCI 5303293900
22WCI 08012722
23PLATE-FILLER
24INSULATION – OVEN WRAP
25INSULATION
26WCI 3008673
27SCREW-LEVELING (4)
28BRACKT-HNG SUPT
29316067902 Frigidaire Oven Rack
30BROILER GRILL
31BROILER PAN
32SPACER, DRAWER RAIL (2)
33WCI 5308015746
33ARAIL, DRAWER LH
34SUPPORT-FRONT (2)
35APANEL-SIDE LH
35PANEL-SIDE RH
36SHIELD-TOE (2)
37GUIDE-DRAWER FRNT (2)
