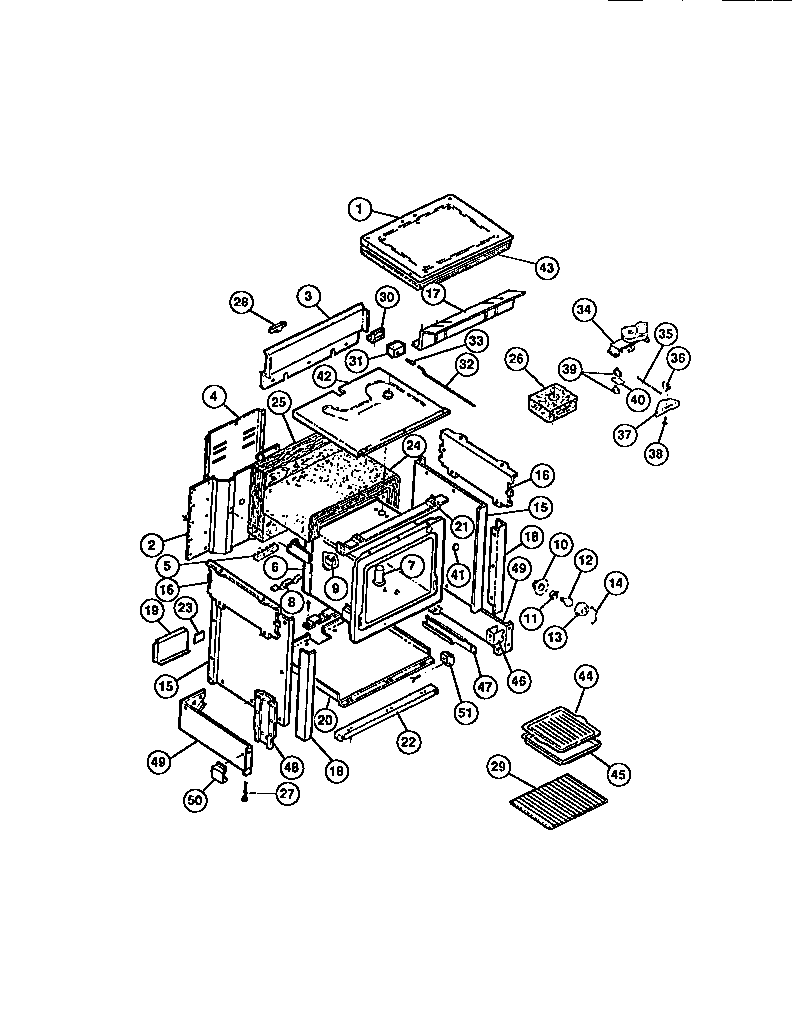

KS860GDD4 04 – BODY, SIDE PANELS

Products

Position	Product
*17640	WCI 191S021P36
*17641	ANTI-TIP KIT
1	WCI 5303051553
2	BACK
3	BACK-UPPER
4	WIRE, COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
6	WCI 3204607
7	VENT TUBE
8	WCI 5303209490
9	BRACKET-THERMO BULB
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	RETAINER-LENS
15	SHIELD-INSULATION (2)
16	WCI 5308015935
18	WCI 3051777
19	WCI 3051634
20	SHIELD-BOTTOM
21	WCI 08008686
22	WCI 08012722
23	PLATE-FILLER
24	INSULATION-OVEN BACK
25	INSULATION
26	INSUL.-VENT TUBE
27	SCREW-LEVELING (4)
28	BRACKT-HNG SUPT
29A	RACK-OFFSET
29	316067902 Frigidaire Oven Rack
30	BRACKET-DOOR SW
31	SWITCH, DOOR
32	WCI 5301167845
33	WCI 08007444
34	LATCH, MOTOR
35	WCI 3051649
36	LATCH-DOOR
37	HOUSING-DOOR LATCH
38	AXLE – HINGE (2)
39	SWITCH – UPPER
39A	SWITCH-LOWER
40	WCI 08003090
41	BUTTON-PLUG
42	SHIELD-INSUL. TOP
43	INSULATION-LINER (NON-ILLUSTRATED)
44	WCI 5303131356
45	WCI 5303207208
46	SPACER, DRAWER RAIL (2)
47	RAIL, DRAWER LH
47A	WCI 5308015746
48	SUPPORT-FRONT (2)
49	WCI 5301324083
49A	WCI 5301324082
50	WCI 5305113502
51	GUIDE-DRAWER FRNT (2)
