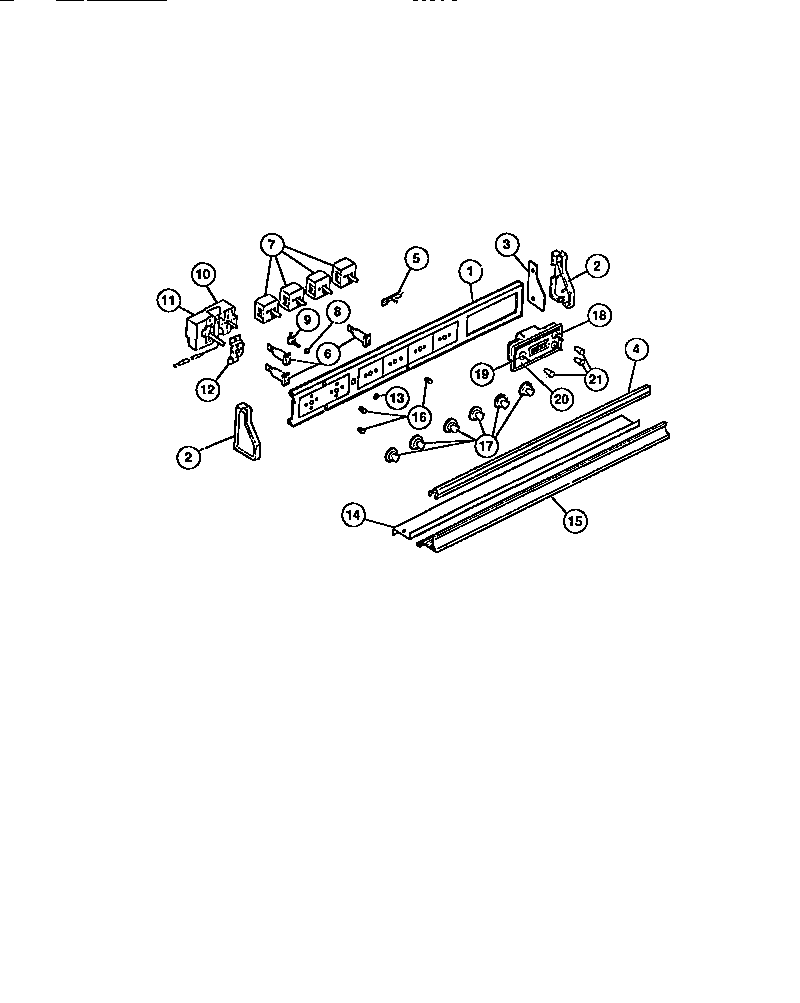

KS860GDD4 05 – BACKGUARD

Products

Position	Product
1	WCI 5305089701
2A	WCI 5308003299
2	WCI 5308003298
3	WCI 5303051532
4	WCI 3051482
5A	WCI 5303051536
6A	LIGHT-LAMP/INDICATOR
6	LIGHT-SIGNAL S/U
7	5303935086 Frigidaire Oven Top Burner Switch Kit
8	NUT – HEX FLAT
9	WCI 5308012573
10	WCI 5308015771
11	WCI 5301324563
12	BRKT-THERM MTG.
13	WCI K005051701
14	WCI 5308010074
15	WCI 5308003670
16	LENS (2)
17B	WCI 5305088106
17A	WCI K005088102
17	WCI 5305088101
18	WCI 5303208690
19	WCI 5301166856
20	WCI 3200797
21	WCI 5301167676
21A	SCREW, SURFACE UNIT MOUNTING (NON-ILLUSTRATED)
21B	SCREW, THERMOSTAT SELECTOR SWITCH (NON-ILLUSTRATED)
21C	WCI 5301164566
