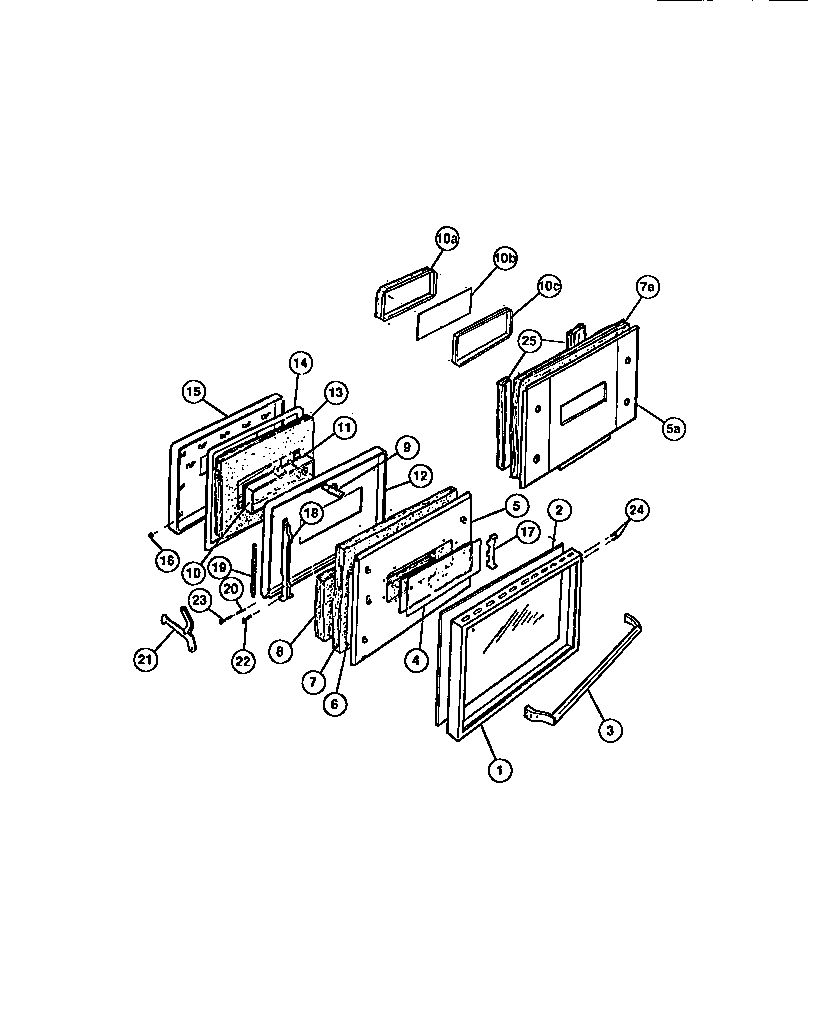

KS860GDD5 02 – DOOR

Products

Position	Product
1	WCI 5308015938
2	GLASS, OUTER, BLACK
3	WCI 5303207187
5A	WCI 5303269570
7A	INSULATION-AIRWASH
8	INSULATION-LINER (NON-ILLUSTRATED)
9	WCI 5301167830
10C	WCI 5303269564
10A	WCI 5303269679
10B	GLASS-OVEN DOOR, HEAT BARRIER, (2)
11	GASKET-GLASS
12	LINER, DOOR
13	WCI 5303269528
14	SEAL, DOOR
15	WCI 5303269674
16	BUTTON PLUG
18	CHANNEL (2)
19	WCI 5308003186
20	WCI 5301167543
21	DOOR HINGE ARM
22B	08002868 Frigidaire 0 Screw Assembly
22	AXLE – HINGE (2)
23	WCI 5303051567
24	WCI 5303051860
25	WCI 5303269530
