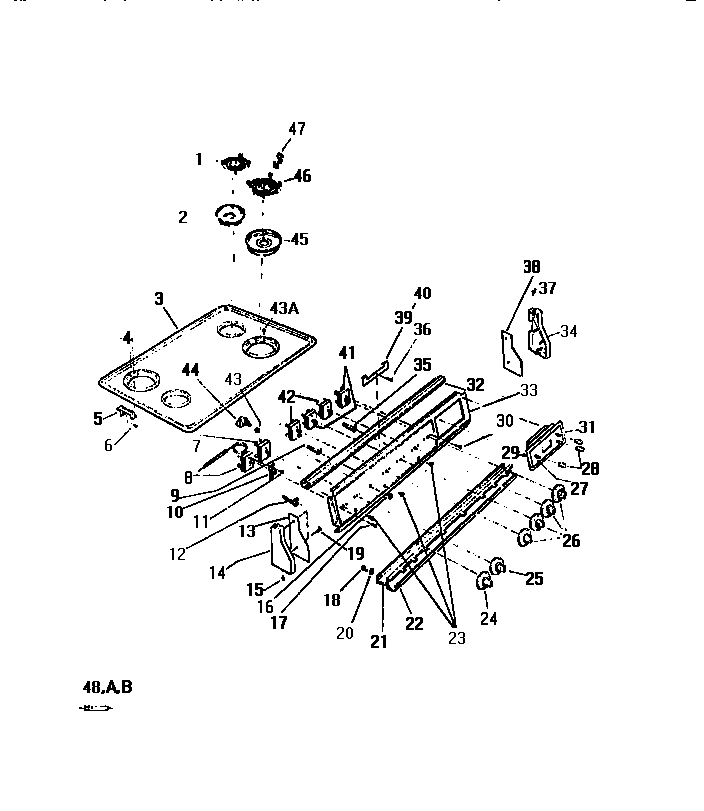

KS860GDK1 02 – BACKGUARD

Products

Position	Product
1	318372211 Frigidaire Oven 6" Electric Range Burner Kit
2	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
3	WCI K5079201
5	WCI K1317482
6	WCI K1164550
7	SWITCH-OVEN SELECT
8	WCI K1324563
10	WCI K5267104
12	WCI K5046102
14	WCI K1316503
16	WCI K5051701
17	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
19	SCREW
20	WCI KGM9423534
21	WCI K1324928
22	WCI K1319752
23	LENS
24	WCI K5088102
25	WCI K5088106
26	WCI K5088101
27	WCI K1167584
28	KNOB, TIMER
29	BEZEL
31	WCI K5036801
32	WCI K1316506
33	WCI K5089701
34	WCI K1316502
35	WCI K5005801
36	WCI K1164517
37	WCI K1164566
38	WCI K5308301
39	WCI K1316744
40	WCI K1317218
42	5303935086 Frigidaire Oven Top Burner Switch Kit
43A	5308014215 Frigidaire Oven Screw
43	NUT – HEX – LAMP SW. (2)
44	WCI K5051801
45	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
46	316442301 Frigidaire Oven 8 Coil Element 2600W
47	5303935058 Frigidaire Oven Burner Receptacle Kit
48	WCI K5044001
48B	WCI K5044102
48A	WCI K5044101
