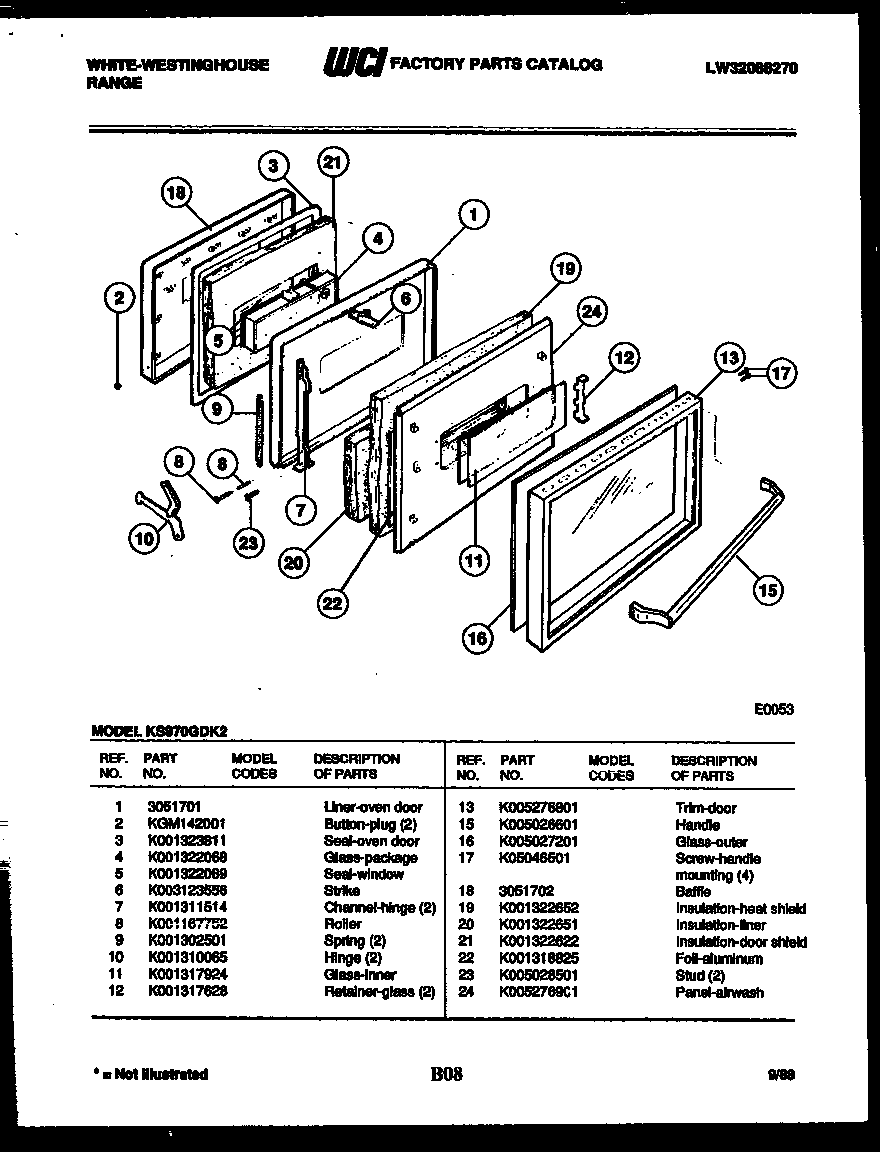

KS970GDKD2 03 – DOOR PARTS

KS970GDKD2 03 – DOOR PARTS

Written by

in

KS970GDKD2 03 – DOOR PARTS

Products

PositionProduct
1LINER-DOOR
2WCI KGM142001
3WCI K001323811
4WCI K001322068
5WCI K001322069
6WCI K003123556
7CHANNEL (2)
8ROLLER KIT (2)
9WCI K001302501
10HINGE ARM ASSY (2)
11WCI K001317924
12WCI K001317628
13WCI K005276801
15WCI K005026601
16GLASS-OUTER
17WCI K05046501
18LINER-SHIELD
19WCI K001322652
20WCI K001322651
21WCI K001322622
22WCI K001318825
23WCI K005028501
24WCI K005276901
