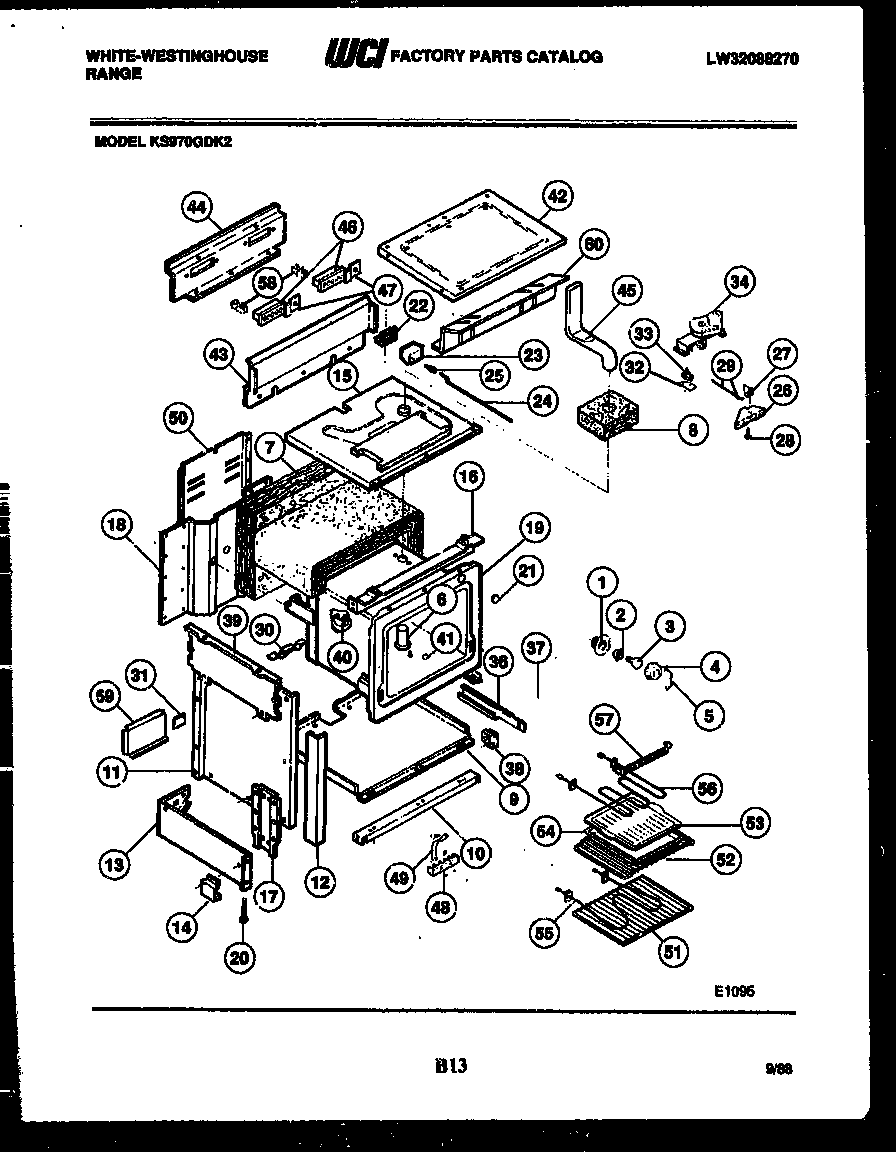

KS970GDKH2 08 – BODY PARTS

Products

Position	Product
*16137	WCI K005056901
1	WCI K001325530
2	316116400 Frigidaire Oven Light Socket
3	WCI K001186186
4	5304524341 Frigidaire Lens
5	WCI K001325529
6	WCI K005055201
7	WCI K001311331
8	WCI K001314863
9	WCI K005291501
10	CHANNEL-OVEN SUPT
11	RETAINER-INSULATION SIDE (2)
12	WCI K001324086
13	PANEL-SIDE RH
13A	PANEL-SIDE LH
14	WCI K001325189
15	WCI K001324096
16	WCI K001323503
17	WCI K005080001
18	WCI K005277902
19	LINER-OVEN
20	LEG-LEVELER (4)
21	PLUG-BUTTON 3/4``
22	WCI K001311371
23	WCI K001310199
24	WCI K001322683
25	WCI K001322682
26	WCI K001324830
27	WCI K005260202
28	WCI K005028501
29	WCI K005271201
30	WCI K005300901
31	PLATE-FILLER
32	INSULATOR (2)
33A	WCI K001315370
33	WCI K001167190
34	WCI K005151601
36	WCI K005269901
36A	WCI K005269902
37	SPACER-DRAWER RAIL (2)
38	GUIDE-DRAWER FRNT (2)
39A	WCI K001325719
39	PANEL-SIDE UPPER (2)
40	WCI K001311369
41	WCI KGM142017
42	WCI K005113302
43	WCI K001324696
44	WCI K001319109
45	WCI K001319102
46	WCI K001317078
47	WCI K001317076
48	5304409888 Frigidaire Oven Terminal Block with Hardware
49	STRAP-GROUND
50	WIRE COVER
51	316067902 Frigidaire Oven Rack
52	WCI K005133501
53	WCI K001313049
54	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
55	5303051519 Frigidaire Oven 2600W Bake Element
56	5303051516 Frigidaire Broil Element
57	SUPPORT-BROIL ELMT
58	WCI K005142301
59	WCI K005134501
60	WCI K005113502
