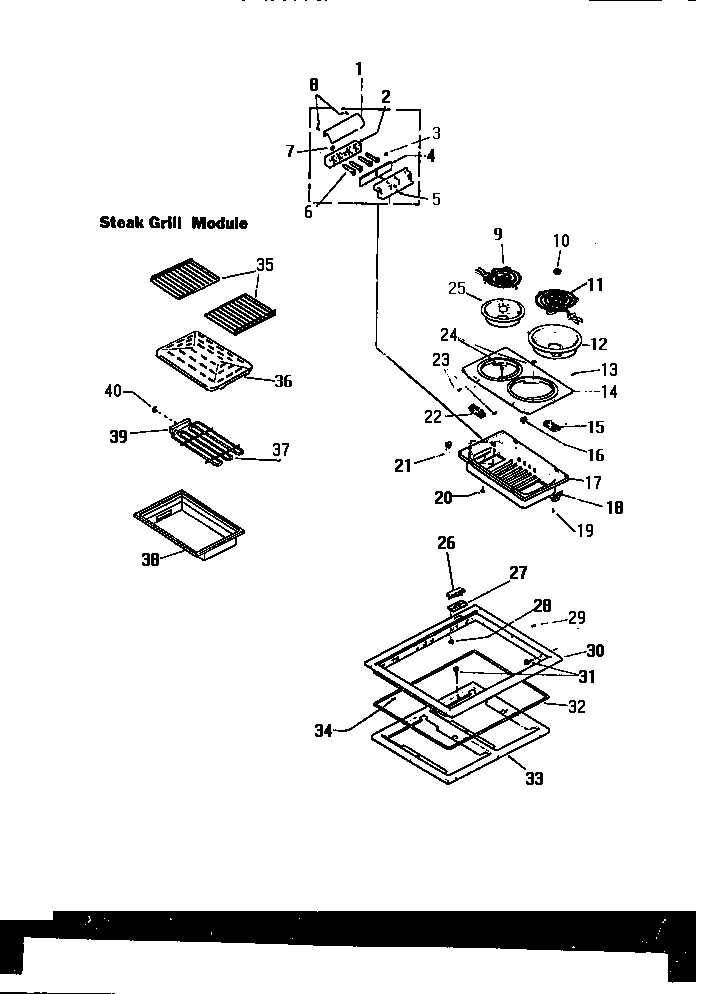

KS970GKD1 03 – COOKTOP FRAME & SURFACE UNIT

Products

Position	Product
1	WCI K5104101
3	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
4	WCI K1322317
5	WCI K1317223
6	WCI K1317226
7	WCI K1313432
9	WCI Q212674
10	WCI Q204334
11	WCI Q212714
12	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
14	WCI K1319123
17	WCI K5279001
18	WCI K1319198
21	WCI K5291001
22	5303935058 Frigidaire Oven Burner Receptacle Kit
23	SCREW, END CAP MOUNTING (4)
24	5308014215 Frigidaire Oven Screw
25	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
26	WCI K5130901
27	WCI K5264401
28	WCI K1164567
30	WCI K1325193
31	WCI K1164563
32	WCI K1018420
33	WCI K1324016
34	WCI K1164550
35	WCI K1323514
36	WCI K1323992
37	WCI K1323984
38	WCI K1323981
39	RECEPTACLE
40	WCI K1319095
