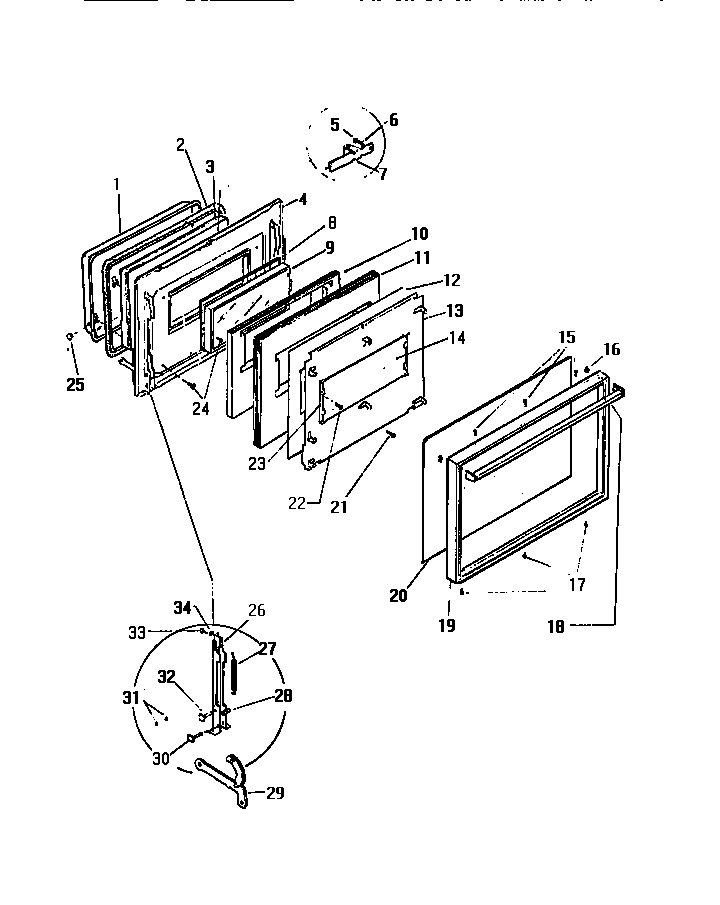

KS970GKD1 04 – DOOR

Products

Position	Product
1	WCI K1323752
2	GASKET
3	WCI K1322622
4	WCI K1324721
7	STRIKE ASSEMBLY
8	WCI K1322069
9	WCI K1322068
10	WCI K1322651
11	WCI K1322652
12	WCI K1318825
13	WCI K5276901
14	WCI 317924
16	SCREW
18	HANDLE ASSY (INCLUDES STANCHION)
19	FRAME – CHROME OVEN DOOR
20	WCI K5027201
21	WCI K1164557
23	RETAINER, GLASS (2)
24	08002868 Frigidaire 0 Screw Assembly
25	WCI KGM142001
26	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
27	WCI K1302501
28	ROLLER PACKAGE-OVEN DOOR (2)
29	ARM ASSY.
30	AXLE
31	WCI K1164650
32	RIVET
33	WCI K1164550
34	WASHER, PADDED
