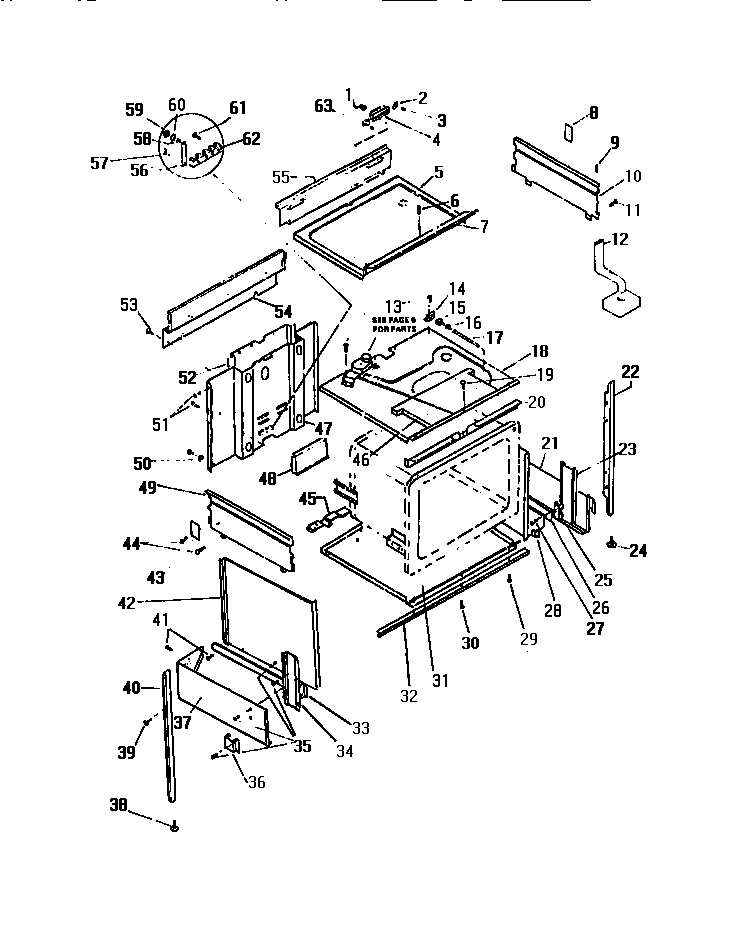

KS970GKD1 07 – OVEN CAVITY & PANELS

KS970GKD1 07 – OVEN CAVITY & PANELS

Written by

in

KS970GKD1 07 – OVEN CAVITY & PANELS

Products

Position	Product
1	WCI K5142301
3	WCI K1164563
4	WCI K1317078
5	WCI K5113302
7	WCI K5113502
9	WCI K1164517
10	WCI K1324038
12	WCI K1319102
14	WCI K1311371
15	SWITCH-DOOR
16	WCI K1322682
17	WCI K1322683
18	WCI K1324096
20	WCI K1323503
21	WCI K1324082
25	SPACER, RAIL
26	RAIL, DWR., RH
28	GUIDE
31	WCI K5291501
32	WCI K1324087
33	RAIL, DWR, LH
34	WCI K5080001
36	WCI K1325189
37	WCI K1324083
38	LEG
40	WCI K1324086
42	WCI K1324080
43	WCI K1324691
45	WCI K5300901
46	WCI K1325719
47	WCI K5277902
48	WCI K5134501
49	WCI K1324088
50	WCI Q410505
52	COVER, WIRE
54	WCI K1324696
55	WCI K1319109
56	STRAP-GROUND
57	08002868 Frigidaire 0 Screw Assembly
58	WASHER (6)
59	WCI Q401002
60	WCI Q500411
61	SCREW
62	TERMINAL BLOCK
63	WCI K1317076
