KS970GKD1 08 – OVEN CAVITY

KS970GKD1 08 – OVEN CAVITY

Written by

in

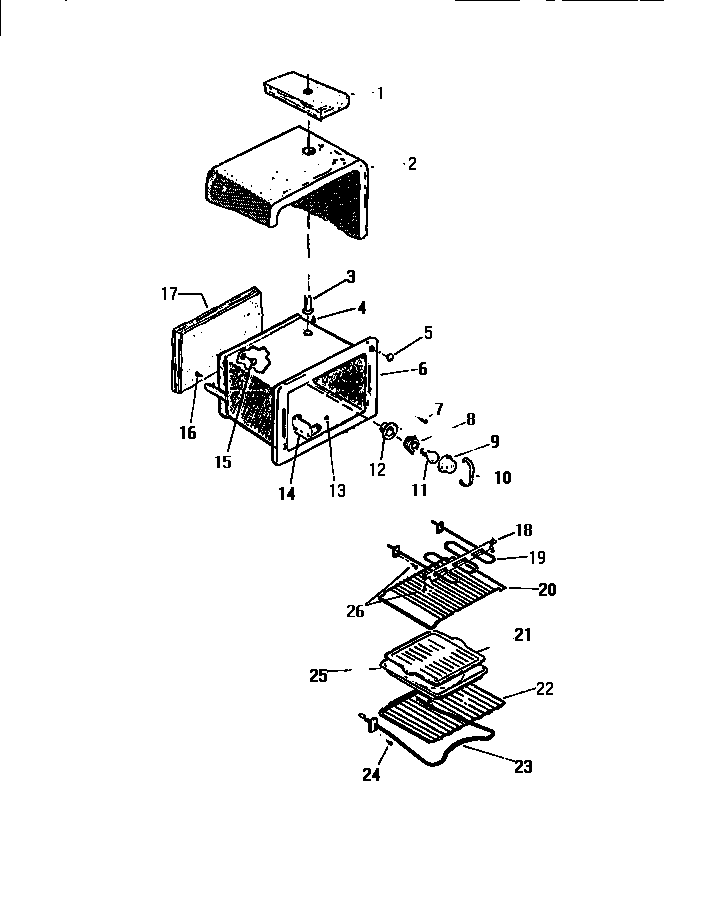

KS970GKD1 08 – OVEN CAVITY

Products

PositionProduct
1WCI K1314863
2WCI K1311331
3WCI K5055102
4SCREW
5PLUG-BUTTON 3/4“
6WCI K1325537
8316116400 Frigidaire Oven Light Socket
95304524341 Frigidaire Lens
10RETAINING WIRE
11WCI Q63749
12CUP, OVEN LT
14BRACKET THERM. BULB
15WCI KGM142017
17INSULATION-OVEN BACK
18HANGER
195303051516 Frigidaire Broil Element
20WCI K5133501
21WCI K1317972
22RACK (2)
235303051519 Frigidaire Oven 2600W Bake Element
25WCI K1317973
2608002868 Frigidaire 0 Screw Assembly
