KSB1325VB0 03 – UNIT PARTS – Aparts

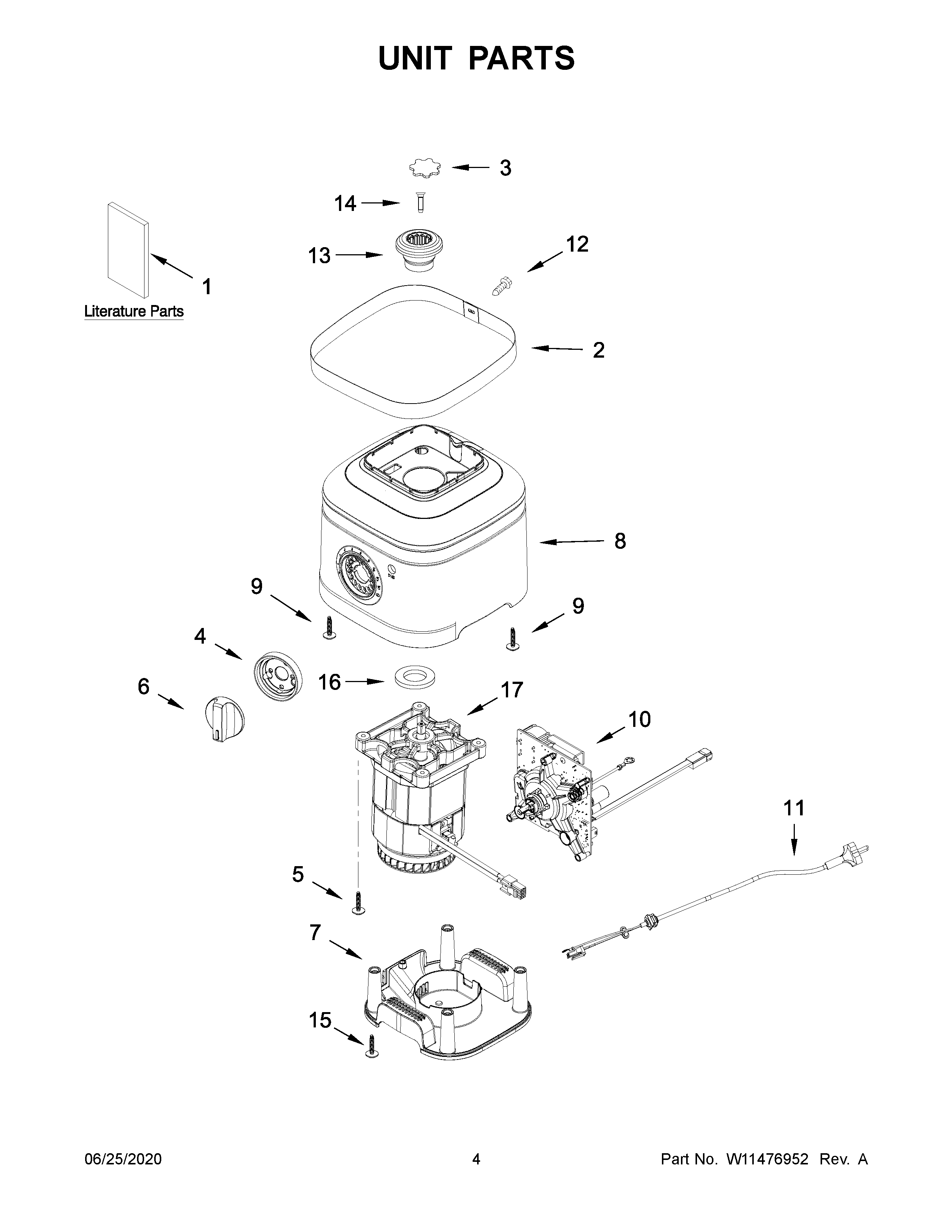

KSB1325VB0 03 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	TRIMBAND
3	W11486757 Whirlpool Coupling
4	BEZEL, ROTARY SWITCH
5	WP3395530 Whirlpool Screw
6	KNOB, ROTARY SWITCH
7	BASE
8A	W11212371 Whirlpool Housing
8C	UPPER BASE (BLUE VELVET)
8E	UPPER BASE (WHITE)
8B	UPPER BASE (PASSION RED)
8D	UPPER BASE (ONYX BLACK)
8	UPPER BASE (BLACK MATTE)
9	SCREW
10	ELECTRONIC CONTROL
11	POWER CORD
12	W10853069 Whirlpool Screw
13	COUPLER
14	W11486756 Whirlpool Screw
15	WP3400814 Whirlpool Screw
16	WP9709366 Whirlpool Seal
17	W11481676 Whirlpool Motor
