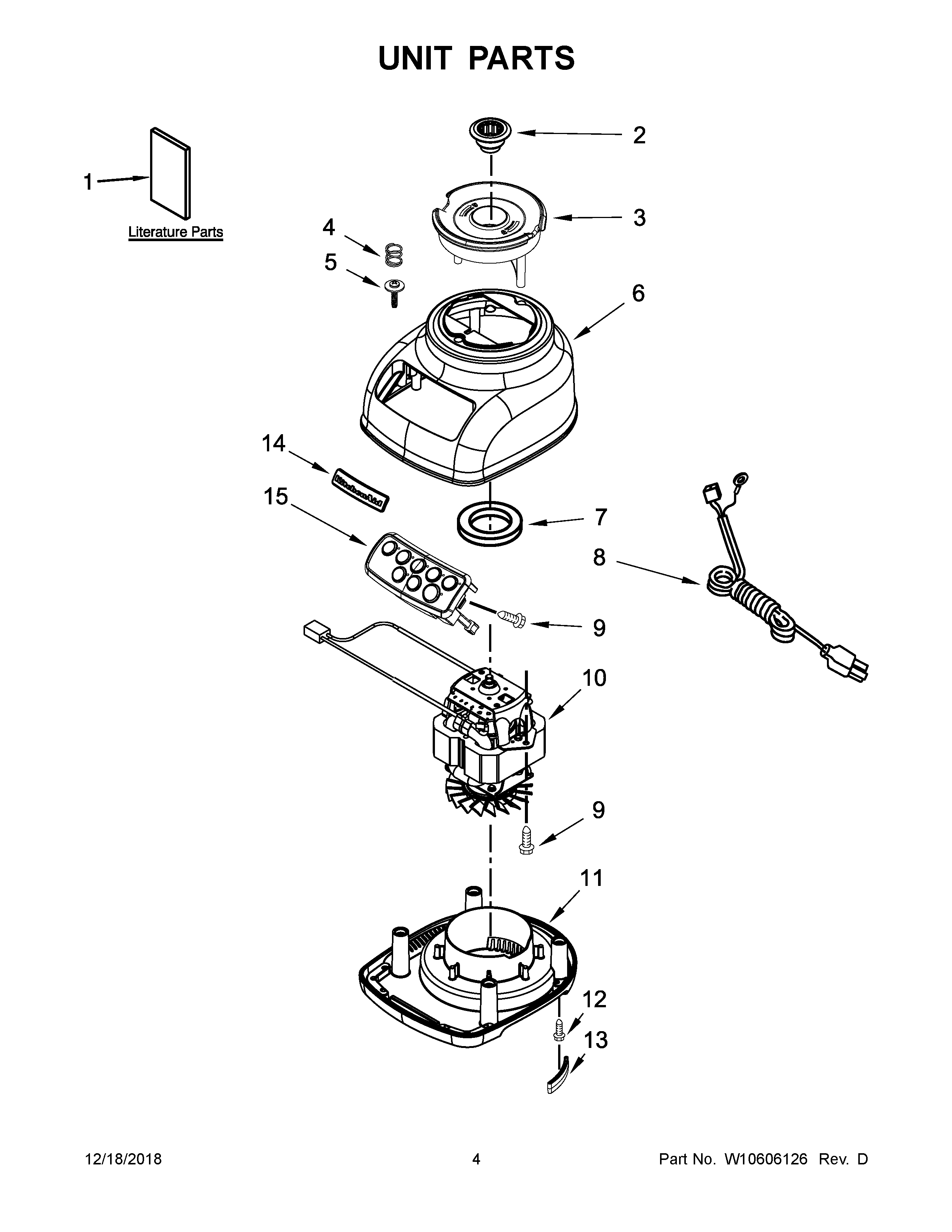

KSB1570AQ0 03 – UNIT PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	WPW10279256 Whirlpool Blender Drive Coupler
3	WPW10497275 Whirlpool Jar Lock Assembly
4	SPRING
5	W10859468 Whirlpool Screw
6G	HOUSING, UPPER (WHITE)
6E	HOUSING, UPPER (LIQUID GRAPHITE)
6C	HOUSING, UPPER (MATTE FOG BLUE)
6F	HOUSING, UPPER (SILVER)
6	HOUSING, UPPER (AQUA SKY)
6B	HOUSING, UPPER (ICE)
6D	W10646512 Whirlpool Housing
6A	HOUSING, UPPER (EMPIRE RED)
7	WP9709366 Whirlpool Seal
8	W11197488 Whirlpool Power Cord
9	W11164114 Whirlpool Screw
10	WPW10225872 Whirlpool Motor
11	W10497274 Whirlpool Base
12	WPW10068250 Whirlpool Dishwasher Screw
13	W11087504 Whirlpool Foot
14	W10514169 Whirlpool Nameplate
15	W11568600 Whirlpool Control
