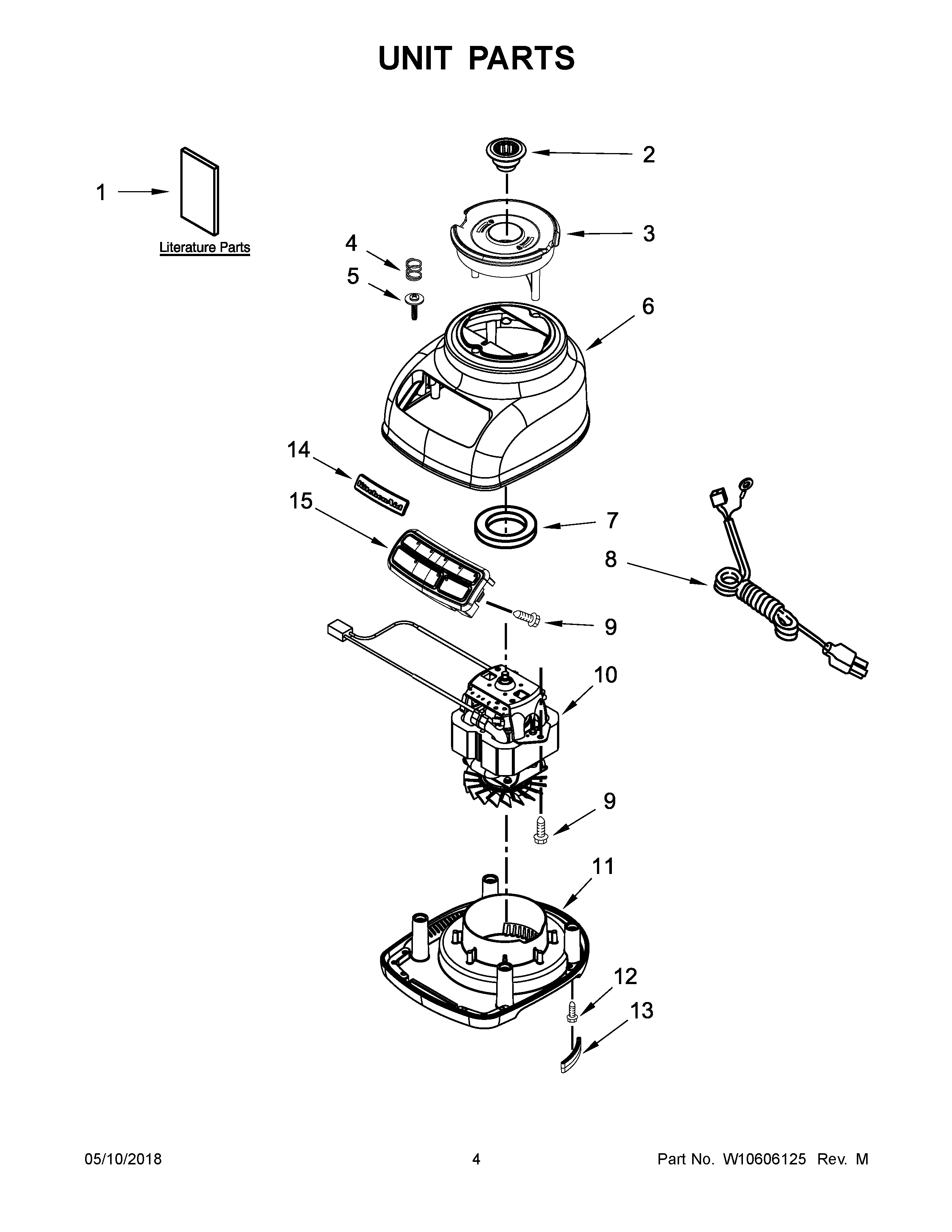

KSB1575QGC0 03 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	WPW10279256 Whirlpool Blender Drive Coupler
3	WPW10497275 Whirlpool Jar Lock Assembly
4	SPRING
5	W10859468 Whirlpool Screw
6S	HOUSING, UPPER (GLOSS CINNAMON)
6C	HOUSING, UPPER (COBALT BLUE)
6R	HOUSING, UPPER (WATERMELON)
6B	HOUSING, UPPER (EMPIRE RED)
6Q	HOUSING, UPPER (GRAPE)
6AC	HOUSING, UPPER (BIRD OF PARADISE)
6P	HOUSING, UPPER (CRANBERRY)
6D	HOUSING, UPPER (ESPRESSO)
6T	HOUSING, UPPER (AQUA SKY)
6Z	HOUSING, UPPER (MATTE GRAY)
6Y	HOUSING, UPPER (BLACK MATTE)
6X	HOUSING, UPPER (PISTACHIO MATTE)
6V	HOUSING, UPPER (BLUE STEEL)
6G	HOUSING, UPPER (MAJESTIC YELLOW)
6F	HOUSING, UPPER (METALLIC CHROME)
6U	W10676683 Whirlpool Housing
6E	W10538196 Whirlpool Housing
6AA	HOUSING, UPPER (GUAVA GLAZE)
6O	HOUSING, UPPER (BOYSENBERRY)
6A	W10538188 Whirlpool Housing
6W	HOUSING, UPPER (HOT SAUCE)
6	HOUSING, UPPER (WHITE)
6AB	HOUSING, UPPER (ICE)
6H	HOUSING, UPPER (PINK)
6I	HOUSING, UPPER (LIQUID GRAPHITE)
6J	HOUSING, UPPER (RASPBERRY ICE)
6K	HOUSING, UPPER (TANGERINE)
6L	W10538198 Whirlpool Housing
6M	HOUSING, UPPER (CONTOUR SILVER)
6N	HOUSING, UPPER (COCOA SILVER)
7	WP9709366 Whirlpool Seal
8	W11197488 Whirlpool Power Cord
9	W11164114 Whirlpool Screw
10	WPW10225872 Whirlpool Motor
11	W10497274 Whirlpool Base
12	WPW10068250 Whirlpool Dishwasher Screw
13	W11087504 Whirlpool Foot
14	W10514169 Whirlpool Nameplate
14A	NAMEPLAT
15	WPL W10514168
