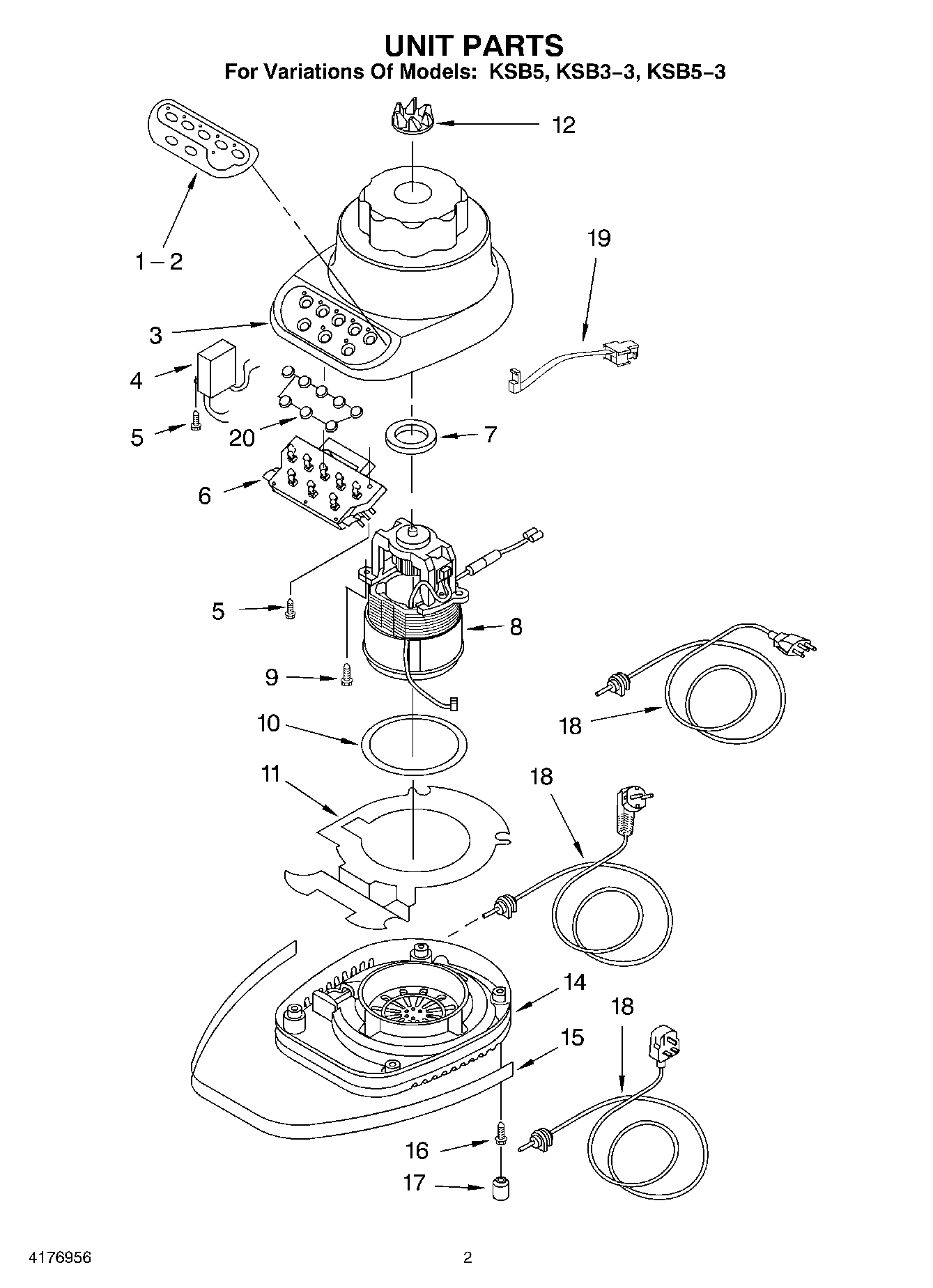

KSB3-3 01 – UNIT PARTS

Products

Position	Product
1	Overlay, Switch (5-Speed (Black))
1	Overlay, Switch (5-Speed) (Empire Red)
1	Overlay, Switch (5-Speed) (Majestic Yellow)
1	Overlay, Switch (5-Speed) (Cobalt Blue)
1	Overlay, Switch (5-Speed) (Empire Green)
1	Overlay, Switch (5-Speed) (White On White KSB5SS Model)
1	Overlay, Switch (5-Speed) (Almond Creme)
1	Overlay, Switch (5-Speed) (White)
1	Overlay, Switch
2	Overlay, Switch (3-Speed) (Biscuit)
2	Overlay, Switch (3-Speed) (White)
2	Overlay, Switch (3-Speed) (Almond Creme)
3	Housing, Upper (Imperial Gray)
3	Housing, Upper (Empire Green)
3	Housing, Upper (Cobalt Blue)
3	Housing, Upper (Almond Creme)
3	Housing, Upper (Biscuit)
3	Housing, Upper (Stain Copper)
3	Housing, Upper (Chrome)
3	Housing, Upper (Nickel)
3	Housing, Upper (Imperial Black)
3	Housing, Upper (White)
3	Housing, Upper (Majestic Yellow)
3	Housing, Upper (Empire Red)
3	Housing, Upper (Onyx Black (Also order item 12 in color that matches housing))
4	EMI Filter
5	WP489128 Whirlpool Refrigerator Screw
6	Board, Control (5-Speed 110V)
6	Board, Control (3-Speed 110V)
6	Board, Control (5-Speed 220/240V)
7	Seal, Motor
8	Motor
8	Motor (240 Volt)
9	Screw
10	O-Ring
11	Barrier, Ventilation
12	WP9704230 Whirlpool Coupling
14	Base (Empire Green)
14	Base (Onyx Black)
14	Base (Almond Creme)
14	WPL 3184542
14	WPL 3184543
14	Base (White)
14	WPL 3184545
14	Base (Cobalt Blue)
15	WPL 3184613
15	WPL 3184612
15	Band, Trim
15	WPL 9704283
15	WPL 3184611
16	Screw
17	Foot, Base
18	WPL 9705061
18	WPL 9705060
18	WPL 9704275
18	WPL 9704274
18	WPL 9704273
19	WPL 9703231
20	WPL 9704072
