KSB354OB0 01 – UNIT PARTS
Written by
in

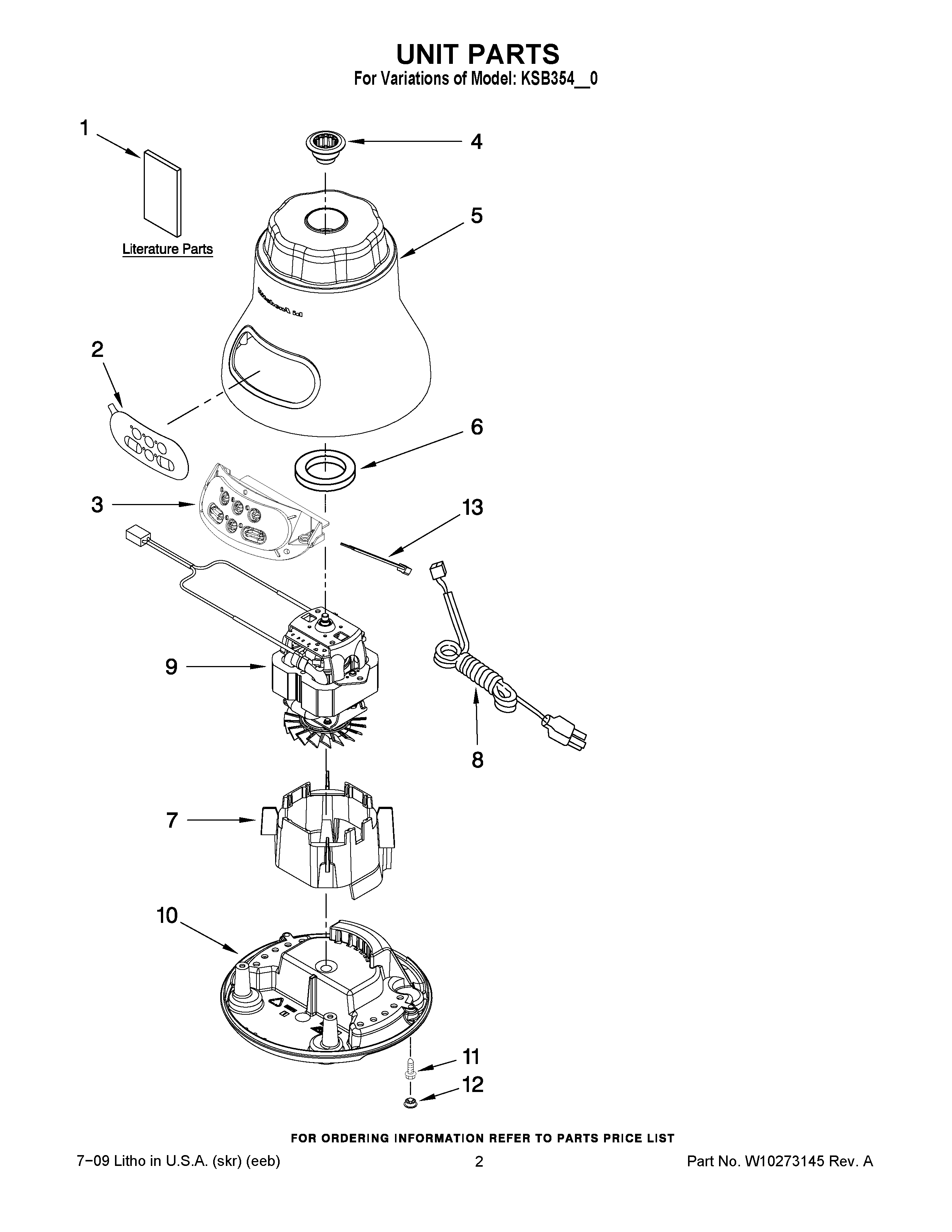

KSB354OB0 01 – UNIT PARTS
Products
Position
Product
1
REPAIR PARTS LIST
1
USE & CARE, TRILIN
2
OVERLAY, SWITCH
3
CONTROL ASSEMBLY
4
WPW10279256 Whirlpool Blender Drive Coupler
5
HOUSING, UPPER (WHITE)
5
HOUSING, UPPER (ONYX BLACK)
6
WP9709366 Whirlpool Seal
7
SHROUD, MOTOR
8
W10256444 Whirlpool Power Cord
9
MOTOR, 120V – 3SPD
10
BASE (ELEPHANT)
11
SCREW
12
WPW10524701 Whirlpool Foot Assembly
13
SENSOR, HALL EFFCT
←
