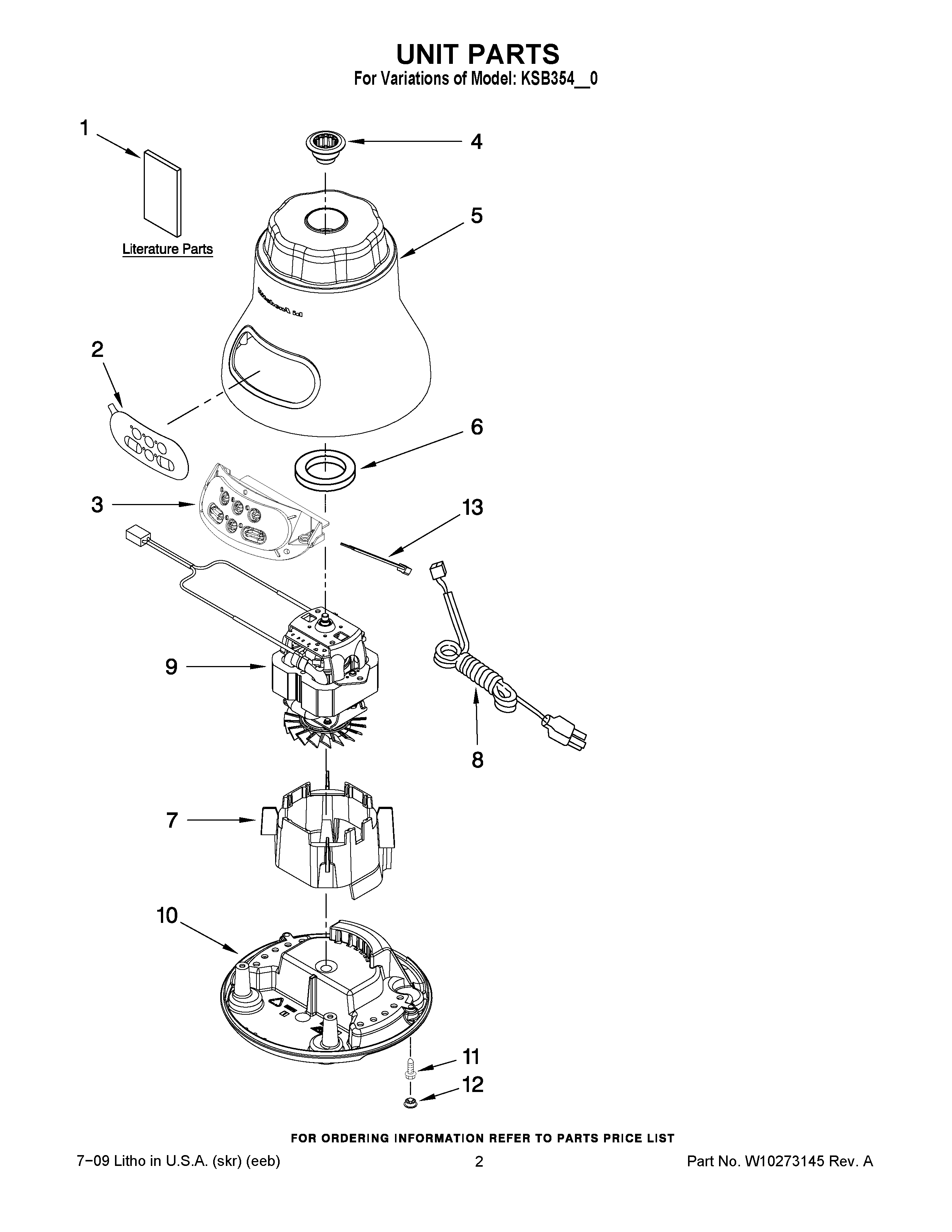

KSB354WH0 01 – UNIT PARTS

Products

Position	Product
1	REPAIR PARTS LIST
1	USE & CARE, TRILIN
2	OVERLAY, SWITCH
3	CONTROL ASSEMBLY
4	WPW10279256 Whirlpool Blender Drive Coupler
5	HOUSING, UPPER (WHITE)
5	HOUSING, UPPER (ONYX BLACK)
6	WP9709366 Whirlpool Seal
7	SHROUD, MOTOR
8	W10256444 Whirlpool Power Cord
9	MOTOR, 120V – 3SPD
10	BASE (ELEPHANT)
11	SCREW
12	WPW10524701 Whirlpool Foot Assembly
13	SENSOR, HALL EFFCT
