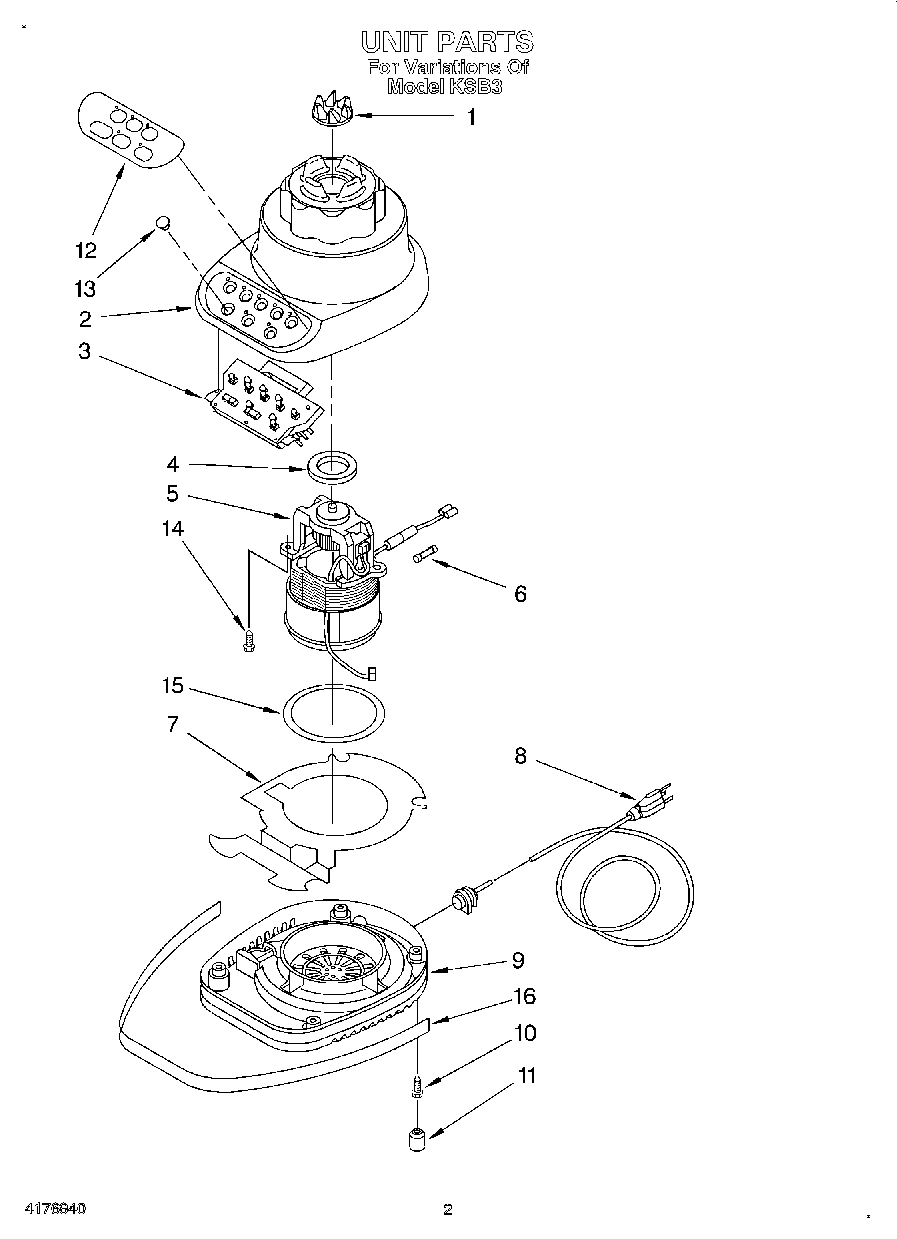

KSB3WH0 02 – SECTION

Products

Position	Product
1	Coupling, Drive
2	Housing, Upper (White)
2	Housing, Upper (Almond Creme)
3	Board, Control
4	Seal, Motor
5	Motor
6	Fuse, 250V/8A (If Needed)
7	Barrier, Ventilation
8	Cord, Power (White)
9	Base (White)
9	Base (Almond Creme)
10	Screw
11	Foot, Base
12	Overlay, Switch (3-Speed) (Almond Creme)
12	Overlay, Switch (3-Speed) (White)
13	Button, Switch
14	Screw
15	O-Ring
15	Ring, O (White)
16	WPL 3184611
