KSB4027WH0 03 – UNIT PARTS – Aparts

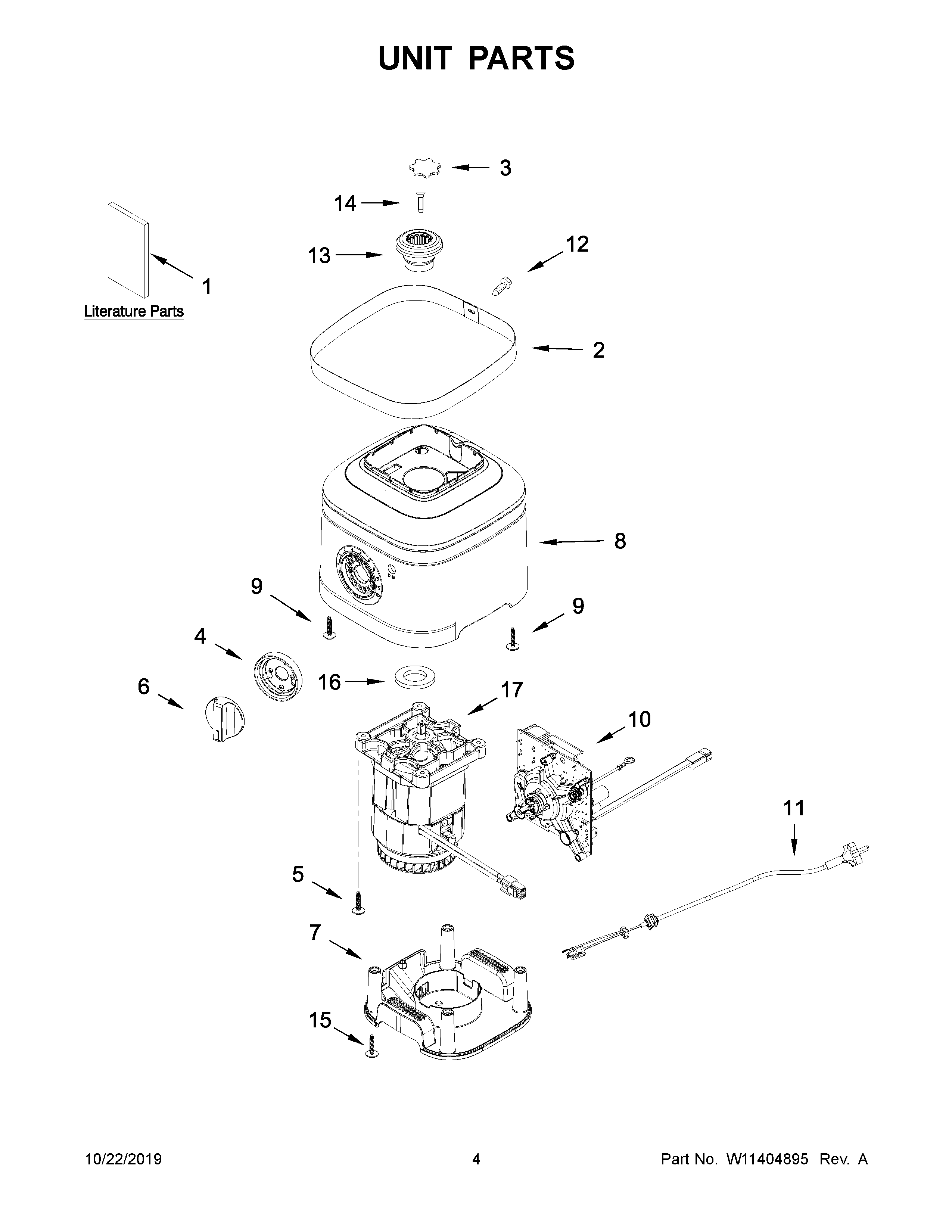

KSB4027WH0 03 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	TRIMBAND
3	W11486757 Whirlpool Coupling
4	BEZEL, ROTARY SWITCH
5	WP3395530 Whirlpool Screw
6	KNOB, ROTARY SWITCH
7	BASE
8B	UPPER BASE (MATTE FOG BLUE)
8F	UPPER BASE (WHITE)
8A	UPPER BASE (CONTOUR SILVER)
8	UPPER BASE (BLACK MATTE)
8E	UPPER BASE (PISTACHIO)
8D	UPPER BASE (PASSION RED)
8G	UPPER BASE (KYOTO GLOW)
8C	W11245952 Whirlpool Housing
9	SCREW
10	ELECTRONIC CONTROL
11	W11392823 Whirlpool Power Cord
12	W10853069 Whirlpool Screw
13	COUPLER
14	W11486756 Whirlpool Screw
15	WP3400814 Whirlpool Screw
16	W11643384 Whirlpool Ring
17	W11433014 Whirlpool Motor
