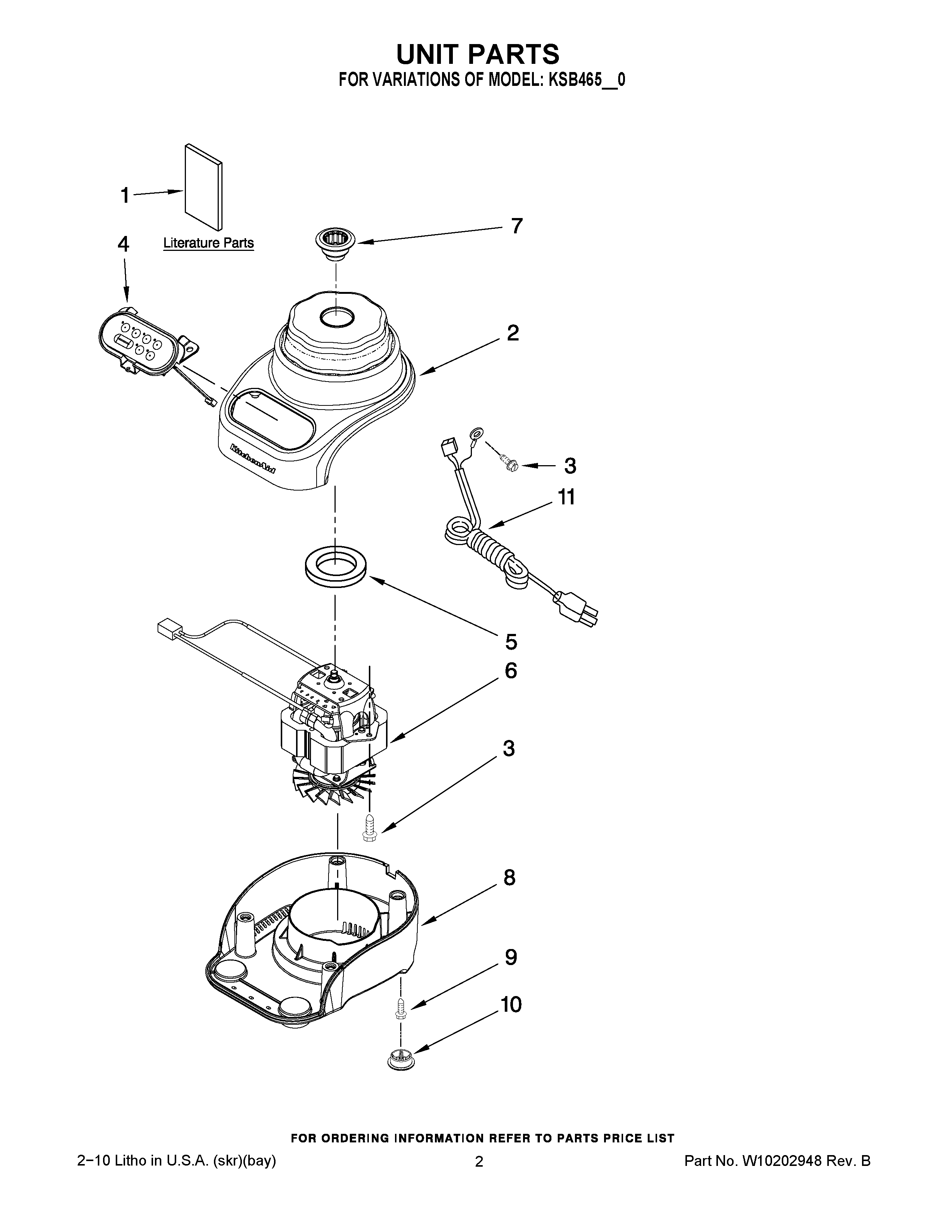

KSB465QOB0 01 – UNIT PARTS

Products

Position	Product
1	Repair Parts List
1	Use & Care, Trilin
2	HOUSING, UPPER (BLUE WILLOW)
2	Housing, Upper (Onyx Black)
2	Housing, Upper (Empire Red)
2	Housing, Upper (White)
3	WPW10068250 Whirlpool Dishwasher Screw
4	Control Assembly (Incl. Overlay) (Elephant)
4	Control Assembly (Incl. Overlay) (Charcoal)
5	WP9709366 Whirlpool Seal
6	WPW10225872 Whirlpool Motor
7	WPW10279256 Whirlpool Blender Drive Coupler
8	W10180056 Whirlpool Base Assembly
8	Base (Charcoal)
9	W11164114 Whirlpool Screw
10	WPW10524701 Whirlpool Foot Assembly
11	9708917 Whirlpool Power Cord
11	W11197488 Whirlpool Power Cord
