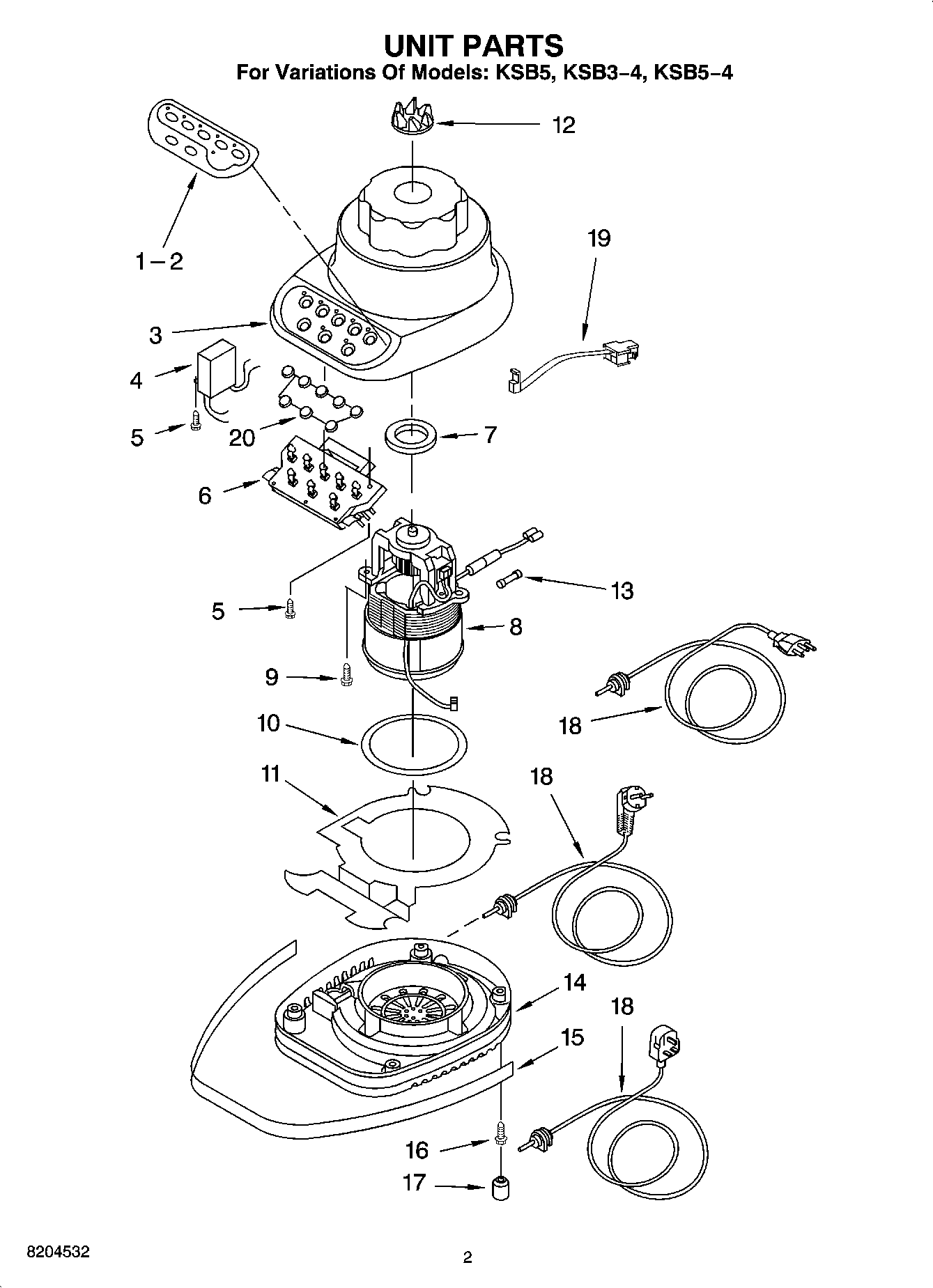

KSB5-4 01 – UNIT PARTS

KSB5-4 01 – UNIT PARTS

Written by

in

KSB5-4 01 – UNIT PARTS

Products

Position	Product
1	Overlay, Switch (5-Speed) (Cobalt Blue)
1	Overlay, Switch (5-Speed) (Tangerine)
1	Overlay, Switch (5-Speed) (Empire Red)
1	Overlay, Switch (5-Speed) (Majestic Yellow)
1	Overlay, Switch (5-Speed) (Almond Creme)
1	Overlay, Switch (5-Speed) (Empire Green)
1	Overlay, Switch (5-Speed (Black))
1	Overlay, Switch
1	Overlay, Switch (5-Speed) (White On White KSB5SS Model)
1	Overlay, Switch (5-Speed) (White)
2	Overlay, Switch (3-Speed) (White)
2	Overlay, Switch (3-Speed) (Biscuit)
3	Housing, Upper (Copper)
3	Housing, Upper (Cobalt Blue)
3	Housing, Upper (Empire Green)
3	Housing, Upper (Imperial Black)
3	Housing, Upper (Almond Creme)
3	Housing, Upper (Chrome)
3	Housing, Upper (Brushed Nickel)
3	Housing, Upper (White)
3	Housing, Upper (Imperial White)
3	Housing, Upper (Metallic Pink)
3	Housing, Upper (Onyx Black)
3	Housing, Upper (Majestic Yellow)
3	Housing, Upper (Empire Red)
3	Housing, Upper (Imperial Grey)
3	Housing, Upper (Tangerine)
3	Housing, Upper (Biscuit)
4	EMI Filter
5	WP489128 Whirlpool Refrigerator Screw
6	Board, Control
6	Board, Control
7	Seal, Motor
8	Motor
8	WP9706759 Whirlpool Motor Assembly
9	Screw
10	O-Ring
12	WP9704230 Whirlpool Coupling
13	WPL 9706721
13	Base (Almond Creme)
13	Base (Cobalt Blue)
13	Base (Imperial Grey)
13	Base (Empire Red)
13	Base (Tangerine)
13	WPL 9706725
13	Base (Majestic Yellow)
13	Base (White)
14	WPL 3184611
15	WPL 3184612
15	WPL 3184613
15	WPL 3184614
15	Band, Trim
15	WPL 9704283
15	WPL 3184617
15	WPL 9706616
17	Foot, Base
18	Power Cord (Black)
18	WPL 9706646
18	WPL 9706647
18	WPL 9707862
18	WPL 9707863
18	WPL 9707868
18	Power Cord (White)
18	Power Cord (Black)
