KSB5(DUP) 02 – SECTION
Written by
in

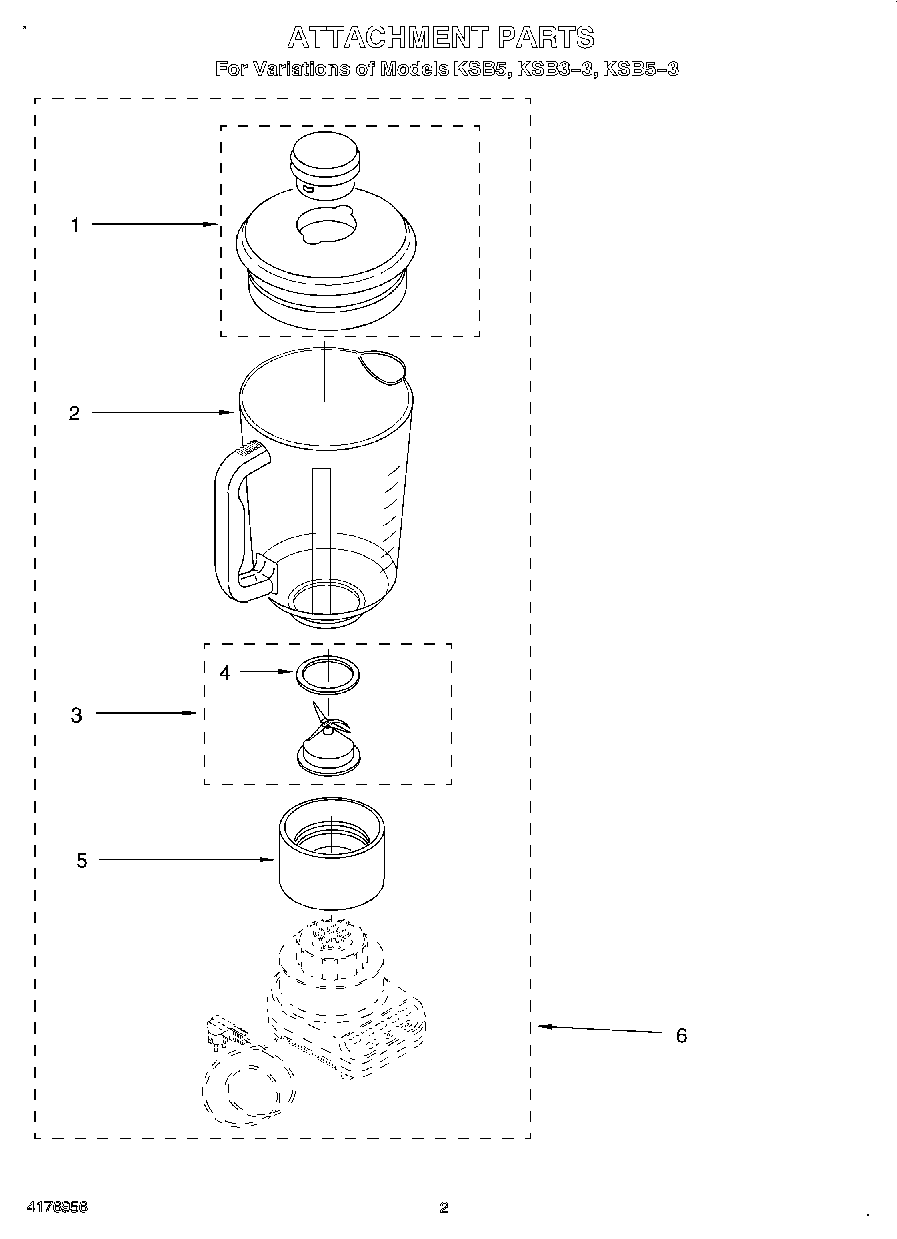

KSB5(DUP) 02 – SECTION
Products
Position
Product
Literature Parts (Repair Parts List)
WPL LIT9704294
1
Lid and Cap (White)
1
Lid and Cap (Almond Creme)
1
Lid and Cap (Onyx Black)
1
Lid and Cap (Empire Red)
1
Lid and Cap (Cobalt Blue)
1
Lid and Cap (Empire Green)
1
Lid and Cap (Majestic Yellow)
2
Jar (Clear Glass)
3
WP9704291 Whirlpool Blade Assembly
4
WP9704204 Whirlpool Seal
5
Collar (Almond Creme)
5
Collar (Majestic Yellow)
5
Collar (White)
5
Collar (Cobalt Blue)
5
WP9704253 Whirlpool Collar
5
Collar (Empire Green)
5
Collar (Empire Red)
6
Upper Assembly, Complete (White)
6
Upper Assembly, Complete (Almond Creme)
6
Upper Assembly, Complete (Majestic Yellow)
6
Upper Assembly, Complete (Empire Green)
6
Upper Assembly, Complete (Empire Red)
6
Upper Assembly, Complete (Onyx Black)
6
Upper Assembly, Complete (Cobalt Blue)
←
