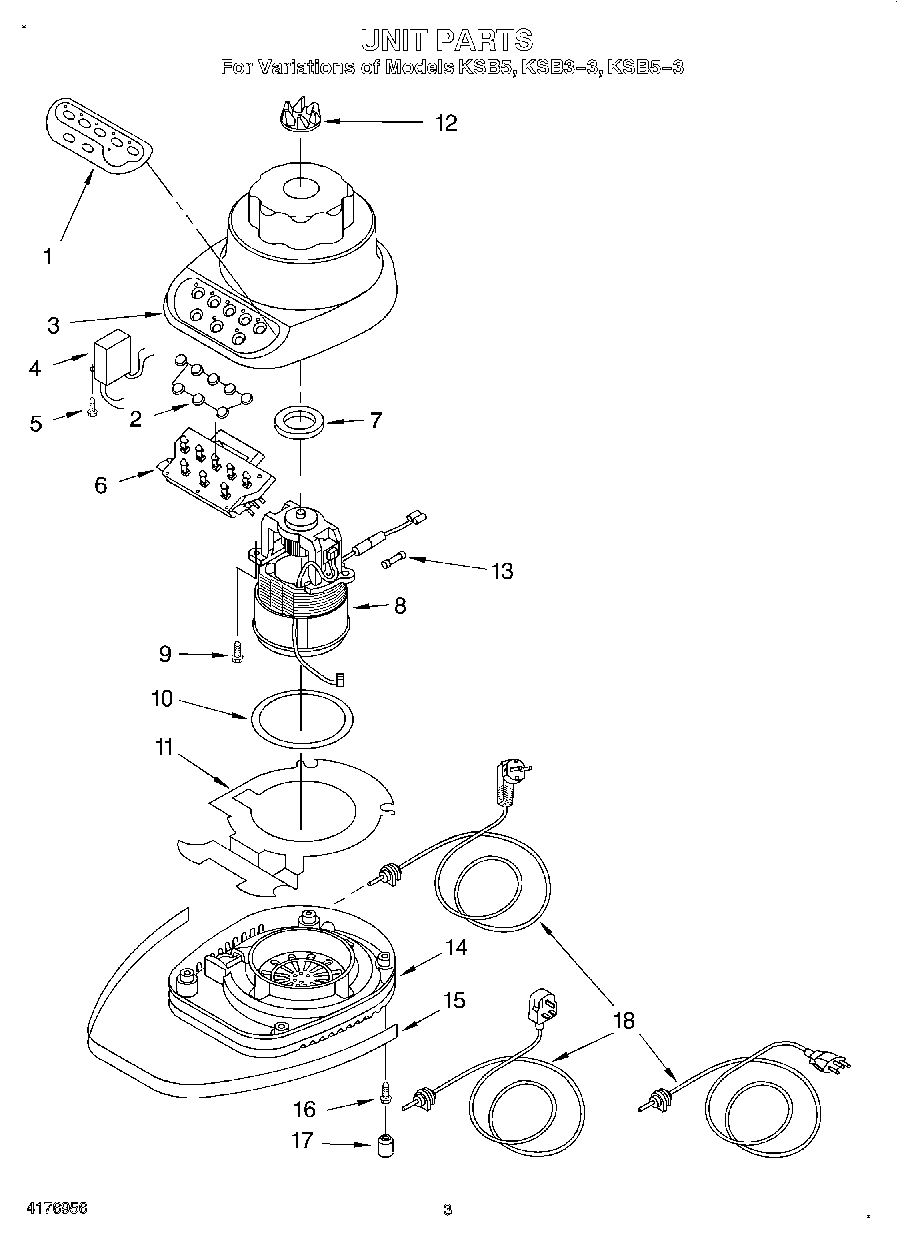

KSB5(DUP) 03 – SECTION

Products

PositionProduct
1Overlay, Switch
1Overlay, Switch (3-Speed) (White)
2WPL 9704072
3Housing, Upper (Empire Green)
3Housing, Upper (Cobalt Blue)
3Housing, Upper (Almond Creme)
3Housing, Upper (White)
3Housing, Upper (Chrome)
3Housing, Upper (Majestic Yellow)
3Housing, Upper (Empire Red)
4EMI Filter
6Board, Control (5-Speed 220/240V)
6Board, Control (3-Speed 110V)
6Board, Control (5-Speed 110V)
7Seal, Motor
8Motor (240 Volt)
8Motor
9Screw
10O-Ring
11Barrier, Ventilation
12WP9704230 Whirlpool Coupling
13Fuse, 250V/8A (If Needed)
14WPL 3184543
14WPL 3184542
14Base (Almond Creme)
14Base (White)
14Base (Cobalt Blue)
14Base (Empire Green)
14Base (Onyx Black)
15WPL 3184611
15WPL 3184613
15WPL 3184612
15Band, Trim
16WPL 4176022
17Foot, Base
18WPL 9704273
18WPL 9704275
18WPL 9705060
18WPL 9705061
18WPL 9704274
